Mix Cap Sequin Boring Cording Bead Embroidery Machine Price
is single head computerized embroidery machine with 12/15 needles, which is suitable for flat embroidery, cap embroidery, T-shirt embroidery and finished garments embroidery, with optional device like:sequin, taping, boring and cording device.Standard model:360*510mm
Big Embroidery Area: 360*1200mm
Customized New Model: 500*1200mm
Main Features:
Suitable for flat embroidery, cap embroidery
Finished garments embroidery
Automatic thread trimmer
Maximum speed 1200 SPM
270°wide cap frame unit
Color LCD display showing real time stitching
USB input port
Automatic color change
Thread break detection
Pre-sew design trace capable
Memory size 2, 000, 000 stitches
Emergency stop
Servo motor 150W
Electricity: 110V/60Hz or 220V/50Hz available
Machine Size: 75X74X85CM

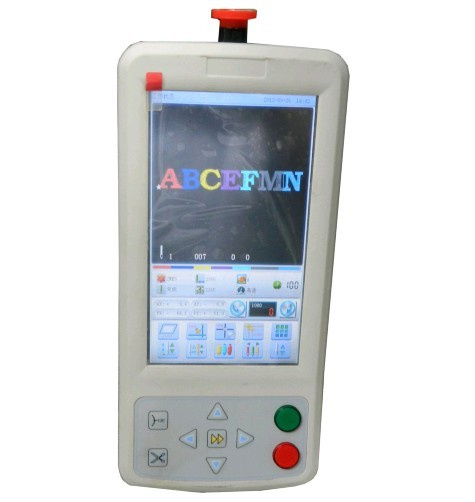

Control Panel Functions:
Color LCD display showing real time stitching
Start, Stop, and emergency Stop
Function keys including Menu, Speed up and Slow down
(also Page Up and Page Down), Help, USB Input,
Dot Key to return to 100 degrees, Parameter Settings, Clear, ESC, Enter, etc.
Numeric keys for selection of needles
Embroidery Status
Manual Trimming
On-board lettering
Manual Color Change
Multi languages available
Frame-moving keys
Frames / Hoops Included:
2 x Round Hoop 9 cm (3.5")
2 x Round Hoop 12 cm (4.7")
2 x Round Hoop 15 cm (5.9")
2 x Round Hoop 20 cm (9")
2 x Square Hoop 29 x 29 cm (12" x 12")
1 x Oval hoop 54 x 36 cm (21" x 14")
Cap Attachment Included
Accessories Included:
Table and stand with wheels for easy moving around, 70 x 70 x 78 cm or 27.50" x 27.50" x 30.50" with the net weight of 38 kilograms Operation Manual Tool Kit
Optional Device:
Sequin device
Cording device
Robot Frame
8 in 1 device
Belt hoop
Boring device
Laser positioning device
Single Head 12 Colors // 15 Colors
Working Area is 360*510mm
Also 360*1200mm
Speed is 1200 stitches per minute
For cap embroidery / flat embroidery / finished garments embroidery /logo embroidery.
Send Us an Email and We Will Show You Machine Working Videos.
5 Year Limited Warranty
Warranty doesn't cover shipping or travel expenses.
WARRANTY PERIOD
Wonyo Embroidery Machines limited warranty applies for the period specified below. The warranty period begins on the date of shipment as indicated on the packing slip or invoice.
1 Year coverage on all parts Warranty doesn't cover shipping expenses. All machines are repaired on WONYO Embroidery Machines facility only.
2 Year coverage on all electrical components such as Wiring Harnesses/Cables, Motors, Solenoids, Switches, Sensors, Rotary Encoders, Fans, Transformers, Light Fixtures, Circuit Boards/Cards, Controller, Rotary Encoders, and Potentiometers. Customer is responsible for shipping charges...
5 year coverage on Drive Train Components including Bushings, Bearings, Cams, Gears, Pulleys, Sprockets, Belts, Chains, Shafts, Drive Cables, and Frame Drive Rails. Customer is responsible for shipping charges.
Models:
| Model | Needles | Head | Net.Weight | Embroidery Area | Overall Size |
| WY1201CS/WY1501CS | 12/15 | 1 | 150kg | 360*510mm | 745*870*840mm |
| WY1201CSL/WY1501CSL | 12/15 | 1 | 350kg | 360*1200mm | 745*870*840mm |
Optional Devices:
Single Sequin Device:
install on both side of the head
(first needle or end needle) | Simple Coiling/cording device:
install on both side of the head
(first needle or end needle) |
Eight in one device:
install on hoop frames
(embroidery on pocket, sock, ect) | Simple Taping Device:
install on both side of the head
(first needle or end needle) |
Boring Device:
install on each needle | Laser position device:
install on all single head machine |
Please contact us for more videos of the machine's working!
sales contact: Nicki Wang
