Prod Model: |
WY1202C |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Width: |
400*450mm |
Format: |
Dst / Dsb |
Computerized Opeartion: |
Yes |
Automatic Thread Trimmer: |
Yes |
Automatic Color Change: |
Yes |
Language: |
Support 12 Kinds |
Package: |
Wooden Case or Carton Case Pakcage |
Machine Wararnty: |
24 Months |
Delivery: |
Sea Shipping or Buy Air |
Payment: |
Fob Port T/T |
Certification: |
ISO9001: 2000 |
Condition: |
New |
Product Description

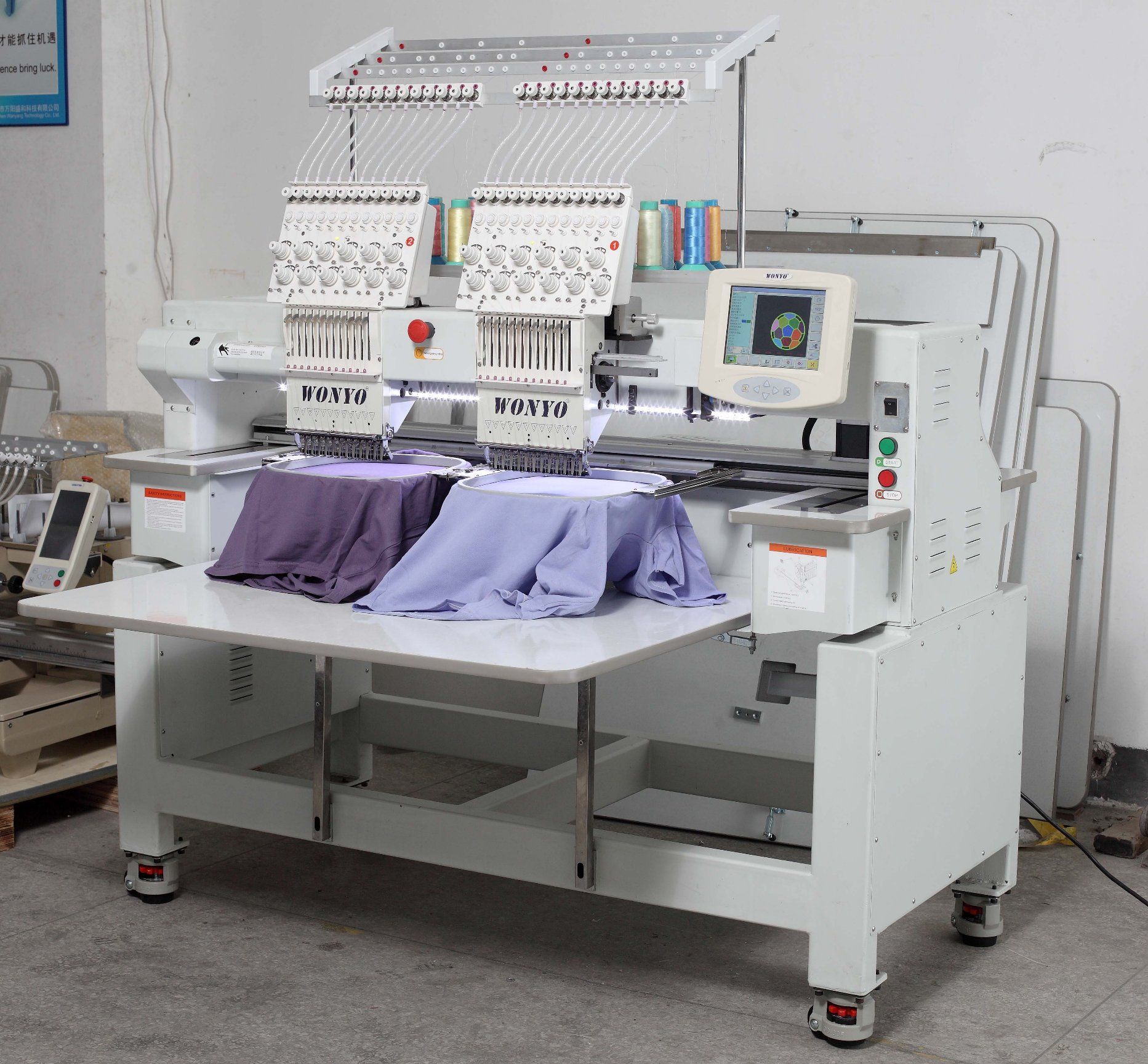

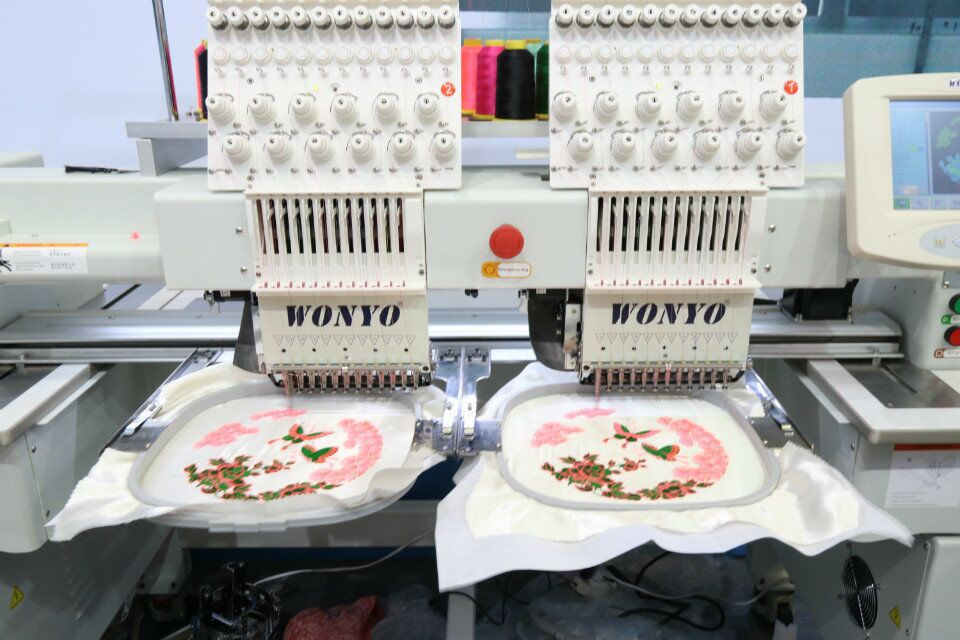

Multi function 2 Head Commercial flat,cap mixed Embroidery Machines
WY-1202C
Wonyo computerized embroidery machine Suitable for cap, finished garments, jeans, belt, shoes, socks, insoles, bead, sequin, cording, boring, 3D, flat,logo embroidery.

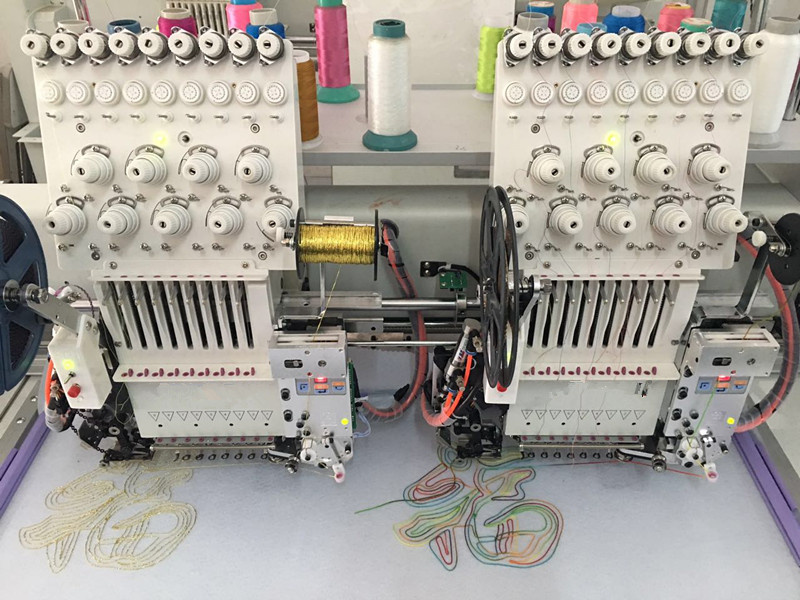

12 needles(optional 9 needles),computer control system Topwisdom 8/10 touch sreen.Japanese Rotary Hook, Groz-Beckert Needles, Italy Brand Belt.est. Optional sequin device,cording device,taping device,boring device,eight in one device,laser position device. Model | Needle | Head | N.w G.w | Emb.area | Meas Outer CBM |
WY1201CS/WY1501CS | 12/15 | 1 | 120kg 138kg | 360*510mm | 750*740*850mm 840*830*930mm 0.648CBM |
WY1201CL/WY1501CL | 12/15 | 1 | 201kg 238kg | 360*1200mm | 1490*980*1000mm 1580*1030*1090mm 1.774CBM |
WY1202CS/WY902CS | 12/9 | 2 | 390KG 429KG | 400*450MM | 1520*970*1400mm 1710*1060*1470mm 2.665CBM |
WY1204CS/WY904CS | 12/9 | 4 | 720KG 900KG | 400*450MM | 2700*1140*1660mm 5.110CBM |
WY1206CS/WY906CS | 12/9 | 6 | 1100KG 1210KG | 400*450MM | 3438*1160*1500mm 3460*1200*1670mm 6.934CBM |
WY1208CS/WY908CS | 12/9 | 8 | 1200KG 1335KG | 400*450MM | 4238*1090*1500mm 4510*1130*1670mm 8.511CBM |
WY1212CS/WY912CS | 12/9 | 12 | 1800KG 1960KG | 400*450MM | 5838*1490*1610MM 6000*1500*1680MM 15.120CBM |
Stype:
1.flat Embroidery machine
2.High Speed embroidery machine
3.cap embroidery machine
4.knitting machine
5.Sequin embroidery machine
6.Cording embroidery machine
7.sewing machine parts
8.computerized embroidery machine
9.tajima/barudan style embroidery machineFeatures:
A. Suitable for flat, cap and finished garments embroidery
B. Embroidery area: 400 x 450 mm
C. Maximum speed 850 SPM
D. 270° Wide cap frame unit
E. Automatic thread trimmer
F. Auto color change
G. Thread break detection
H. Pre-Sew Design Trace capable
I. Electricity: 110V/60Hz or 220V/50Hz available
J. Start, Stop, and Emergency Stop
K. Machine with hand rings in two sides for loading easily
L. Start, stop switches installed in right place, higher than last model, more easy for operation.

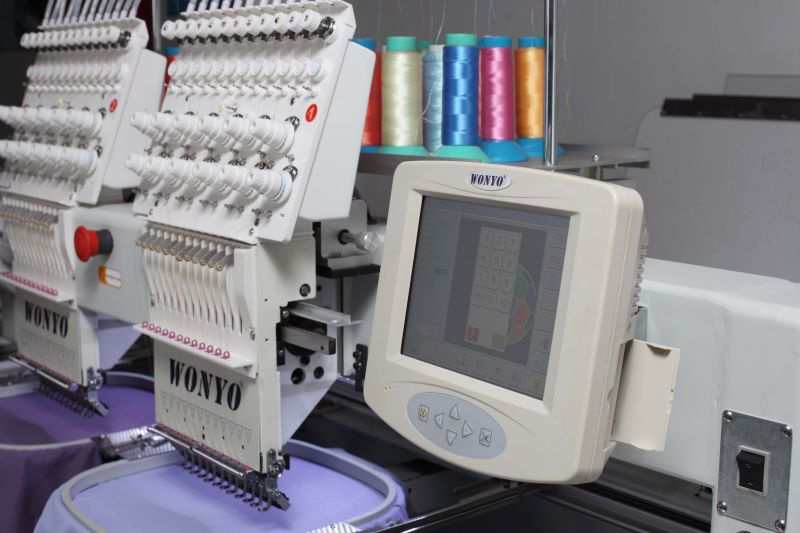

M. New structure in two sides of machine makes whole machine more steady and stable.Control panel: 1 | Color LCD display showing real time stitching |
2 | Manual Color Change |
3 | Function keys including Menu, Speed up and slow |
4 | Multi languages available |
5 | DOT Key to return to 100 degrees, Parameter Settings, Clear, ESC, Enter, etc |
6 | On-board lettering 11. Numeric keys for selection of needles |
7 | Frame-moving keys |
8 | Manual Trimming |
9 | Start, Stop, and emergency Stop |
10 | Embroidery Status down (Page Up and Page Down), USB Input |

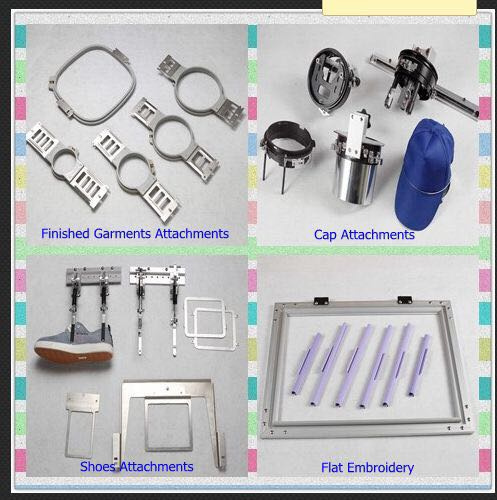

Frames: 1 | 2 x Shirt Front Round Hoop 9 cm (3.5" ) |
2 | 2 x Shirt Front Round Hoop 23 cm (9" ) |
3 | 2 x Shirt Front Round Hoop 12 cm (4.7" ) |
4 | 2 x Jacket Back Square Hoop 30 x 30 cm (12" x 12" ) |
5 | 2 x Shirt Front Round Hoop 15 cm (5.9" ) |
6 | 1 x Sash Frame 56 x 38 cm (22" x 15" ) |
Other Attachment:1. Table and stander with wheels 2. Extended Table Top 3. Operation Manual 4. Tool Kit
Delivery:We will arrange production of the machine affter received the 30% down payment.production takes around 7-20days .EXW /FOB /CIF /CFR are available on our side.
packing:
The normal package is wooden box but it is ok to pack it according to customer special request. Our Service1.Our Engineers are available to serve overseas
2.Warranty: 24months for whole machine, 36 months free upgrade for control system.
3.Train1or2 engineers for customer for free ,but the traveling expenses (tickets for arrive and depart) should on customer;
4.During the warranty period, such as machine failure is a quality problem ,free maintenance.
The service does not include human or environmental factors, customers fault and supplies section.
5.All charge should be taken by customers for on-the-spot service after exceeding warranty period.
