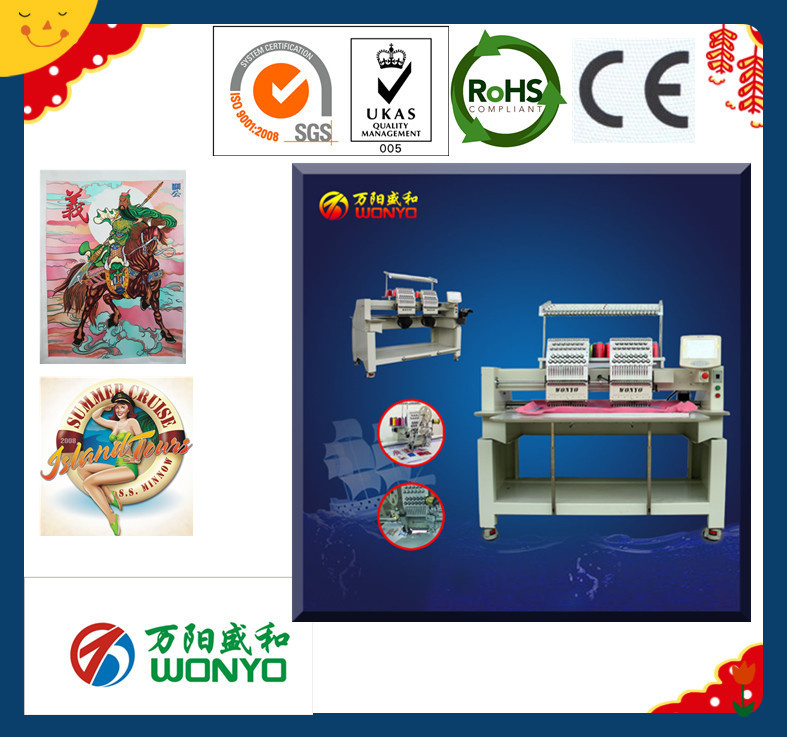

Multi Head Embroidery machine of 2 head embroidery machine
Product Description
I. Main features of the embroidery machine
1. Suitable for flat bed embroidery, cap embroidery and finished garments embroidery
2. Embroidery area: 400 X 450 mm, or 15.7" X 17.7"
3. Automatic thread trimmer
4. Maximum speed 1000 SPM
5.270° Wide cap frame unit
6. Color LCD display showing real time stitching
7. USB port ready
8. Auto color change
9. Thread break detection
10. Pre-Sew Design Trace capable
11. Memory size: 1, 000, 000 stitches
12. Electricity: 110V/60Hz or 220V/50Hz available
13. Start, Stop, and Emergency Stop
14. On-board lettering
II. Full coler control panel
1. 8" High Definition color LCD display showing real time stitching
2. Function keys including Menu, Speed up and slow down (also Page Up and Page Down), Help, USB-Input, Parameter Settings, Clear, ESC, Enter, etc.
3. Numeric keys for selection of needles
4. Frame-moving keys
5. Manual Trimming
6. Manual Color Change
7. Embroidery Status
8. Embroidery Method
9. DOT Key to return to 100 degrees
10. Mutli languages available

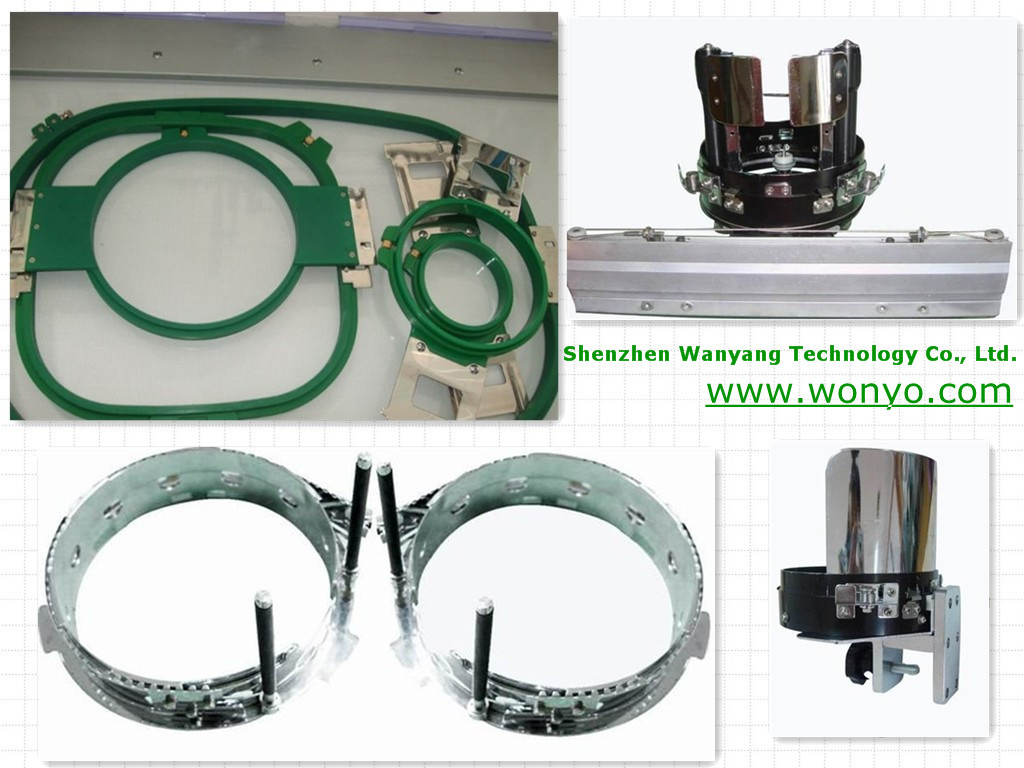

III. Frames/hoops(green)
1 Sash Frame: 40.5cm X 48cm (16" X 19") for single head, 81cm X 48cm (32" X 19") for 2 head etc.
2 sets of back hoops for 30cm X 30cm (11.80" X 11.80") for each head
2 sets of front hoops of 19cm (7.50") for each head
2 sets of front hoops of 15cm (5.90") for each head
2 sets of front hoops of 12cm (4.70") for each head
2 sets of front hoops of 9cm (3.50") for each head
About us
Shenzhen Wanyang Technology Co., Ltd., is an advanced Scientific and Technological Manufacturer with R & D, manufacturing and sales. Lactated in high-tech enterprise gathering Park, High-tech Industrial Park, Shenzhen.
WanYang dedicated in laser cutting equipment, laser marking equipment, multi-function sewing embroidery machine, automatic soldering robots, automated dispensing robots etc.
Warranty, Service and Lifetime Support 1# in the industry!
WanYang insists exploration, innovation and sustained value creation concept, providing top quality products and perfect service from production& processing solutions to comprehensive pre-sales, sales, after-sales support and services for customers all over the world
| NEEDLES | HEAD | EMBROIDERY SPACE(L*W) | HEAD INTERVAL(mm) | LENGTH(mm) | WIDTH(mm) | HEIGHT(mm) | WEIGHT(kg) |
| 6\9\12 | 2 | 400*450 | 400 | 1520 | 900 | 1530 | 350 |
| 6\9\12 | 4 | 400*450 | 400 | 2620 | 900 | 1500 | 600 |
| 6\9\12 | 6 | 400*450 | 400 | 4250 | 900 | 1500 | 950 |
| 6\9\12 | 8 | 400*450 | 400 | 5050 | 900 | 1500 | 1200 |
