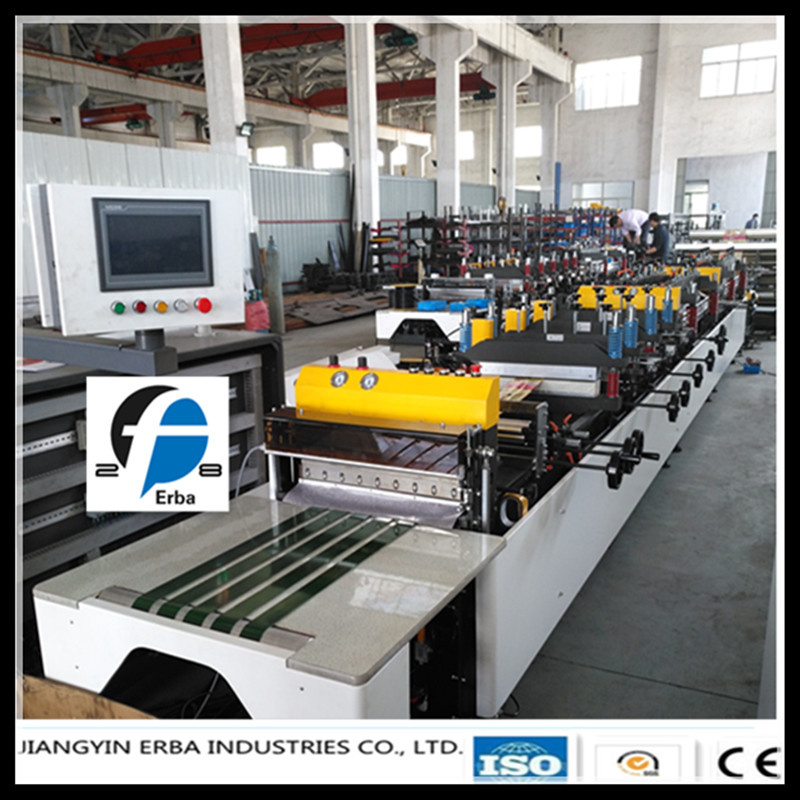

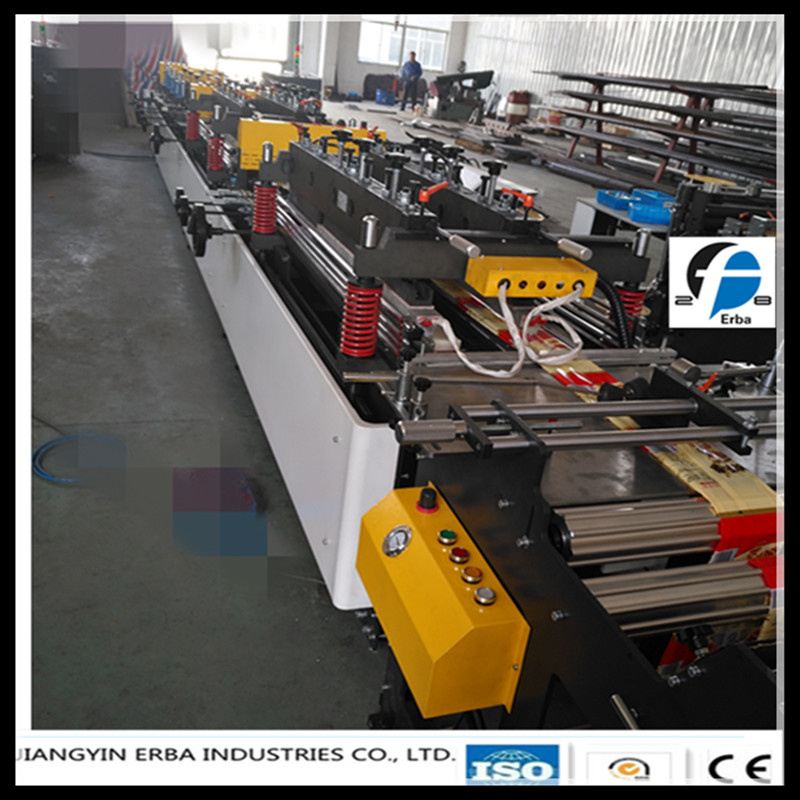

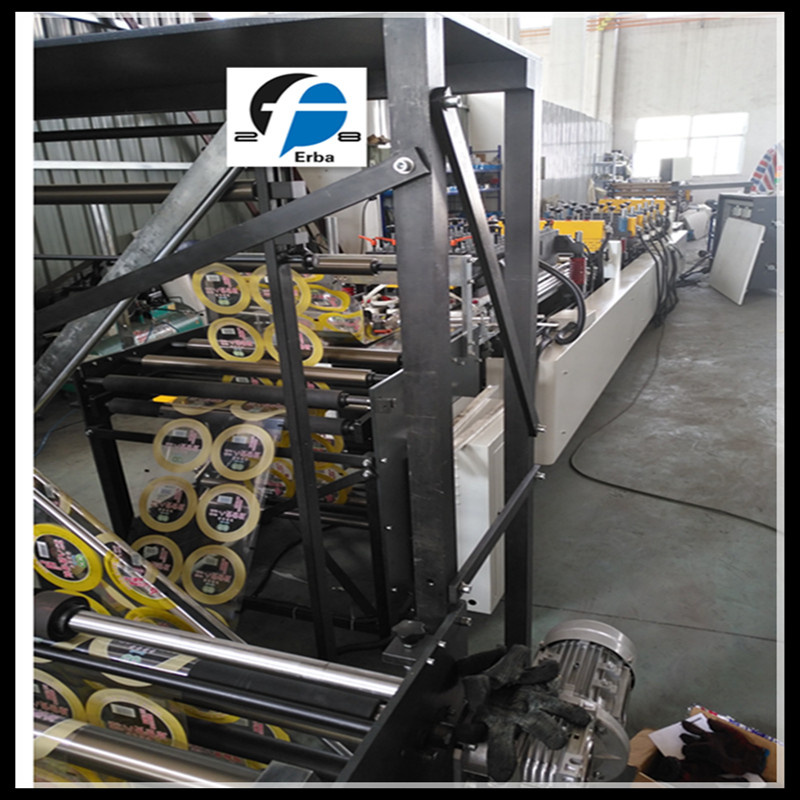

Multifunction Three Side Sealing Bag Making Machine with Zipper

Multifunction Three Side Sealing Bag Making Machine with Zipper
Price: US $ 25000-70000set
Min Order: 1set
Pay Type: L/C,T/T,Western Union
Prod Model: FSD
Suitable Material: Laminated Films
Color: White,Gree,Blue,Orange,etc.
OEM: Available
Machine Type: Bag Forming Machine
Computerized: Computerized
Type: Plastic Bag Making Machine
Voltage: 220V,380V
Seals Mode: Center Seal,Side Seal,Bottom Seal,,K Seal
Sealing & Cutting: Cold Sealing and Cutting

Product Description

Product Description
Use:

It is an ideal Erba Bag making machine to producing three-side sealing bags, stand up pouch, zipper bag, stand up pouch with zipper, with 3 servo motor. Material: Laminated Film As; LDPE, CPP, MCPP, AL, NYLON, PP etc.

Featrues:

1. Whole machine controlled by central PLC control system with touch screen. More stable performance, easy for operation and maintenance. Chinese and English interface language can be changed easily.
2. Constant auto-tension control for unwinding, EPC edge alignment, AC inverter constant speed auto material feeding.
3. Imported double servo-motor material traction control system
4. Main motor for up-down sealing and pressing equipped with inverter.
5. PID for sealing bar temperature adjustment, no touch auto control, centralized setting in man-machine interface.
6. Equipped with Pneumatic multi-function auto punching device, trim cutting and auto rewinding and static eliminator
7. Temperature adjustment range: 0~300ºC
8. Counter: quantity, batch accumulation, pre-set available.
9. Operation Method: by length fixation control and/or by photocell tracking control.
10. Punching device: working rhythm can pre-set as continuous, interval or stop, punching time can be pre-set.
11. Material Skip Feeding: 1-6 times available.
12. Batch Conveying Function available, the quantity of batch can be pre-set.

Main Parameters:

1Produced Bag Type3-side sealing, stand up pouch, zipper bag, stand-up zipper pouch
2Unwinder Max.SizeWidth Max=1250mm, Diameter Max=600mm
3Material TypeLaminated Film As; LDPE, CPP, MCPP, AL, NYLON, PP etc.
4Bag SizeMax. Length 400mm ( more than 400mm, multiple Infeed 6 times )Max.Width 600mm
5Machine Speed1180cpm
6Unwind Line Speed≤ 40 m/min
7Main Motor3.5 KW (Taiwan, with inverter Japan Yaskawa)
8Infeed Drive & MotorFront Infeed 1kw AC Servo (MITSUBISHI)
Middle Infeed 1.5kw Ac Servo(MITSUBISHI)
Back Infeed 1kw AC Servo (MITSUBISHI )
9Model of Control System:Panasonic PLC (Made in Japan) high speed bag making control system.
10Temperature ControlPC Control 24 set. ± 2ºC
11Temperature control range:environmental temperature to 300ºC
12Horizontal Heater3 units, heating up and down, 640mm
13Horizontal Cooling2 units, cooling, 640mm
14Vertical Heater5 units, 800mm
15Vertical Cooling5 units, 400mm
16Zipper heating2 units, 640mm
17Zipper cooling2 units, 330mm

Laminated pouch samples we can produce:
1) Self-standing bag-in-box wine bag, with tapping vlave on-line
2) flat bottom pouch with/without zipper.
3) Stand up pouch zipper pouch
4) Single-web stand up zipper pouch
5) Zipper pouch
6) Three side sealing pouch, central sealing pouch, side sealing pouch
7) Four side sealing pouch
8) Aluminum foil pouch


Bag making machine workshop :



Jiangyin Erba Industries Co., Ltd. Locates in Jiangsu province, China, specialized in design, production, sales and assebling of the pringting packaging machinery(printing machine, laminating machine, slitting machine, bag-making machine, single-sided and double-sided coated iron production line) and machine parts (e. g. Industrial conveyor belt for difficult lines) as well as the related products such as other machines and rubber products.

We initially starts slitter and bag-making machine in 1998, then introduced printing technique in 2000, developed laminator then.

In accordance with the machinery lines, we starts our machine parts-rubber items production from 2001, main products are: Conveyor belt(transmission belt) for different industries, silicone rubber sheet for solar laminator, glass industry, woodworking industry and cushion card making industry, rubber rabic, roller covering for textile machinery.

With our printing machine and laminating machine, we cooperate develop PVC flooring production line in 2005, currently have sports flooring for different courts and competition, commercial flooring for kindergarton and school, office, hospital and medical center, dancing center, laboratory and musem, factories, supermarket, transportation, sub-way public places, home used LVT &WPC,

Lately, gym center is very popular in China, developed new 3D printing techniques and 360 private training flooring, we supply sports equipment and gym flooring to meet different people' requirement.

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. We're pleased to get your Inquiry and we will come back to as soon as possible.
