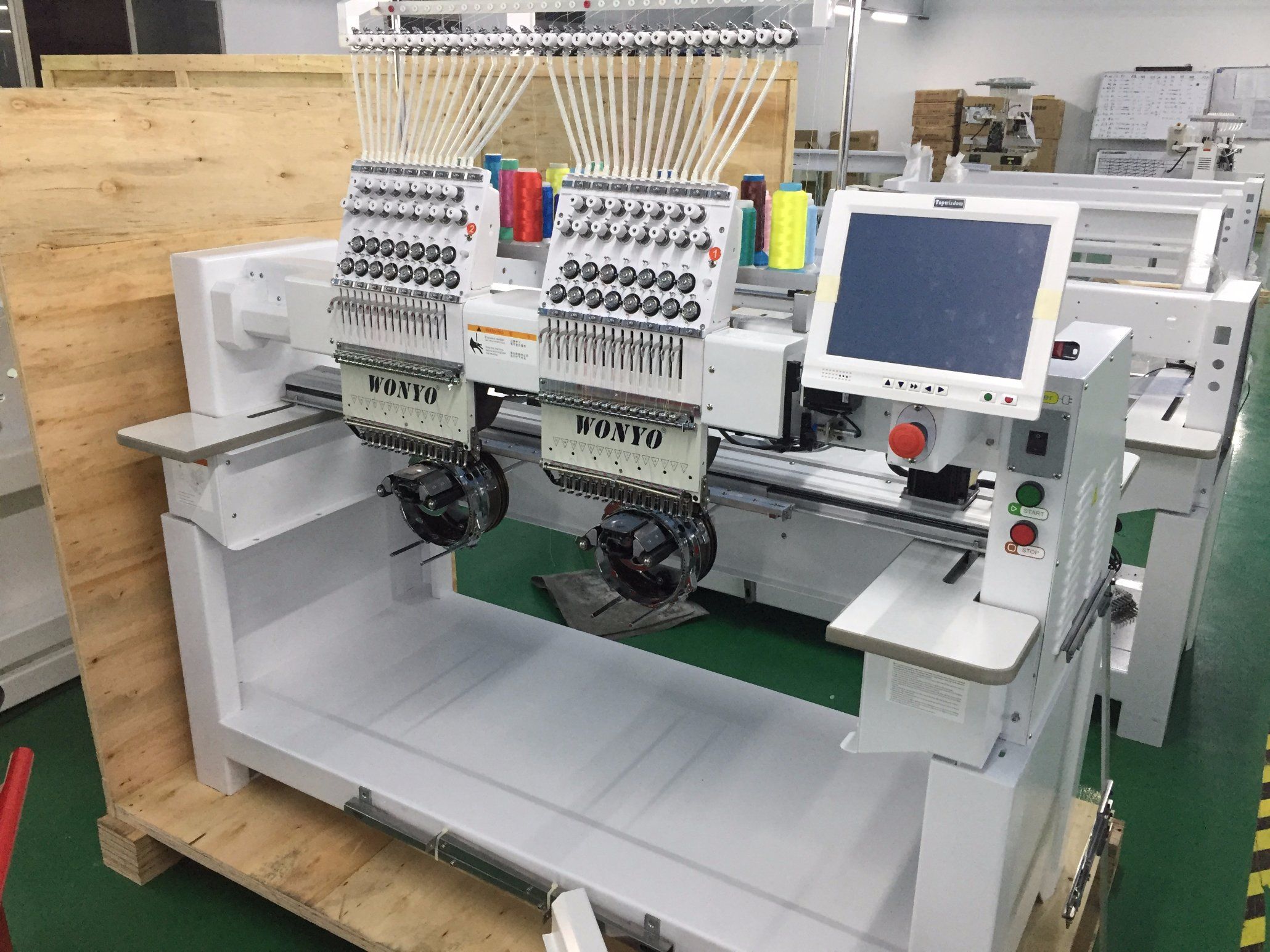

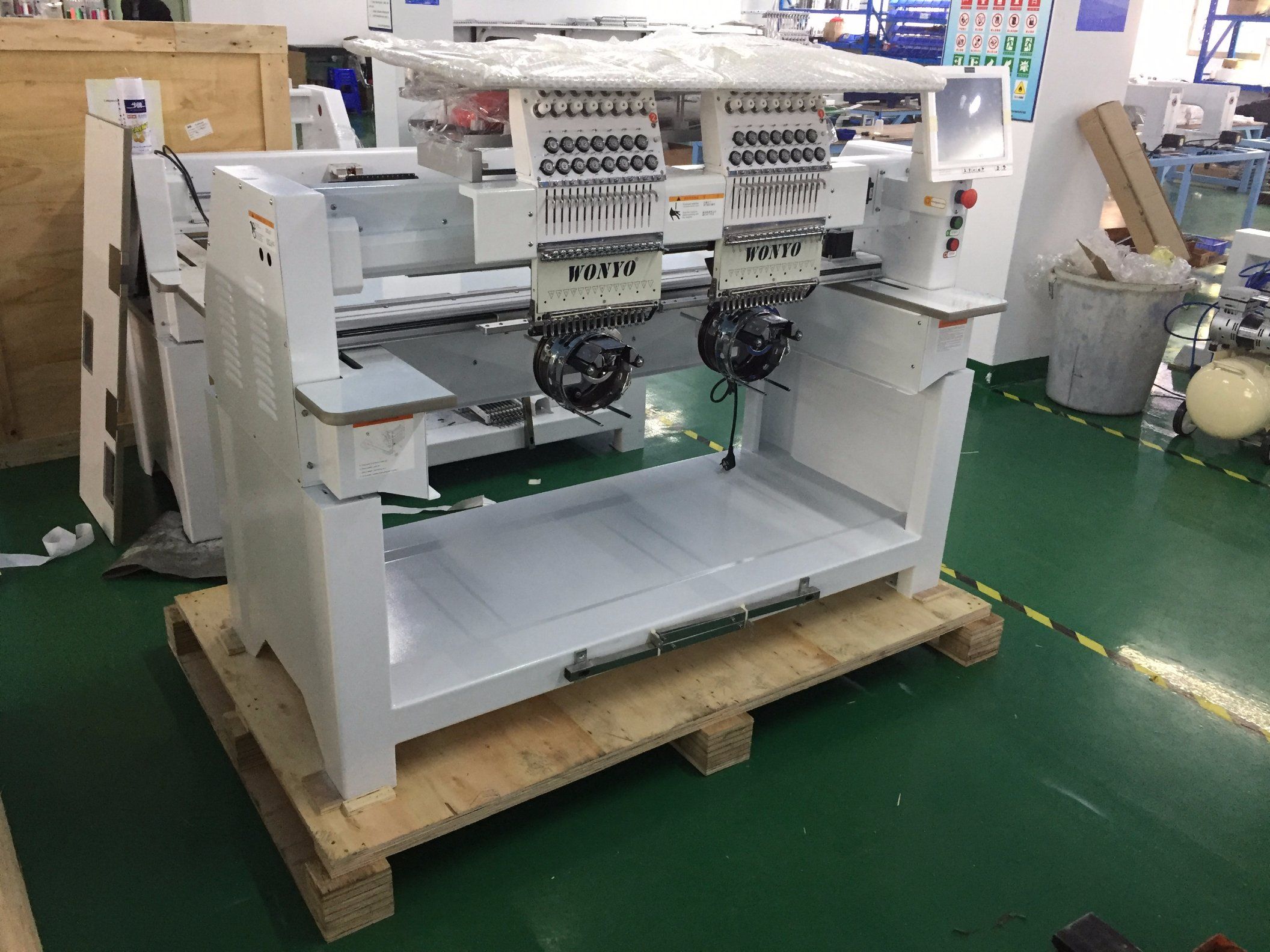

New Computerized Embroidery Machines with 10 Inches Touch Screen Computer Wy1502CH

I. Main features of the embroidery machine
1.12 needles, 2 heads, suitable for flat bed embroidery, cap
Embroidery and finished garments embroidery
2. Embroidery area: 400 x 450 mm, or 15.7" x 17.7"
3. Automatic thread trimmer
4. Maximum speed 850 SPM
5.270° Wide cap frame unit
6.5" color LCD display showing real time stitching
7. USB port ready
8. Auto color change
9. Thread break detection
10. Pre-Sew Design Trace capable
11. Memory size: 1, 000, 000 stitches
12. Electricity: 110V/60Hz or 220V/50Hz available
13. Start, Stop, and Emergency Stop
14. On-board lettering

II. Full coler control panel
1.5" High Definition color LCD display showing real time stitching
2. Function keys including Menu, Speed up and slow
Down (also Page Up and Page Down), Help, USB-
Input, Parameter Settings, Clear, ESC, Enter, etc.
3. Numeric keys for selection of needles
4. Frame-moving keys
5. Manual Trimming
6. Manual Color Change
7. Embroidery Status
8. Embroidery Method
9. DOT Key to return to 100 degrees
10. Mutli languages available

III. Frames/hoops
1 Sash Frame: 40.5cm x 48cm (16" x 19") for single head, 81cm x 48cm (32" x 19") for 2 head
2 sets of back hoops for 30cm x 30cm (11.80" x 11.80") for each head
2 sets of front hoops of 19cm (7.50") for each head
2 sets of front hoops of 15cm (5.90") for each head
2 sets of front hoops of 12cm (4.70") for each head
2 sets of front hoops of 9cm (3.50") for each head

Optional Function
1. Sequin device, cording device, boring device
2.8 in 1 device

NEEDLES	HEAD	EMBROIDERY SPACE(L*W)	HEAD INTERVAL(mm)	LENGTH(mm)	WIDTH(mm)	HEIGHT(mm)	WEIGHT(kg)
6\9\12	2	400*450	400	1520	900	1530	350
6\9\12	4	400*450	400	2620	900	1500	600
6\9\12	6	400*450	400	4250	900	1500	950
6\9\12	8	400*450	400	5050	900	1500	1200

NEEDLES			HEAD	EMBROIDERY SPACE(L*W)	HEAD INTERVAL	LENGTH(mm)	WIDTH(mm)	HEIGHT(mm)	WEIGHT(kg)
6\12\15			2	400*450	400	1530	1270	1500	400
