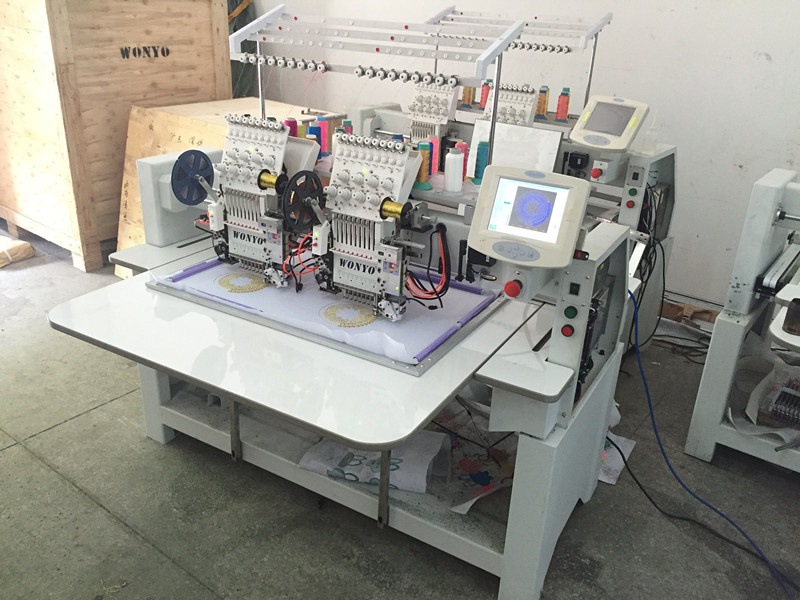

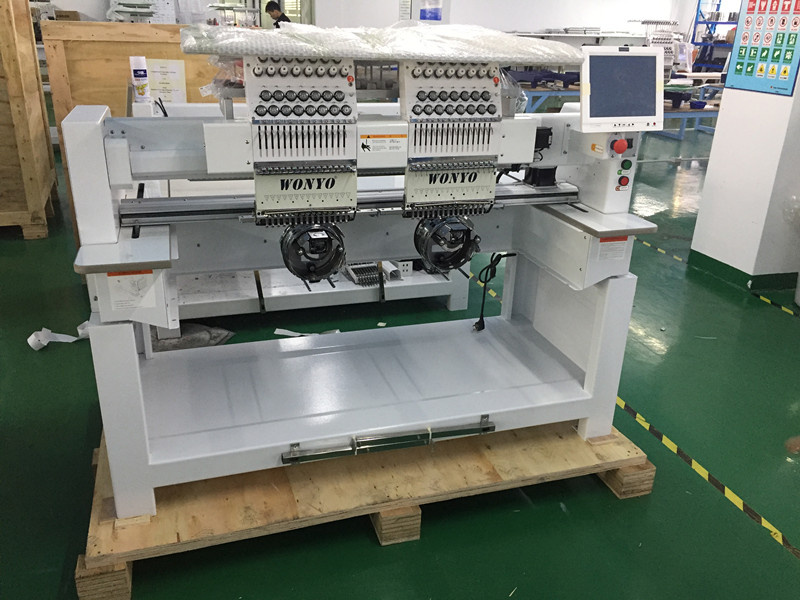

New Model 2 Heads Computerized Cap Embroidery Machine (WY1502C)

New Model 2 Heads Computerized Cap Embroidery Machine(WY1502C)
is a embroidery machine which can do cap, t shirts, and Flat embroidery with 8 inches Touch screen, 12 kinds of languages including English, Spanish, French and other 9 kinds of languages.



Technical Parameters:
Head & Needles	Head: 2     Needles: 9/12/15
Weight	Net weight: 450      Gross Weight: 470KG
Size	Overall Dimension: 1700*1050*1480mm  Package Size: 1550*1300*1590mm
Embroidery Area	Standard: 400*450mm
Embroidery Purpose	Suitable for Cap, T-shirt, Finished Garments, Shoes, Socks, Pocket and Cloth embroidery
Memory	20,000,000 Stitches matched with 200 patterns
Max. Color Change	Auto start and color change, 200 times color change setted
Readable Data	Compatible with designs of Tajima(DST), Barudan(DSB) and etc.
Design Input	By U disk, USB and Transmission from PC to Control System
Multi Languages	12languages:Chinese,English,French,Russian,Dutch,Spanish,Portuguese,Turkish,German,Arabic,Thai, Vietnamese
Full sets of Accessories	2 round embroidered frame-90 per head  2 round embroidered frame-120 per head  2 round embroidered frame-150 per head   2 round embroidered frame-200 per head  2 round embroidered frame-290*290 per head   1 piece of flat embroidery frame 2 pieces of cap rings per head   1 set of cap drive
Optional Devices	Simple Sequin device, Simple Cording device, Eight in one device, Boring device, Simple Taping device, laser position device
Motor	Main Motor: Servo Motor  XY Motor: Stepper Motor
X,Y Driving	Reinforced high speed linear guide rail
Computer System	8"  "TOPWISDOM" LCD touch screen
Main Parts	Japanese Rotary Hook, Groz-Beckert Needles, Italy Brand Belt
Embroidery Speed	Standard: 850RPM, Customized High Speed: 1000RPM
Embroidery Trimming	Automatic trimming
Protection Device	Emergency Stop, Prevent Accidents. Avoid hitting and etc. intelligent inflect mistake system
Warranty	12 Months for whole machine,24 months' free upgrade for control system,lifetime maintaining,2-3 days' training for customers/operators
After-sale service	Engineers available serve overseas
Packing	Standard Vacuum wooden case or as customer requested
Delivery Term:	Production takes around 20 days, ship within 7-10 days after payment received
Payment Term:	30% down payment before production, all balance cleared before shipping

Product Description:

1.2 Head Embroidery Machine
2. Cap embroidery machine
3. New embroidery machine

I. Main features of the embroidery machine.
1.9 needles, 2 heads, suitable for flat bed embroidery, cap
Embroidery and finished garments embroidery
2. Embroidery area: 400 X 450 mm, or 15.7" X 17.7"
3. Automatic thread trimmer
4. Maximum speed 850 SPM
5.270° Wide cap frame unit
6.8" color LCD display showing real time stitching
7. USB port ready
8. Auto color change
9. Thread break detection
10. Pre-Sew Design Trace capable
11. Memory size: 1, 000, 000 stitches
12. Electricity: 110V/60Hz or 220V/50Hz available
13. Start, Stop, and Emergency Stop
14. On-board lettering

II. Full coler control panel
1.8" High Definition color LCD display showing real time stitching
2. Function keys including Menu, Speed up and slow
Down (also Page Up and Page Down), Help, USB-
Input, Parameter Settings, Clear, ESC, Enter, etc.
3. Numeric keys for selection of needles
4. Frame-moving keys
5. Manual Trimming
6. Manual Color Change
7. Embroidery Status
8. Embroidery Method
9. DOT Key to return to 100 degrees
10. Mutli languages available

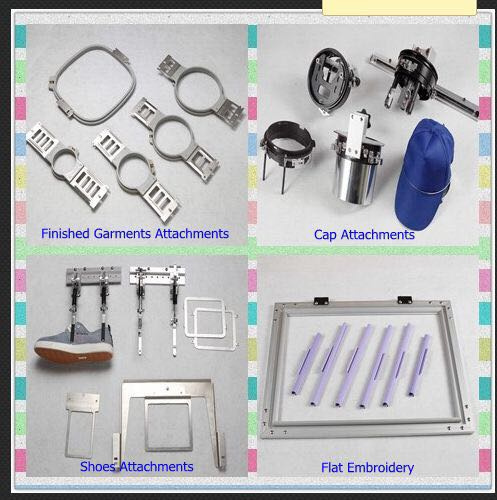

III. Frames/hoops
1 Sash Frame: 40.5cm X 48cm (16" X 19") for single head, 81cm X 48cm (32" X 19") for 2 head
2 sets of back hoops for 30cm X 30cm (11.80" X 11.80") for each head
2 sets of front hoops of 19cm (7.50") for each head
2 sets of front hoops of 15cm (5.90") for each head
2 sets of front hoops of 12cm (4.70") for each head
2 sets of front hoops of 9cm (3.50") for each head

IV. Accessories
Table top
Operation Manual
Tool Kit

Optional Devices:

Single sequin device: install on both side of the head (first needle or end needle)	Simple coiling/cording device: install on both side of the head (first needle or end needle)
Eight in one device: install on hoop frames (embroidery on pocket, sock,ect)	Simple taping device: install on both side of  the head (first needle or end needle)
Boring device: install on each needle	laser position device: install on all single head machine

Models:

Model	Needle	Head	N.weight	Embroidery area
WY1202C/902C/1502C	12/9/15	2	450kg	400*450mm
WY1204C/904C	12/9	4	700kg	400*450mm
WY1206C/906C	12/9	6	1100kg	400*450mm
WY1208C/908C	12/9	8	1200kg	400*450mm
WY1212C/912C	12/9	12	1800kg	400*450mm
