Prod Model: |
PPD-PTC1400 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Material: |
PVC Table Cloth with Non-Woven Lamination |
Thickness: |
10-500micro |
Max Width Of Mother Roll: |
1400mm |
Total Width Of Mother Roll: |
1450mm |
Unwind Roll Inner Diameter: |
76mm |
Unwind Roll Outer Diameter: |
Max 850mm |
Rewinding Roll Outer Diameter: |
Max 400mm |
Rewinding Roll Inner Diameter: |
25/38/50/76mm (Optional) |
Total Power: |
3kw |
Voltage: |
220/380/415/450V,3pH |
Product Description
Description:

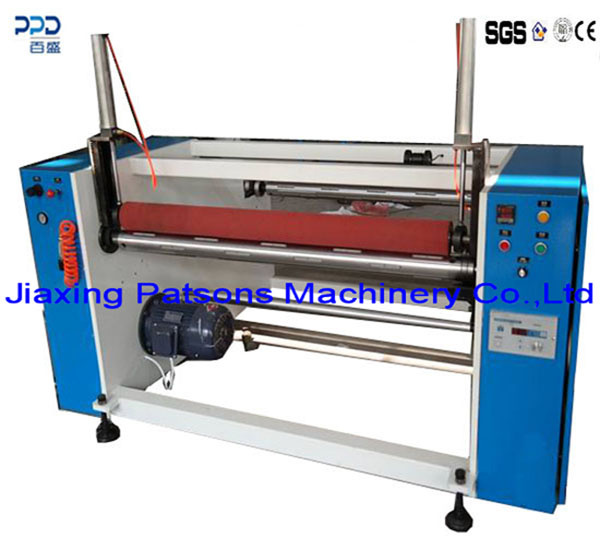

This machine is specially designed for rewinding PVC table cloth.
By PLC man-machine interface talk programmer device control,it is automatically feeding the paper core to reduce the labor job involving.
The machine designed for simple in operation by LCD Touch screen,it is high speed for production.
Main Data:
Material | PVC table cloth with non-woven lamination |
Thickness | 10-500micro |
Max width of mother roll | 1400mm |
Total width of mother roll | 1450mm |
Unwind roll inner diameter | 76mm |
Unwind roll outer diameter | Max 850mm |
Rewinding roll outer diameter | Max 400mm |
Rewinding roll inner diameter | 25/38/50/76mm (optional) |
Speed | Max 650RPM/Min |
Pneumatic supply | 0.3-0.5Mpa |
