| Prod Model: |
QL-9060 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
Laser Engraving Machine |
| Control: |
Automatic |
| Current: |
AC |
| Laser Type: |
CO2 |
| Certification: |
Ce, SGS |
| Usage: |
Rubber Acrylic Leather Wood Bamboo |
| Laser Power: |
60W/80W/100W130W/150W/180W Optional |
| Laser Tube: |
CO2 Glass Tube |
| Motor Driver: |
3 Pahse Stepper Motor |
| Working Size: |
900mm*600mm |
Product Description

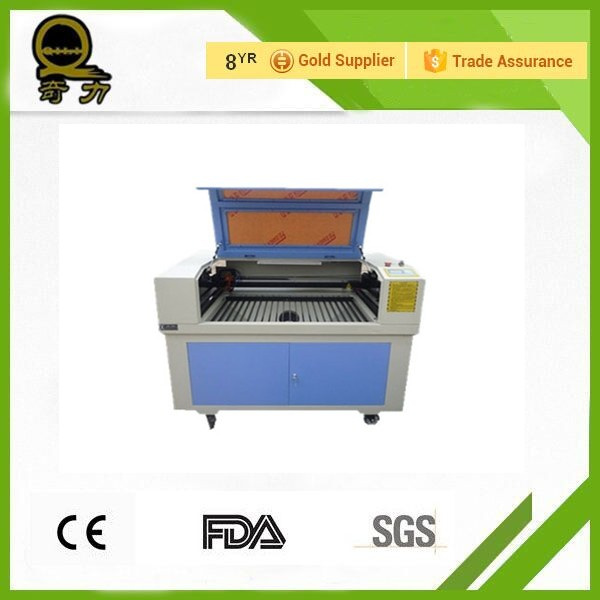

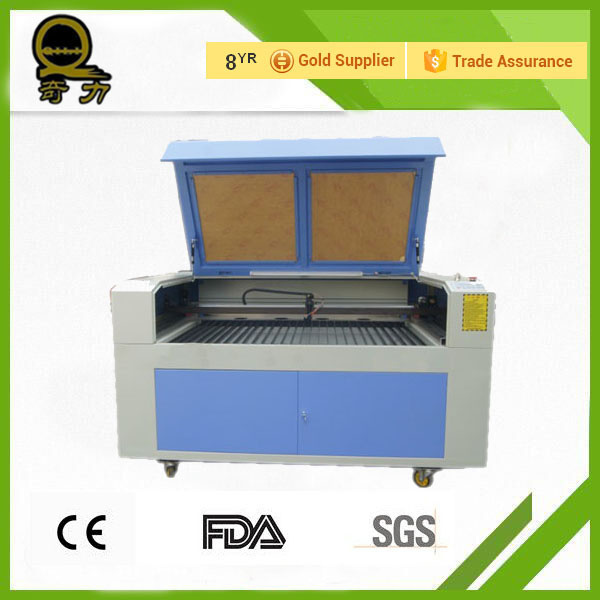

Nonmetal CNC CO2 Laser Cutting Engraving Machine
InformationQL-9060 laser engraving machine is a new laser equipment developed specially according to the needs of the market. Avoid wasting the materials, it has a high beam of light and cuts without contact and can avoid destroy. The kerf is narrow, the incision is smooth, the cutting force is strong, the cutting speed and the working efficiency are high. | Model | QL-6090/1390/1320 |
| Machine structure | Steel frame structure,knife platform |
| Working area | 600mm*900mm/1300mm*900mm / |
| Laser power | RECI 80W/100W/130W/150W |
| Engraving speed | 0-6000cm/min |
| Cutting speed | 0-5000cm/min |
| Repeatability | 0.02mm |
| Resolution | 2500DPI |
| Min. shaping character | English 1.0 x 1.0mm |
| Graphic format supported | BMP, PLT, DST, DXF, AI |
| Software supported | CorelDraw, PhotoShop, AutoCAD,TAJIMA |
| Driving system | 3 phases stepper motor |
| Power supply | 220V/50HZ , 110V/60HZ |
| Net weight | 300kg |
| Equipment dimension | 1820mm*1420mm*1100mm |
| Package dimension | 2020mm*1500mm*1350mm |

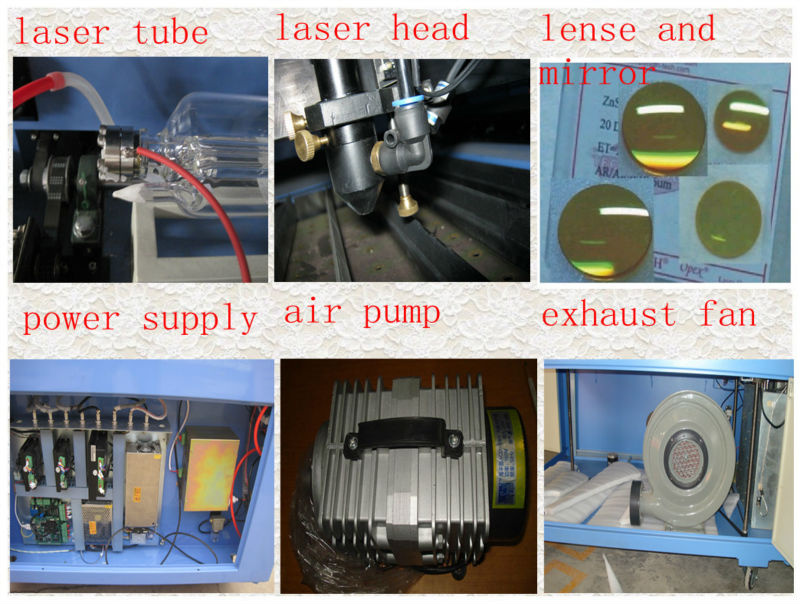

| Optional parts | big power laser tube, reci laser tube, rotary, |

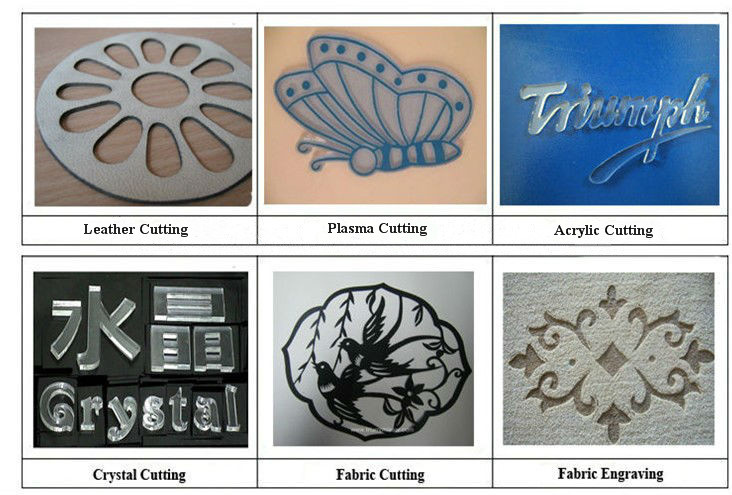

| Application materials | acrylic,plastics,wood,glass,marble,fabric,double-color board, MDF, leather, rubber, paper, etc |
Characteristics1. The imported beeline lead rail, imported stepper engine with the lower speed running structure, the cutting is very stable, the cutting face is smooth.
2. High intention, high precision mechanic structure design, the data control is stable.
3. Choose high technical laser tube, the beam of light is of high quality and the life is long.
4. Input the American imported focusing lens and metal condensing lens, the cutting strength is high.
5. Co figurate the industrial water cooling system with protection, the continuum work ability is stable.
6. The compatibility of the software is good, which can support the format of PLT, BMP, DXF etc. Applicable materialsNon-metal materials such as double color board, Plexiglas, glass, bamboo and wood, rubber, marble, granite and tiles, leatherApplicable industryBillboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry. After-sale service: 1. One year free warranty, main products are free of charge when problem happened during the guarantee period.
2. Free training course at our factory with professional engineers.
3. We provide the consumable parts at agent price when you need replacement.
4.24hours online service each day, free technical support with different languages.
5. If necessary, we provide door to door technical support for agents. Sapr parts:
Sample:

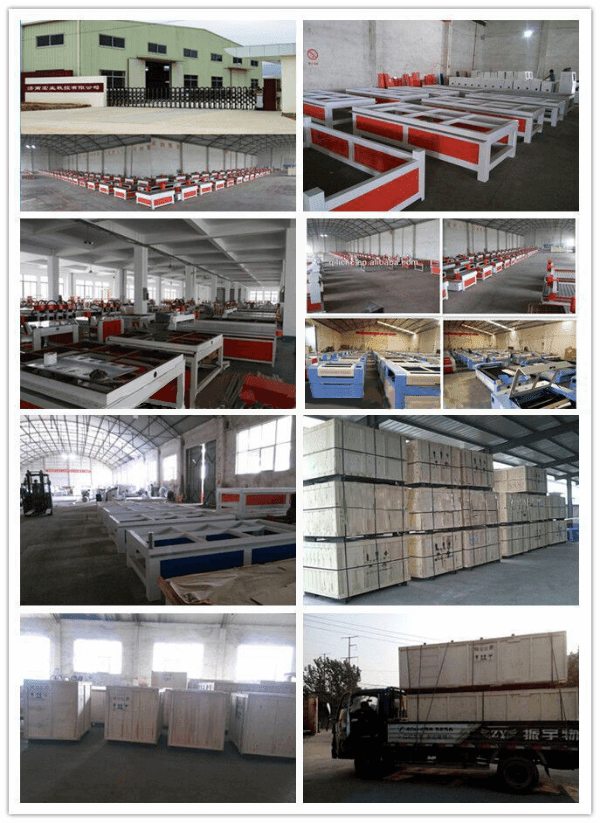

PackagesWater-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
Guarantee & After Sales Service: 1) The whole machine guarantee is 12 months except for special parts.
2) 24 hours technical support by phone, email or MSN, skype etc. our clients are from all over the world,welcome you join us!
Company Information: Jinan Hongye CNC Machine Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router, laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate. The aim of Jinan Hongye CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision products. FAQ: How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
How about Guarantee & After Sales Service?
The machine guarantee is 12 months. 2) 24 hours technical support by phone, email or MSN, skype etc.
If some problems happened to this machine during warranty period, what should I do?
We will supply free parts in machine warranty period if machine have some problem. While we also supply free after-service forever, so any doubts, just let us know, we will give you solutions in 24 hours.
What is the MOQ?
MOQ for our products is 1 set machine, we could send it to your country port if you tell detail information about your country port.
