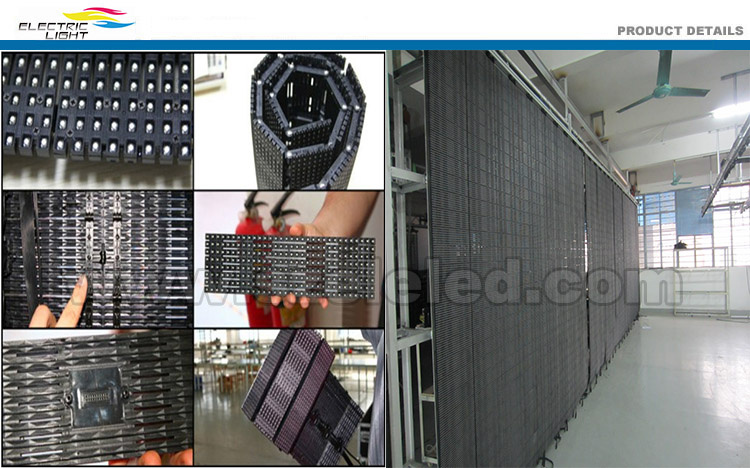

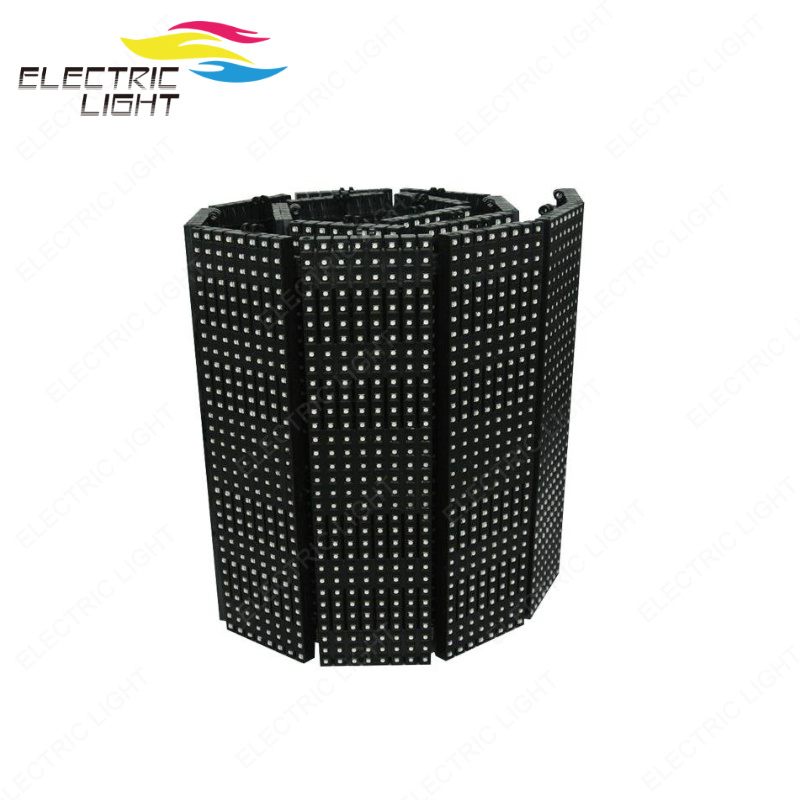

P10 Outdoor Display Flexible LED Curtain
Price: |
US $ 1000/Square Meter |
Min Order: |
1/Square Meter |
Pay Type: |
L/C,T/T,Western Union,Paypal |
PRODUCT FEATHURES:A)Dazzling image, acme waterproof, inner powerful, can be more higher performance;
B)High brightness: ≥2000CD,can display video images clearly in the sun;
C)High refresh rate: ≥4000HZ, 8 times of traditional P10 display, good to shoot;
D)Strong waterproof performance, IP66 waterproof level, can undertake soak for a long time;
E)65536 grey scale, 16 times of traditional display, color is more delicate. Module Parameter | Item | P10mm (SMD3in1) |
Physical Density | 10000pixels/m2 |
LED Shape | SMD3535 3 in 1 |
LED Chip brand | Epister/Silan/Sanan |
Module Size | 320×80mm |
Module Resolution | 32×8 |
Drive Mode | 1/4 scaning mode |
Cabinet Parameter | Cabinet Size | 320mm*1280mm*35mm(Super slim) |
Cabinet Resolution | 32×128 |
Cabinet Weight | 6.0kg/pcs(light-weight) |
Optical | Brightness | 5100cd/m2 |
View Angle | 110°(h), 110° (v) |
Best View Distance | 10m-100m |
Refresh Rate | 2000Hz |
Gray Scale | 16bits |
Power | Max/Avg Power Consumption | 220W or 75W/pcs |
Operating Power Source | Voltage: 100~260 V AC, 50~60 Hz |
Reliablity | Working Temperature | ( -20ºC~+50ºC ) |
Protection Rating | IP65 |

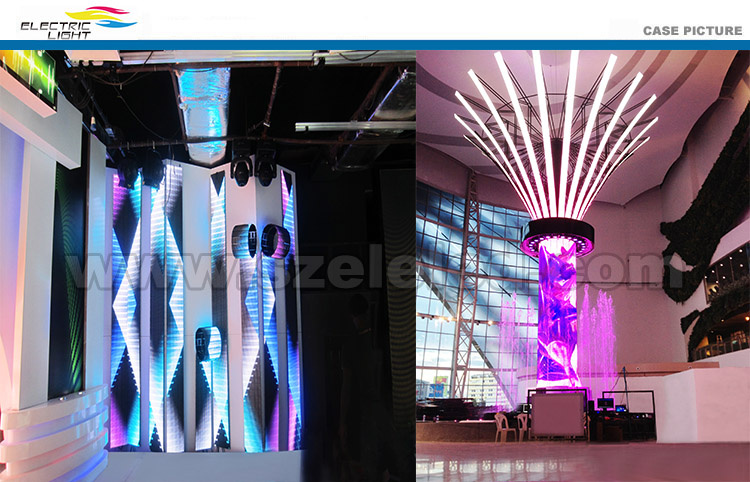

APPLICATION:Applied to Indoor and Outdoor big screen, shopping mall, stage, rental use etc.
Prod Model: |
OC-P10 |
Parameter: |
Video Wall LED Curtain |
Tube Chip Color: |
Full Color |
IP Rating: |
IP65 |
Pixel Pitch: |
10mm |
Pixel Configuration: |
1R, 1G, 1B |
Display Function: |
Video Display |
Pixel Density: |
10000 dot / m² |
Scanning Mode: |
1/4 Scan |
Display Type: |
LED Video Display |
Application: |
Stage Performance |
Certification: |
CCC |
Average Power Consumption: |
540 W / M2 |
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
