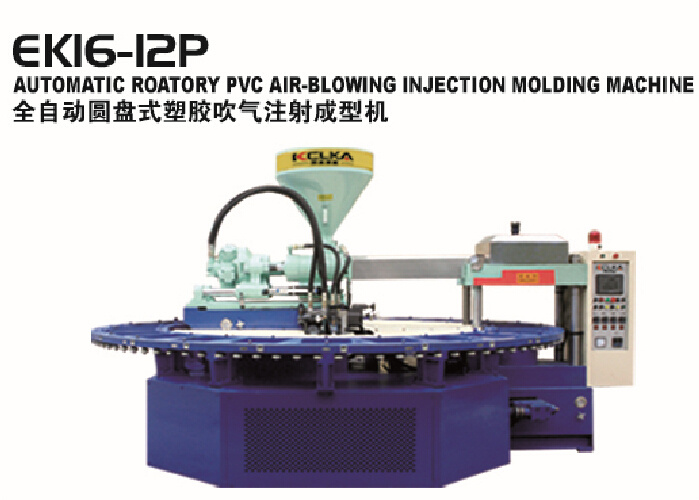

Pcu PVC Slipper Sandals Air Blowing Injection Molding Shoe Machine
Price: |
US $ 22000Set |
Min Order: |
1Set |
Pay Type: |
L/C,T/T,Western Union |
1 most of mechanical movements, covering ranges from injection, feeding, disc-rotating to mould-clamping, could be inputted into PLC, which ensures more accuracy for mechanical movements.
2 equipped with digital-type proportional controller so as to control mould-clamping pressure, injection pressure and feeding pressure.
3 unique mechanical structure, which allows to place big mould in size; at the same time, the machine is fitted with mould cooling device which is easy to operate, producing product more perfectly.
4 with the help of blowing system, the machine can have product lightweight, soft and own a polished looking in surface. Besides, the weight can be 20%-30% lower than traditional production way.
5 recycled material can be mixed together to produce products, quality of which can be comparable with new product made of purely new material.Technical Description
Item | Unit | |
Raw material | | PVC.TPR |
Work Stations | Stations | 24 |
Mould-clamping Pressure | Kg | 70000 |
Space to hold mould | Mm (LxWxH) | 400*200*220 / 600*280*230 |
Diameter of Screw | Mm | 60 |
Max. Injection Volume | Cm3 | 758 / 785 |
Injection Pressure | Kg/cm2 | 550 |
Diameter of Disc | m | 3.60 |
Temperature Control Section | Sections | 4 |
Electric Heating Energy of Material tube | Kw | 8.78 / 9.18 |
Motor | Kw/Hp | 18.5/25 |
Total Electricity Consumption | kw | 29 |
Machine Size | Mm | 6200*3530*2300 |
Output | Pairs/day | 2500 |
Machine Weight | kg | 8800 |
FAQ
Delivery date:
Within 20 days After receiving the 30% earnest money
Payment term:
Advance payment at order 30%, 70% before shipment
Delivery State:
Machines were taken apart and packed in suitable package that fits container shipping
For the machine experiment and installation, our technician will be sent to your
factory. And you are requested to afford the cost of their trip and payment .
Our technician will manage all the machine things for you and at the same time train your workers on
how to use and maintain the machine.
Guarantee Time:
One-year warranty and lifelong service. During guarantee period, the cost of any spare parts or new accessory should be borne by the seller, and the freight for delivery of spare parts will be on the buyer's account.
Prod Model: |
EK16-12P |
Productivity: |
2500 Pairs / Day |
Type: |
Injection Blow Molding |
Structure: |
Horizontal |
Plastic Type: |
Thermoplastic |
Plasticizing Way: |
Screw Type |
Clamping Way: |
Hydraulic |
Automation: |
Automatic |
Computerized: |
Computerized |
Certification: |
ISO9001:2008 |
