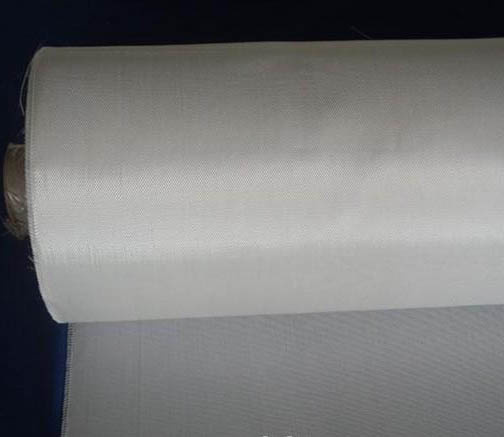

Plain Weaving Fiberglass Fabric

Name: Plain Weaving Fiberglass Fabric
Brand: FullPackage
SKU: 782667085
Availability: InStock
Rating: 4.8 (131 reviews)

Price:	US $ 0.5/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Fiberglass Clothes
To change the weaving structure with warp yarn as well as weft yarn glass fiber fabric is primarily of three kinds,namely plain weave, twill weave and stain weave .And other structures can be derived from these three fundamental weaves.
We have different treatment process technology,such as Pretreatment,Heat cleaning and finish process.These products can satisfy various kinds of usage to its customers.
Our factory.is ready to supply various kinds of quality glass fiber fabric to its customer by customer-needed weave,style of yarn,warp/weft density.
Usage 1: It is a basic material for manufacturing glass-mica colth tape and pipe etc.and also could be used as insulation colth in large motors and generators.
Usage 2: It is used for manufacturing copper-clad R.P. panel and widely used in electric's industry.
Surface treatment: To increase affinity between the glass fiber and resin and give full display to remit of strength. Various types of coupling agent are available for surface treatment if required.
Usage 3: It is widely used for manufacturing FRP sheets, pipe, rods, car body, boat hull, fan blade and Varieties of profiles etc.
Surface treatment: To increase affinity between the glass fiber and resin and give full display to remit of strength. Various types of coupling agent are available for surface treatment if required.
Technical Specifictions:

TYLE	WEAVE	WARP/WEFT DENSITY		WEIGHT		THICKNESS		BREAKING STRENGTH		WIDTH		ROLL LENGTH
TYLE	WEAVE	ENDS/CM	ENDS/INCH	G/M 2	OZ/YD 2	MM	INCH	N /2.5CM	LBS/INCH	CM	INCH	M	YD
EW25	PLAIN	28×22	70×50	18	0.53	0.025	0.001	118×88	27×20	90-104	36-42	700	765
EW30	PLAIN	24×18	60×45	20	0.59	0.030	0.0012	167×78	38×18	90-104	36-42	700	765
EW35	PLAIN	26×12	66×30	28	0.83	0.039	0.002	260×70	59×16	90-100	36-40	1000	1093
EW40	PLAIN	26×18	66×46	31	0.91	0.042	0.0022	280×130	64×30	90-100	36-40	600	656
EW45	PLAIN	24×10	60×26	34	1.0	0.049	0.0026	300×60	68×14	100	40	1000	1093
EW60	PLAIN	20×20	50×50	48	1.41	0.060	0.0024	275×275	62×62	90-104	36-42	500	547
EW100B	PLAIN	20×20	50×50	100	2.95	0.100	0.0040	490×392	110×88	90-104	36-42	300	328
EW100	PLAIN	16×12	40×30	110	3.24	0.110	0.0043	460×400	105×91	90-104	36-42	300	328
EW140	PLAIN	16×12	40×30	135	3.98	0.140	0.0056	735×490	168×112	90-104	36-42	250	273
EW160	PLAIN	16×10	40×25	143	4.20	0.160	0.0064	735×490	168×112	90-104	36-42	250	273
EW200	PLAIN	20×15	50×38	200	5.90	0.200	0.0080	882×735	200×168	90-104	36-42	200	219
EW210	TWILL	16×12	40×30	200	5.90	0.210	0.0084	1078×882	242×198	90-104	36-42	200	219
EW230	TWILL	20×10	50×25	245	7.25	0.230	0.0090	1666×490	380×112	100	40	1000	1093
EW260	PLAIN	12×8	30×20	264	7.79	0.260	0.0104	1200×800	269×180	90-104	36-42	200-1200	219-1312
EW290	PLAIN	16×10	40×25	281	8.26	0.260	0.0102	1830×1150	416×262	100	40	100	109
EW300	PLAIN	14×10.4	36×26	322	9.50	0.300	0.0120	1500×1000	337×224	90-104	36-42	200-1200	219-1312
EW430	TWILL	20×12	50×30	422	12.45	0.430	0.0172	2000×1050	448×235	90-104	36-42	200-1200	219-1312
EW500	Z END PLAIN	11×5.6	28×14	617	17.8	0.500	0.0196	2189×2189	500×500	100	40	100	109
EW880	SATIN	16×14	40×35	881	25.99	0.800	0.0320	4160×3510	935×789	90-104	36-42	302	330
7628	PLAIN	18×12	45×30	198	5.83	0.180	0.0072	1050×730	236×164	90-127	36-42	402	440

Prod Model:	STR237
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Width:	From 90cm to 104cm
Length:	From 500m~2000m
Woven Way:	Plain
Shape:	Fiberglass Cloth
Fiber Characteristics:	E-Glass
Diameter Of Filaments:	Advanced Fibers
Fiber Appearance:	Continous Fiber
Glass Composition:	E-Glass

Yuyao Strong Fiberglass Products Factory

Yuyao Strong Fiberglass Products Factory is owned by China COMFORT Group, it is a professional manufacturer of fiberglass products:

Composite Reinforcement

1. Fiberglass cloth for surfboard: Standard and warp enhanced, have a lot of export to Australia, Indonesia, Brazil, Argentina…

2. Sandwich mat with PP core for RTM process: Exported to Russia, Malaysia, Spain, used to make big size road plate, cooling tower…

3. Fiberglass chopped strand mat: Big roll and wide width available, good quality of light weight mat for auto headliner such as 100g, 120g, 150g

4. Other reinforcement material such as stitch mat, combo mat, uni-direction and biaxial fabric, woven roving, Ar-glass roving, chopped strand

Chemicals:

1. SMC/BMC: Experienced in SMC for water tank, electric meter box, manhole cover. Have a lot of export to Saudi Arabia, South Africa, Malaysia

2. UP resin: Exported to Thailand, Chile, Nigeria

GRC: Ar-glass spray up roving, Ar-glass chopped strand, exported to Saudi Arabia, Egypt, Indonesia…

Geosynthetics: Fiberglass/polyester geogrid, paving grid, drainage geonet for landfill

Contruction:

Fiberglass mesh, fiberglass self-adhesive mesh clothes, fiberglass drywall tape, fiberglass tissue and fiberglass tissue tape

Sealing material:

Fiberglass bulked tape, fiberglass rope, fiberglass sleeve

All of them have passed test mastered by China National Quality Inspection and Supervisor Authority.

We adhere to the principle of " Honesty&Sincerity " since our company established, and keep improving products quality. We win followed honors and certificate in the past years: ZHEJIANG FIRST 100 PRIVATE CORPORATION", "NINGBO HI-TECH CORPOR ATION ", "NINGBO FAMOUS BRAND PRODUCTS MANUFACTURER.
