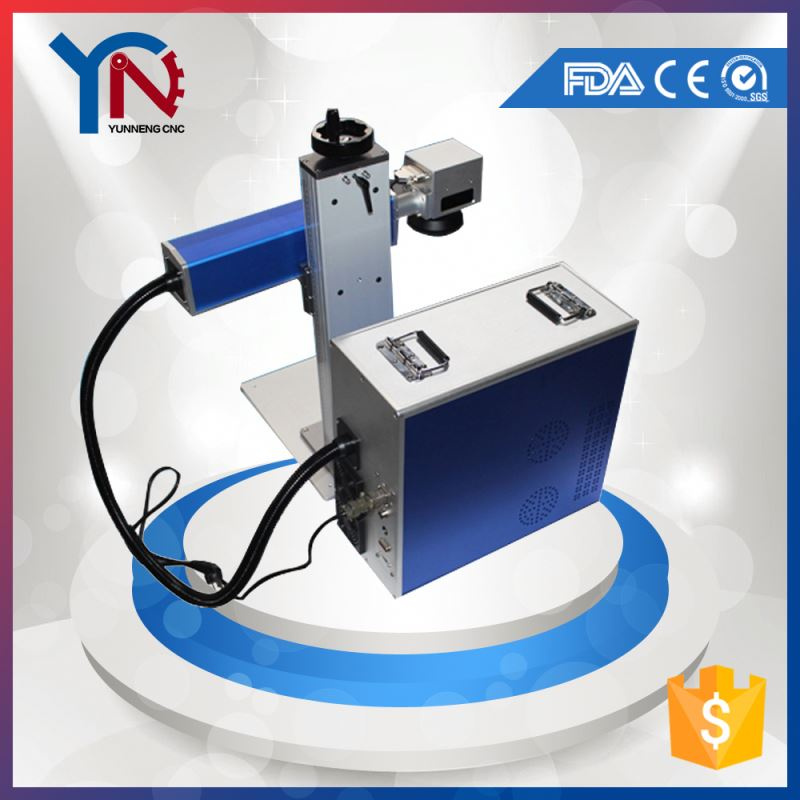

Plastic PCB Ring Zipper Fiber Laser Marking Machine
| Price: |
US $ 6689/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Product Description
Features:Using low costElectro-optic conversion efficiency up to 30%,the whole machine consume less than 500watt,is the one in ten of lamp pumped solid laser marking machine,save energy consumption spendingMaintenance free operationLaser without any maintenance,also need not adjust or clean lensThe lifetime of laser is longUse laser diode as the pump source are used,the average working time of up to 100,000 hoursProcessing speed is fastProcessing speed is 2 to 3 times faster than the traditional laser marking machineAppication:Widely used in mobile phone keys,cell phone shell drawing ,car stereo buttons,watch and other metal non-metalic productSamples:
Parameters:| Model | YN-3030 |
| Wavelength | 1064nm |
| Beam Quality | 10w/20w/30w |
| Laser Power Output | 10%~100%(adjustable) |
| Laser Output Frequency | 20KHZ~200KHZ(adjustable) |
| Stability of the Power(8h) | <±1%rms |
| Focus Point Diameter | <0.01mm |
|
| Marking Type | Dynamic Marking / Static Marking |
| Engraving Range | 150mmx150mm |
| Matching Range | 50mmx50mm 100mmx100mm |
| 200mmx200mm 300mmx300mm |
| Engraving Depth | ≤1.2mm |
| Engraving Speed | 800/second |
| Minimum Line Width | 0.012mm |
| Minimum character | 0.15mm |
| Repeat Accurancy | ±0.003mm |
| Laser | Made in China |
| System Running Environment | WindowsXP/50HZ/<400W |
| Cooling | dry |
| Environment Temperature | 15 |
| Demand for Electricity | 220V//50HZ/400W |
| Laser Lifetime | 100.000hours |
After-service:1.User-friendly English manual and video CD for machine using and maintaining
2.My company English software can do all kinds of patern recognition ,software upgrading and updating and updating free
3.All product has 12 months warranty ,we can provide technical support even after the warranty
Weifang Yunneng CNC Equipments Co., Ltd is a new and high technology enterprise in China. Our company is specialized in computer software development and technology transfer, laser equipment. Undertake precise laser processing business.
Relying on the China from universities and research institutions, we are the main business agent of the optical equipment such as: Metal laser marking machine, laser engraving machine, laser metal cutting machine, laser welding machine, laser die board making machine, CNC router channel letter bending machine and vacuum forming machine. Our products can be applied to the fields of hardware auto parts, clothing, leathers, toys, electronic appliance, models, process advertising, stones, decorations, plastics, glass industry and others.
Yunneng insists on "quality wins the market and the quality service wins the customers". Complying with European CE certification, our products sell well in over 30 countries and regions, such as Brazil, Mexico, Belgium, Iran, Thailand, Korea, Vietnam, the USA, Germany, Italy, Australia, Pakistan, Egypt, Spain, South Africa and Lithuania.
Our success depends entirely on the satisfaction of our customers. Ensuring that you are completely happy and comfortable with your machine is always our first priority. We work tirelessly to make sure that your experience with our laser is always both professional.
