| Prod Model: |
JG-FW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Piston Extruder |
| Plastic Processed: |
PE |
| Product Type: |
Granulating Extruder |
| Feeding Mode: |
One Feed |
| Assembly Structure: |
Integral Type Extruder |
| Screw: |
Twin-Screw |
| Engagement System: |
Full Intermeshing |
| Screw Channel Structure: |
Deep Screw |
| Exhaust: |
Exhaust |
| Automation: |
Automatic |
| Computerized: |
Non-Computerized |
Product Description

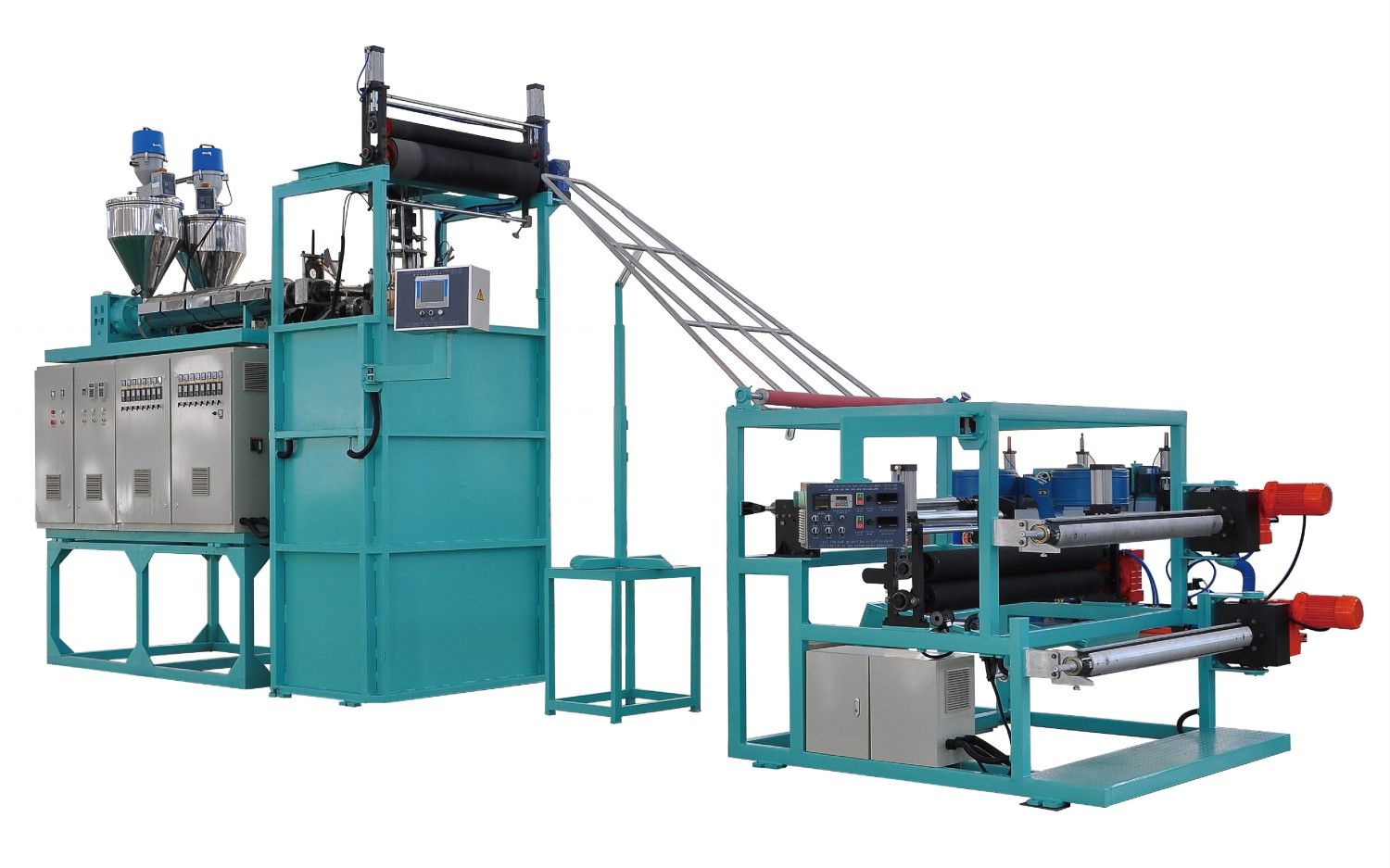

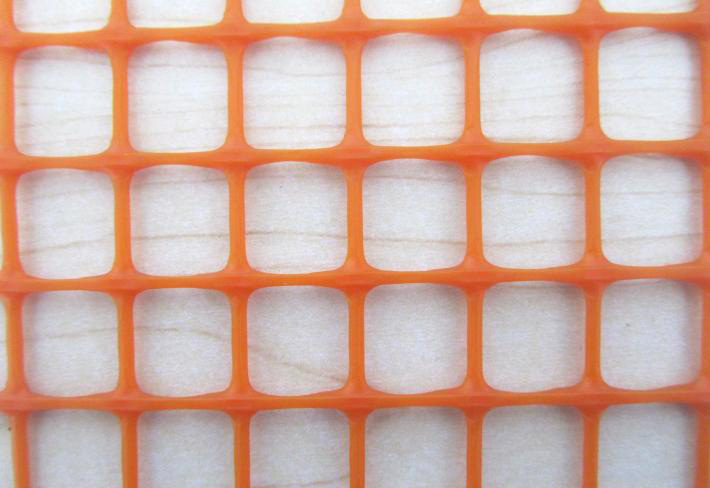

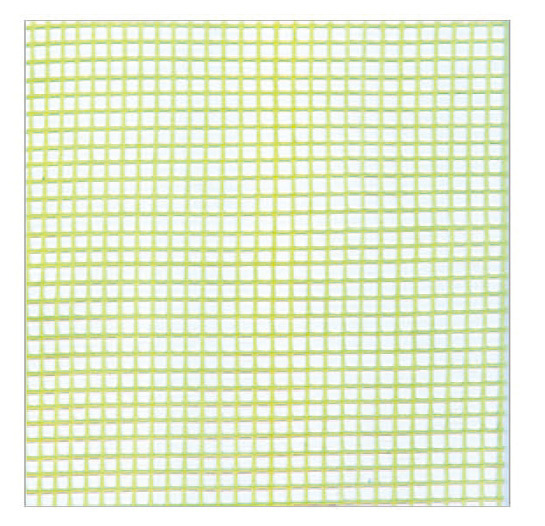

Plastic mesh machinery has been adopted the most advanced technical in the world, and mixed our experiences in the net production. The machine has double extruders, and they control the warp and weft strand separately. The final production has features of smooth surface and equality mesh. By twice transverse and lengthways hot stretching it turns to be the square stretching net. The mechanical property has been obviously promoted. It is widely used in the decoration, safety net, insect prevention, high grade rail and many other fields.
| Model | JG/FW45 | JG/FW65 |
| Screw dia. | mm | Φ 45× 2 | Φ 65× 2 |
| LD/ ratio | L/D | 30: 1 | 30: 1 |
| Screw speed | r/min | 5-50 | 5-40 |
| Motor power | KW | 7.5 | 15 |
| Heating power | KW | 20 | 35 |
| Width of product | mm | 1000 | 1500 |
| Installed capacity (approx) | KW | 55 | 75 |
| Dimensions (L× W× H) (approx) | m | 9× 2.8× 2.6 | 12× 3× 2.8 |
Technics introduction
Firstly, compound PVC and other material symmetrically, and then put them into hopper. Later, after being melted and plasticized in the extruder, material will be extruded through die head and going into vacuum fixing dia. machine, in that, it will be formed by cooling. At last, pipe being cut down automatically and going onto stacker, PVC rigid pipe will be got.
