| Prod Model: |
SJ-A60 |
| Kind: |
High Efficiency HDPE/LDPE Blowing Film Machine |
| Model: |
Sj-B60 |
| Screw Dia.: |
60mm |
| Film Width: |
300-1000mm |
| Film Thickness: |
0.01-0.1mm |
| Take Up Motor: |
1.5kw |
| Automatic Loading: |
Optional |
| Corona Treatment: |
Optional |
| Speed: |
10-60m/Min |
| Brand: |
Jingdianruihua |
| Type: |
Single-Layer Co-extrusion Film Blowing Machine |
| Raw Material: |
PE |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Certification: |
SGS |
| Machine Weight: |
2000kgs |
Product Description

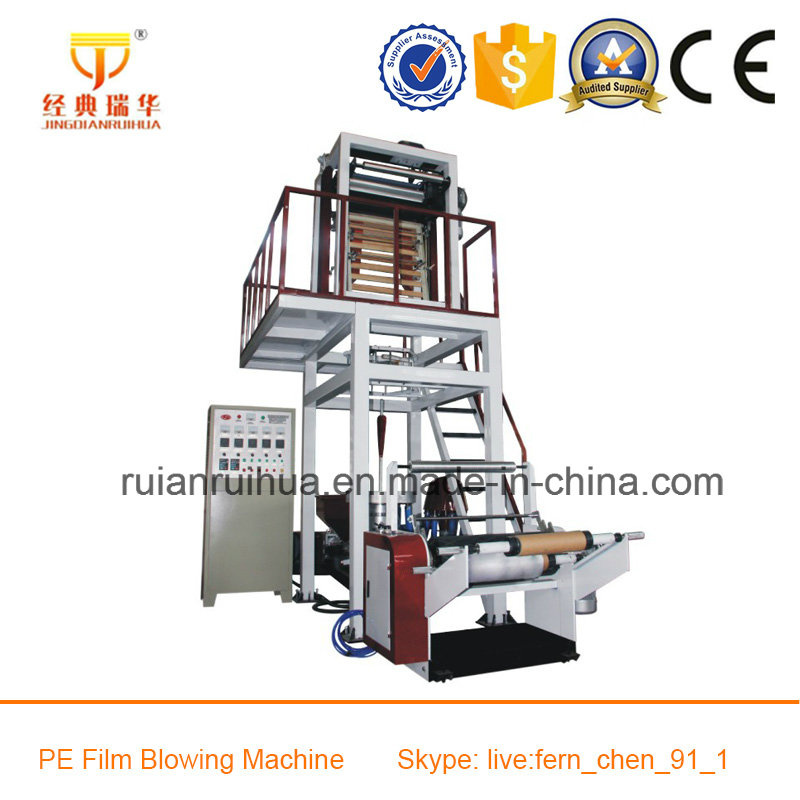

Plastic Table Cover Making MachineCharacteristics:
The cylinder and the screw stems of the above extruders are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment. The auxiliary machine has a platform working table for making operation easy. The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.
Usage:
It is used to blowing the various PE thermal shrink-ink membranes which are applied extensively to food, medicine, beer bottle, material bottle, box, case, cloth reel, floor, glass, all sizes of trays, pottery, issue, etc.
Main Technical Variables:| Model | SJ-B60 |
| Screw Diameter | 60mm |
| Screw Ratio(L/D) | 32:1 |
| Die Size | 120mm(HDPE) 250mm(LDPE) |
| Max. Screw Speed | 120r/min |
| Heating Way | Cast Aluminum Heating Coil |
| Screw Cooling fan | 4 sets |
| Power of Main Motor | 37Kw |
| Max. Extrusion output | 100kg /h |
| Max. Folding Width of Film | 1000mm |
| Single-sided Thickness of Film | 0.01 -0.15mm |
Shipping
Our serviceInstallation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly feels that importance of supporting our customers and the product solutions we provide. Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.
FAQ1.Q: Are you a factory or trading company?
A: We are established in 1995, an actual factory and manufacturer in the line of printing and packing machine for 20 years.
2.Q: Where is your factory loaded? How can I visit there?
A: Our factory located in Rui'an city, Zhejiang Province, China, about one hour by air from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us.
3.Q: Which industries are widely used in of your machine?
A: Bag making machine, film blowing machine, printing machine.
4.Q: How about the payment term?
A: For new customer, our payment term is 30% T/T in advance before production, the balance 70% be paid before delivery.
5.Q: What about your main market?
A: Our products be sold well in 30 provinces in China and have good reputation in China, also we pay attention to developing the oversea market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
6.Q: How does your factory do regarding quality control?
A: Quality is the most important principle. Our factory has passed SGS and CE certifications.
More details, pls contact us freely.
Ruian Ruihua Printing Packing Machinery Co., Ltd. is a company with about 20 years experiences in flexible package machinery. As manufacturer, we do machine design, manufacture, service in A Line. With advanced technology, practical spirits, complete quality management, complete set of equipments, our company has gained remarkable achievements.
We are dedicated to the manufacture of printing packing machinery. Main products include Film Blowing Machine, Printing Machine, Bag Making Machine, Slitting Machine, Air Bubble Film Machine, Stretch Film Machine, etc.
In many countries, you can find our machine, like Southeast Asia countries, Middle East regions, African, South America, etc.
Our unremitting pursue is "Management Innovation, Technology innovation, Product Innovation". Our focus is to provide best solutions for customers. And insist to support best quality machine, shortest delivery time, and on time presale and after sale service.
Welcome all of you come and visit us.
