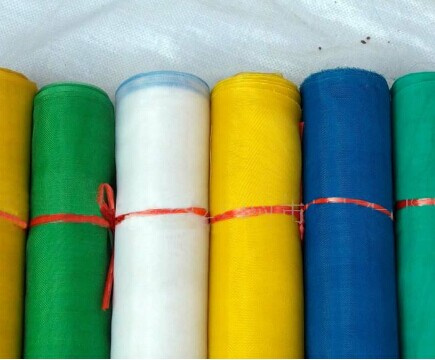

Plastic Window Screen/Insect Screening Low Price
Price: |
US $ 3.5/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
500/Square Meter |
Pay Type: |
L/C,T/T,D/P |
Prod Model: |
XL-WS-013 |
Markets: |
North America,Southeast Asia,Africa,Mid East,Eastern Asia |
Width: |
1.2-2.7m |
Weight: |
80g-120G/M2 |
Color: |
White,Green,Blue,Black,Borwn and So on |
Hole Shape: |
Square |
Application: |
Protecting Mesh |
Weave Technique: |
Plain Weave |
Surface Treatment: |
Plastic |
Material: |
Plastic |
Product Description
Plastic window screen include plain weaving plastic window screen and interweaving plastic window screen.
The warp and weft of the plain weaving plastic window screen is monofilament. The plastic monofilament is a little thick. The mesh grid is even, beautiful. The plastic window screen is an alternative product of glass fiber window screen.
Mesh count: 14 mesh/inch, 16 mesh/inch,18 mesh/inch,20 mesh/inch, 22 mesh/inch, 24 mesh/inch, and so on. Wire Diameter: from 0.18mm to 0.40mm. Mesh width: from 50cm to 280cm.
Interweaving plastic window screen:the warp is double, the weft is monofilament. The two warps braid around the weft, the wire diameter is thin and it can save material.
Mesh count: 14 mesh/inch, 16 mesh/inch. Wire diameter: from 0.13mm to 0.21mm. Mesh width: from 50cm to 150cm.
Color: green, blue, white, yellow and other colors. We can set the color as per the samples provided by our customers.
Characteristic: the wire diameter of plain weaving plastic window screen is thick, mesh count is dense , mesh opening is even, beautiful, and cheap.
We can produce it as per the specifications provided by our customers
Description
|
Specification
|
Application
|
Mesh
|
Wire Gauge
|
Size
|
Aluminum iron wire netting
|
10x10
|
BWG31
BWG32
BWG33
BWG34
|
3'x100'
4'x100'
1x25M
1.2x30M
1.5x25M
|
Electric galvanized
after weaving.
White or light-blue
|
14x14
|
16x16
|
18x18
|
18x14
|
22x22
|
24x24
|
30x30
|
Enamelled iron wire netting
|
Same as above
|
Green or dark green
|
|
Same as above
|
Silver
|
Aluminum wire netting
|
Same as above
|
Material: Al-Mg alloy or pure aluminum
|
Fiber glass wire netting
|
12x12
|
BWG31
BWG32
|
3'x100' 4'x100' 1x25M 1.2x25M
|
All kinds of color
|
14x14
|
16x16
|
16x14
|
Plastic wire netting
|
12x12
|
Same as above
|
Mesh 12,14,16: hinged weave.
Mesh 18,22,24: plain weave
White , blue, green, etc.
|
14x14
|
16x16
|
18x18
|
22x22
|
24x24
|
30x30
|
Stainless steel wire netting
|
14x14
|
SWG38
SWG37
SWG36
SWG35
SWG34
|
3'x100'
4'x100'
1x25M
1.2x25M
|
Material:304,316,316L
|
16x16
|
18x18
|
18x14
|
20x20
|
PVC wire netting
|
12x12
|
BWG31
BWG32
|
Same as above
|
Fit in with petroleum, pipeline, package, all kinds of color
|
14x14
|
16x16
|
18x18
|
