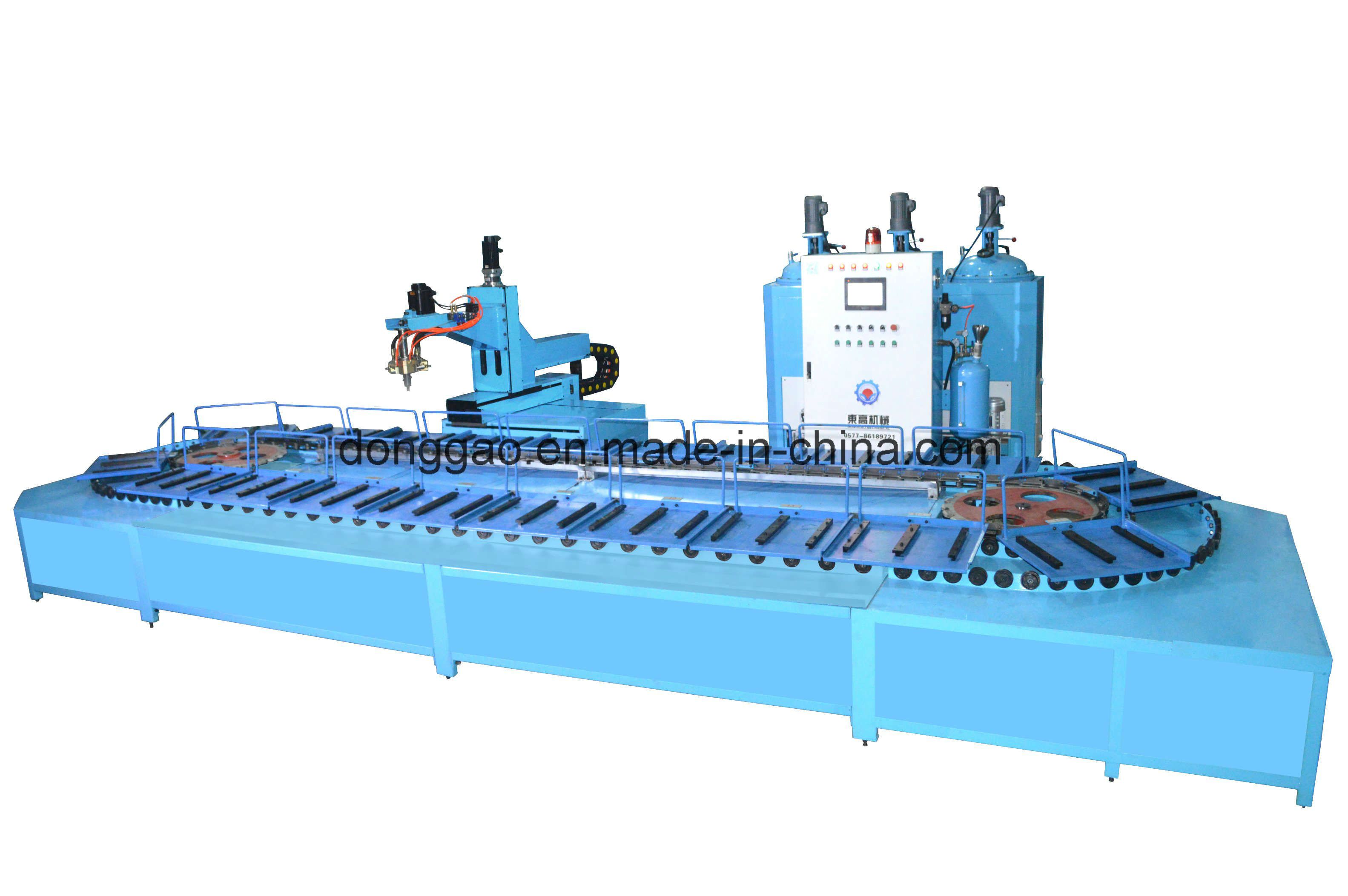

PLC Intelligent Polyurethane Slipper Sandal Making Machine
| Price: |
US $ 22000-88000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Details of PLC Intelligent Polyurethane Slipper Sandal Making Machine
Features:1.The three dimensional worktable of the pouring head is fully controlled by the PLC programming, which can keep the synchronous speed with the production line in real time.
2. High-precision measurement: accuracy of single group can reach 5‰. Durable high precision gear motor and PLC communication frequency conversion regulate the speed.
3. After inputting the program to the system controller, the process of mold stripping, release agent spraying and air blowing will be highly intelligent automatic in the assembly line.
4. Large colorful man-machine interface operation platform; PLC program controls every operating unit; temperature and pressure are controlled precisely through high-precision data acquisition module.
5. With medium speed (8600r/min), mechanical sealing and preventing contra-flow design, high-speed spiral mixing head is designed to reduce waste emissions. Mixing system with the cooling water cycle throughout extend the cleaning cycle (> 60 pairs).Application: The machine is suitable for producing polyurethane foam products, such as various types of polyurethane beach sandals, casual shoes, PU insoles and other foam products.Main parameters: | No. | Item | Parameter | No. | Item | Parameter |
| 1 | Total pouring
amount(g/s) | 50-150 | 7 | Stirring speed
(r/min) | 8600 |
| 2 | Volume of
A-material tank (L) | 3×120 | 8 | Casting cleaning cycle | ≤90 pairs |
| 3 | Volume of
B-material tank (L) | 120 | 9 |
Control system | PLC |
| 4 | Number of
metering pump | 3 | 10 | Total power
(kw) | 7.5 |
| 5 | Volume of
purge tank (L) | 25 | 11 | Dimension
(L*W*H/mm) | 1700×1800×2250 |
| 6 | Metering error(%) | 0.5 | 12 | Weight(kg) | 2000 |
(The machines can be customized.)FAQ1. Quality
Our company has attended many large-scale exhibitions, such as China PLAS, Indian electronics exhibition. Our products are exhibited on the same stage with German equipments and recognized by customers.
2. Price
Different types of machine have different prices; please advise us what you are going to produce, so that we can recommend the most suitable type to you. Our company is a professional manufacturer; we can offer the machine with best quality at reasonable price.
3. Can we offer customized solution?
Of course, our research and design team have worked on this field for more than 10 years.
4. Services
More than 5000 customers worldwide using our machines now, we have first-class R&D team to design specific sets of equipment for our customers. Strong technical support and rapid responding after-sale service system guarantee the better application of our machine at customer's factory.
If you have any inquiry, please contact with us today. We will reply you ASAP! Thank you very much!
Contact us:
Tel: +86-577-86189720 15057762175
LinkedIn: Cody Yang
| Prod Model: |
DG-AIAMPU15X-JG |
| Condition: |
New |
| Shipping: |
Shipped in 15 Days After Payment |
| Warranty: |
One Year |
| Type: |
Polyurethane Foam Machine |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Certification: |
BV |
| Raw Material: |
Polyurethane |
| Principle: |
High Temperature Melt-Casting |
