Price: | US $ 10-4016 |
---|---|
Min Order: | 1016 |
Pay Type: | L/C,T/T |
Sun Hong Fabric factory is a professional Industrial Fabric manufacturer for tissue ,package ,writing &news printing paper etc. Our products have the press felt, forming wire and dryer fabric which can meet the machine speed under 1800 m/min. Our mainly producing equipment is imported from Europe . Our technical team own 30 years experiences on designing and after sales service to keep our fabric good performance on your paper machine .

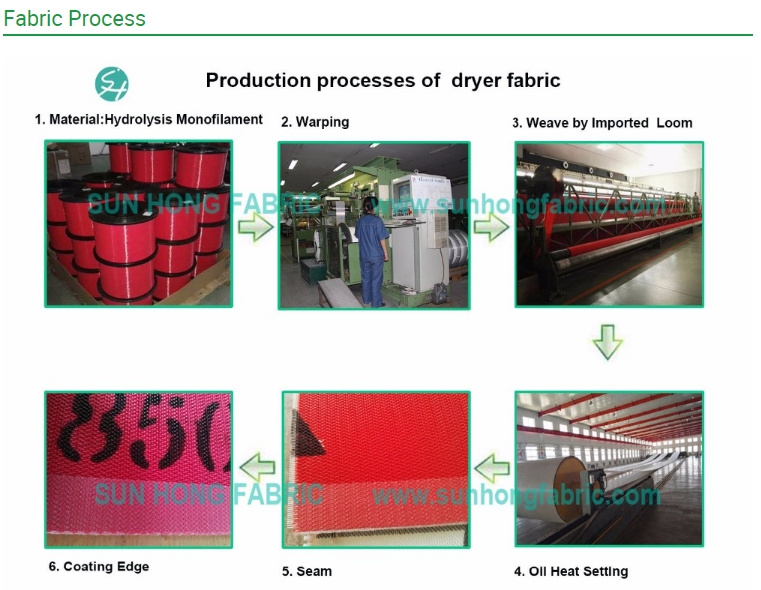

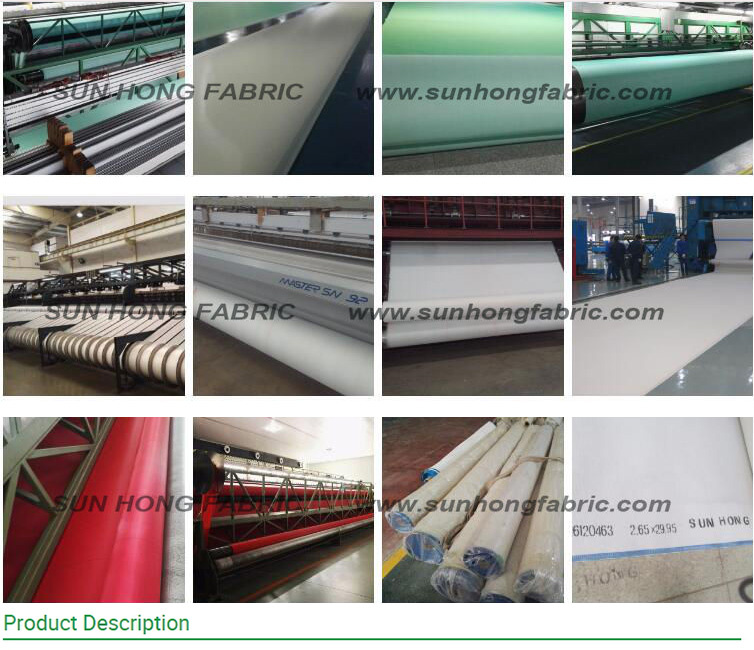

The following photos show our workshop for paper machine clothing products .
Polyester Dryer Fabric -- Round Wire / Flat Wire/ Spiral Wire
According to the seam mode, it can be divided into insert, pin, pin ring and spiral ring join.
3-shed one layer and a half polyester dryer belt are suitable for drying papers below 70g.
4-shed double layer polyester dryer belt is suitable for drying papers above 70g.
SUNHONG polyester dryer fabric can bring your machine : dryness increased, paper surface improved and energy saved. They can meet your paper requirment, from tissue paper ,writing &newsprinting ,package paper to paper board .
wire Diameter(mm) strength(N/cm) |
Types of Spiral Dryer Fabric | Model of fabrics | warp | weft | Area of the surface | Air Permeability (m³/m²h) |
Coarse Loop | LW90110 | 0.90 | 1.10 | ≥ 2300 | 21000±500 |
Large Loop | LW4080 | 0.90 | 1.10 | ≥ 2000 | 18000±500 |
Medium Loop | LW3868 | 0.70 | 0.90 | ≥2000 | 16000±500 |
Fine Loop | LW3560 | 0.6 | 0.80 | ≥2000 | 15000±500 |
Micro Loop | LW3252 | 0.50 | 0.70 | ≥1800 | 15000±500 |
Medium Loop (Flat Wire) | JW3868 | 0.48*0.82 | 0.80 | ≥2000 | 10000±500 |
If you have any special requirement. We'll provide a formal quotation list after your inquiry received.
2.Could you provide free sample ?
Yes, we can provide free sample together with our catalogue for A Deepen understanding to fabric . But the courier charge will on your side. We'll send back the courier charge from the order you placed.
Contact Us
Jenny
Cell:+86 150 5082 6262
www.sunhongfabric.com
Prod Model: | SH-SDF110 |
---|---|
Fabric Name: | Spiral Dryer Fabric |
Fabric Material: | Polyester |
Weave Type: | Flat, Round, Spiral |
Fabric Color: | Make-to-Order |
Fabric Uasge: | Paper Industry, Drying, Conveyor Belt and etc. |
Fabric Application: | Tissue, Packing, Cultural, Special Paper and etc. |
