Portable Computerized Embroidery Machine for Small Business
| Price: |
US $ 4000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Portable Computerized Embroidery Machine for Small Business
I. Main features
1. Suitable for flat embroidery, cap embroidery, T-shirt embroidery, sequin embroidery and finished
garments embroidery
2. Automatic thread trimmer
3. Maximum speed 1200 SPM
4.270° Wide cap frame unit
5. Color LCD display showing real time stitching
6. USB input port
7. Automatic color change
8. Thread break detection
9. Pre-sew design trace capable
10. Memory size 2, 000, 000 stitches
11. Emergency stop
12. Electricity: 110V/60Hz or 220V/50Hz available
13. Machine Size: 75X74X85CM and NW90KG/200Lbs
14. Built-in bobbin winder
II. New Features
1.110V or 220V self-adaptable power supply. No more external power box needed.
2. Only 150W power consumption.
3. Mainboard is built into the control panel, which reduces the possibility of damage by dust or external force.
4. Support large capacity of USB flash drive from 2GS and upwith faster data transmission and more compatibility
5. Proper shut-down function powers off only moving parts such as X&Y axis and needle bar, but still keeps
the data on screen when the emergency button is pushed.
6. Precise digital degree on stop point: Main shaft can be turned to any angle digitally with the number of
degrees shown on the screen.
7. Cap to flat (or vise versa) embroidery mode switch eliminating the possibility of hitting the frame.
8. Keeping original file names in memory makes it easy to manage designs.
9. Lay-out of keys on panel is more user-friendly.
10. Real time and date is showing on screen.
11. High speed up to 850 SPM.
12. Memory size up to 2 million stitches and 200 designs
III. Compact control panal
1. Color LCD display showing real time stitching
2. Manual Color Change
3. Function keys including Menu, Speed up and slow
4. Multi languages available
5. Frame-moving keys
6. Manual Trimming
7. Start, Stop, and emergency Stop
8. Embroidery Status down (Page Up and Page Down), USB Input,
9. DOT Key to return to 100 degrees, Parameter Settings, Clear, ESC, Enter, etc.
10. On-board lettering
11. Numeric keys for selection of needles

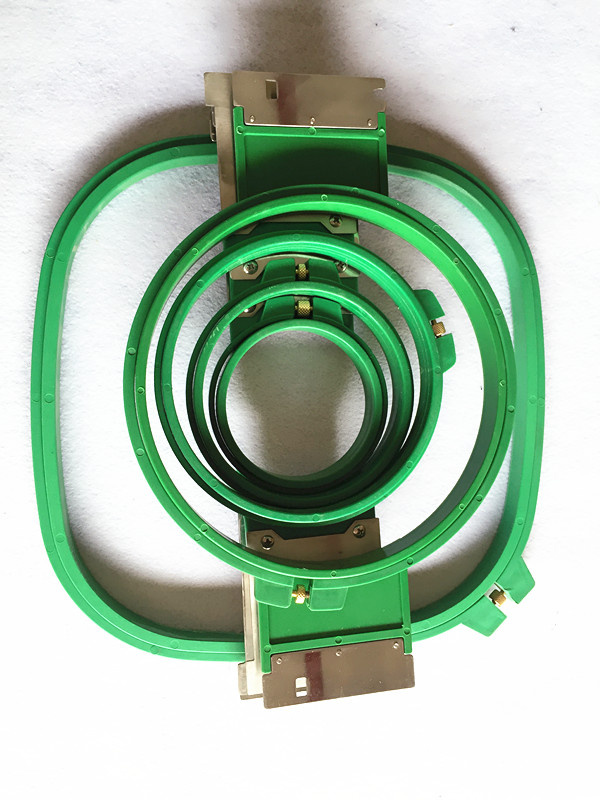

IV. Hoops/frames inclued
A. 2 x Shirt Front Round Hoop 9 cm (3.5")
B. 2.2 x Shirt Front Round Hoop 23 cm (9")
C. 2 x Shirt Front Round Hoop 12 cm (4.7")
D. 2 x Jacket Back Square Hoop 30 x 30 cm (12" x 12")
E. 2 x Shirt Front Round Hoop 15 cm (5.9")
F. 1 x Sash Frame 56 x 38 cm (22" x 15")
Needles | Head | Emb. Area (mm) | Length(mm) | Width(mm) | Height(mm) | Weight(kg) |
| 12 or 15 | 1 | 360*510 | 800 | 800 | 1600 | 150 |
| 12 or 15 | 1 | 360*1200 | 1400 | 800 | 1600 | 210 |
Price can be negotiated!

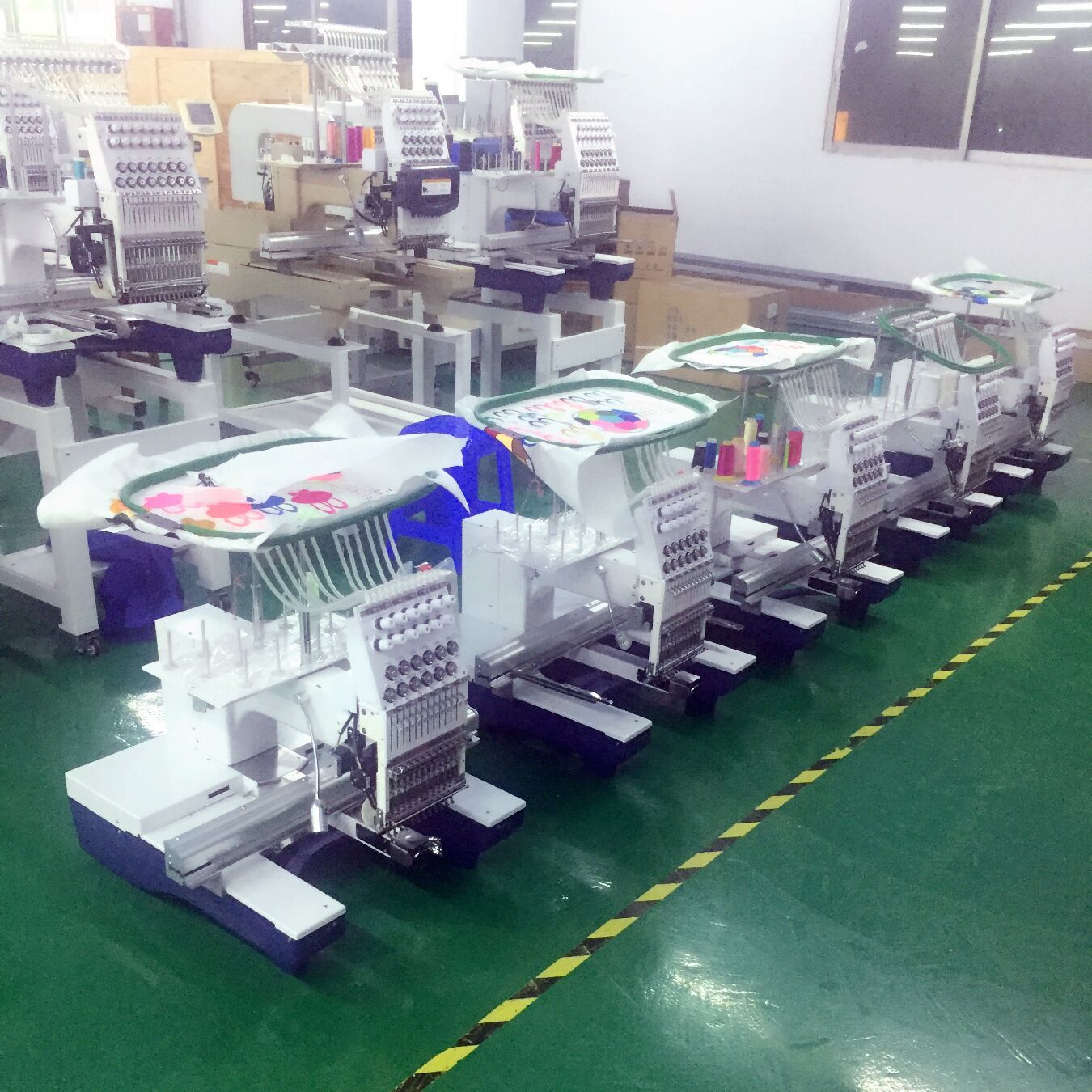

Welcome to visit our factory and office united in Shenzhen, China.
Look for agent/distributor all over the world!
Contact person: Nicki Wangnumber: 008618696118389Company Name: Shenzhen Wanyang Technology Co., Ltd
Address: 2F, Building B, No.1, Tiankuo Road, Guangming New District,
Shenzhen, China
Brand: WONYO
| Prod Model: |
Wy1201CS/Wy1501CS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
24 Months |
| Main Motor: |
Panasonic Servo Motor |
| Xy Motor: |
Stepper Motor |
| Rail: |
Linear Rail |
| Belt: |
Italy Brand Belt |
| Bobbin Core: |
Aluminum Bobbin Core |
| Embroidery Size: |
360*510/360*1200mm |
| Control Panel: |
7 Inch Dahao/Topwisdom LCD Screen with 12 Language |
| Needles: |
Groz-Beckert Needles |
SHENZHEN WANYANG TECHNOLOGY C0., Ltd
Is an enterprise which comprises of highly advanced technology that integrates manufacturing design with sales and marketing.
We adhere to our value statement and aim to acheive our missions by offering high quality products and services beyond customer expectations.
We specialises in all multi-functional use of embroidery such as single and muilt-head embroidery machines; Cap; Shoes and other finished garment embroidery. Our extensive knowledge in laser cutting equipments helps to complete and lead WONYO into the international markets.
WONYO VALUES:
At WONYO, we serve everyday with INTEGRITY,
Manufacture with INNOVATION,
Work as a TEAM, PASSION for what we do,
Create a WIN-WIN POLICY and
APPRECIATE all that support us.
MISSION:
To Deliver a customized products and service that reaches beyond sustomer expectation.
To realize and maintain both internal and external partnerships, industry knowledge and future potentials.
To acheive our yearly growth targets and increase our international foot-prints.
Customizing with every stitch
