Product Description
PTFE Coated Fiberglass has slippery smooth and nonstick surfacem resist high tempearature from -70-260C, ideal to use as Teflon Bottom Table Wrap
PTFE Coated Fiberglass is made of weaved high quality glassfiber yarn and coated with fine PTFE teflon resin, the fabric can resist high temperature from -70-260 C degree, it has excellent smooth and glossy surface which offers good release property, widely used for mould release and as conveyor belt for drying machine and sealing machine.
Product Details| Product name | PTFE coated fiberglass |
| Material | PTFE teflon coated glassfiber fabric |
| Thickness | 0.13mm |
| Color | Brown |
| Max width | 1250mm |
| Length | No limited |
| Temperature range | -70-360C |
PropertiesPTFE coated galss fabric is high temperature resist, excellent release property during -70-360C degree
PTFE coated fabric is non stick surface, anything adheres on the surface are easy to clean
Teflon fabric protector is dimensional stable and low friction
Chemical corrosion resistant
Microwave and UV resistance
FDA nad LFGB approval
Application0.11mm material made to teflon pillows and teflon platen covers for garment printing
0.25mm material as laminated sheet in solar panel industry
0.13mm material made to fusing machine belt used for bag sealing
Made to conveyor belt used on drying machine for garment and food
As oven liner, baking liner for bakery because it is food grade, passed FDA, LFGB
Other specifications for you to choose from| MODEL | Color | Thickness | Max Width | Weight | Tensile Strength | TemperatureRange |
| YS-9008AJ | Brown | 0.08mm | 1250mm | 158± 5g/m² | 500/480N/50mm | -140~360 |
| YS-9008BJ | Black | 0.08mm | 1250mm | 160± 5g/m² | 620/460N/50mm | -140~360 |
| YS-9008Y | Black | 0.08mm | 1250mm | 180± 5g/m² | 930/720N/50mm | -140~360 |
| YS-9013AJ | Brown | 0.13mm | 1250mm | 260± 5g/m² | 1100/1000N/50mm | -140~360 |
| YS-9013BJ | Black | 0.13mm | 1250mm | 275± 5g/m² | 1000/960N/50mm | -140~360 |
| YS-9013Y | Black | 0.13mm | 1250mm | 290± 5g/m² | 910/880N/50mm | -140~360 |
| YS-9018AJ | Brown | 0.18mm | 1250mm | 395± 5g/m² | 1600/1600N/50mm | -140~360 |
| YS-9018BJ | Black | 0.18mm | 1250mm | 415± 5g/m² | 1500/1500N/50mm | -140~360 |
| YS-9025AJ | Brown | 0.25mm | 2800mm | 490± 5g/m² | 2700/2600N/50mm | -140~360 |
| YS-9025BJ | Black | 0.25mm | 2800mm | 510± 5g/m² | 2100/1800N/50mm | -140~360 |
| YS-9035AJ | Brown | 0.35mm | 3200mm | 660± 5g/m² | 2700/2600N/50mm | -140~360 |
| YS-9035BJ | Black | 0.35mm | 3200mm | 680± 5g/m² | 2100/2200N/50mm | -140~360 |
| YS-9040AJ | Brown | 0.40mm | 3500mm | 780± 5g/m² | 2900/3100N/50mm | -140~360 |
| YS-9040BJ | Black | 0.40mm | 3500mm | 820± 5g/m² | 3000/2900N/50mm | -140~360 |
| YS-9065AJ | Brown | 0.65mm | 4000mm | 1150±5g/m² | 4200/4000N/50mm | -140~360 |
| YS-9090AJ | Brown | 0.90mm | 4000mm | 1550±5g/m² | 6300/5800N/50mm | -140~360 |
| YS-9090BJ | Black | 0.90mm | 4000mm | 1650±5g/m² | 6150/5300N/50mm | -140~360 |
Packing and DeliveryEach ptfe fabric roll wraped with airbubble film, put into export carton, then all the cartons together on pallet
For small quantity, delivery via DHL, FEDEX, UPS
For large quantity, ship via sea LCL or FCL
Our Company

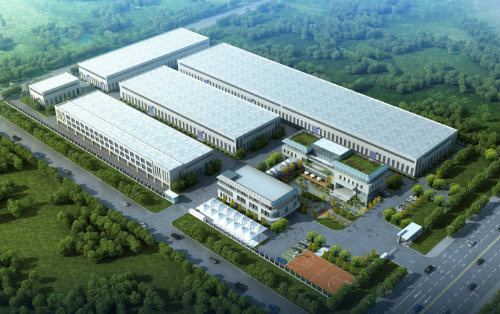

Taixing Youngsun Fl-Plastics Co.,Ltd is established in 2006, covers an area of more than 54000 square meter with registration capital of 40 million RMB.Youngsun is manufacturer specialized in PTFE Glassfiber Fabric, PTFE Coated Fiberglass, PTFE Mesh Conveyor Belt. In order to enssure product quality, esone import advanced vertical coating equipments, ultra-wide and high speed automatic weaving machine from Germany.
Taixing Youngsun FL-Plastics Co., Ltd. is a professional manufacturer and exporter of fluorescent lamp starters and PTFE thread seal tape. With over 10 years of manufacturing experience, all of our products are made in accordance with international quality standards. We export to clients throughout Europe, the Middle East, Africa, Southeast Asia, America, and Australia with annual sales volume reaching USD4, 000, 000.
We operate an 8, 000 square meter factory workshop equipped with advanced production and testing equipment sourced from Taiwan, Korea, and Italy. We also have our own printing factory and packing workshop, which enable us to carry out all design, production, and packing entirely in-house according to customer's specific requirements. Thus we are able to control our costs and pass our savings on to our customers.
For many years, our company has been paying close attention to scientific management and we are always ready to provide first-class efficient service for our customers. To better meet the needs of customers, we have established Taixing Youngsun International Trading Co., Ltd. To source other goods in China for our customers.
For more information about any of our series, or to place your requirement, please feel free to contact us directly. We hope to receive your detailed inquiry soon, and are looking forward to having the chance of cooperating with you in the near future.
