Price: | US $ 60000-80000/Set |
---|---|
Min Order: | 1/Set |
Pay Type: | L/C,T/T |
Prod Model: | SJ-100 |
---|---|
Certificate: | Ce,ISO:9001 |
Installation Charge: | Free |
Plastic Processed: | PVC |
Feeding Mode: | Multiple Feed |
Assembly Structure: | Integral Type Extruder |
Screw: | Single-Screw |
Engagement System: | Full Intermeshing |
Screw Channel Structure: | Deep Screw |
Exhaust: | Don't Exhaust |
Automation: | Automatic |
Computerized: | Computerized |
Type: | Mat Extruder |

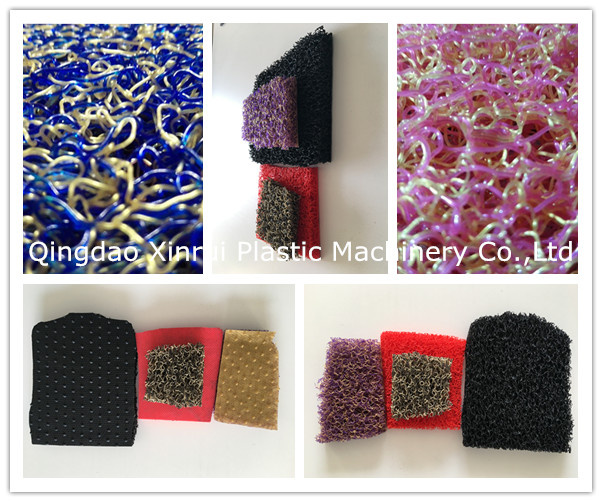

Product Type: | PVC Mat |
1 | SJ-100/30 single screw extruder | TWO SETS |
2 | Hydraulic net changer | TWO SETS |
3 | Mould&silk plate | ONE SET |
4 | Forming water tank | ONE SET |
5 | Drying oven | ONE SET |
6 | Glue spreader for coil | ONE SET |
7 | Drying oven | ONE SET |
8 | Haul-off machine | ONE SET |
9 | Cutting machine&Winder | ONE SET |

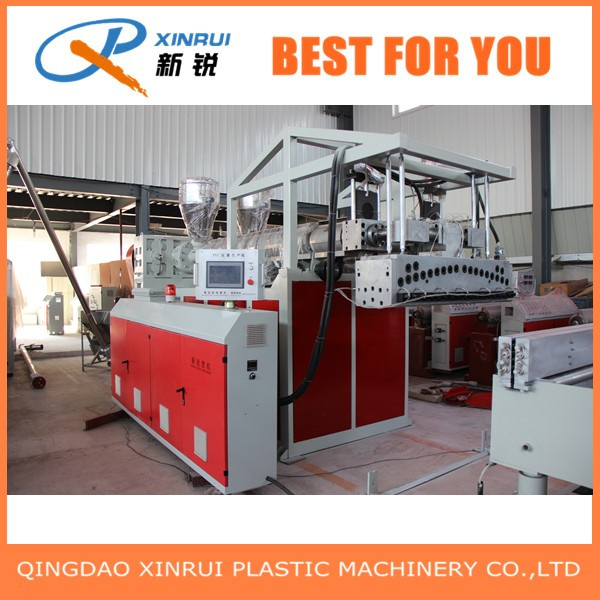

A. Extrusion machine
1. Diameter: 120 mm, length-diameter ratio:30:1;
2. Material of screw & feeding barrel: 38CrMoALA, chromium-plating polishing after nitridation;
3. Reduction drive: dedicated plastic machinery speed reducer with hard gear surface
4. Heating power: 50 kw, aluminum casting infra-red heating that is totally-enclosed, with wind groove equipped ;
5. Cooling fan: 250 wW*6, with low noise fan;
6. Temperature controller brand: OMRON
7. Motor power: 75 kw, frequency conversion control
B. Mould
1. Material: 5 CrNiMo , after forged, tempered, chromed and polished procession.
2. Product width: 1220 mm;
3. Bore diameter of spinneret plate: customized according to client's product sample
4. Heating power: 20 kw.
C. Wire forming machine
1. Heating method: electric heating by stainless steel heating tube, power: 1500W *2;
2. Cooling method: water;
3. The machine is adjustable(up and down or back and forth)
D. Water flapping machine
1. Adopt steel tube water flapping
E. Wire conveying machine
Adopt frequency control, steel pipe type conveyor.
F. Backing molding machine
Adopt roller blade coating method, coating width and backing thickness are both adjustable.
G. 6.2-meter dryer
1. Heating method: by heating tube, power: 25 kw;
2. Length: 6200 mm, steel plate welding;
3. Hot air circulation: induced draft fan power: 11 kw * 1set
H. Wire glue dipping and pasting device
1. material of glue dipping barrel: stainless steel plate
2. glue-pasting roller material: steel roller with chromium plating surface, diameter: 200 mm
3. Transmission power: 2.2 kw, frequency speed control system.
I. Hot air circulation duplicate re-shaping box
1. Heating method: by heating tube, power of 100 kw;
2. Length: 10000mm, steel plate welding;
3. Hot air circulation, induced draft fan power: 7.5kw * 2sets;
J. Tractor
1. Traction roller diameter: 180 mm, length: 1400 mm;
2. Traction power: 2.2 kw, frequency speed control
K. Bead cutter
frequency speed control in traction, hobbing cutter equipped in bead cutting
L. Length measurer
M. Coiler

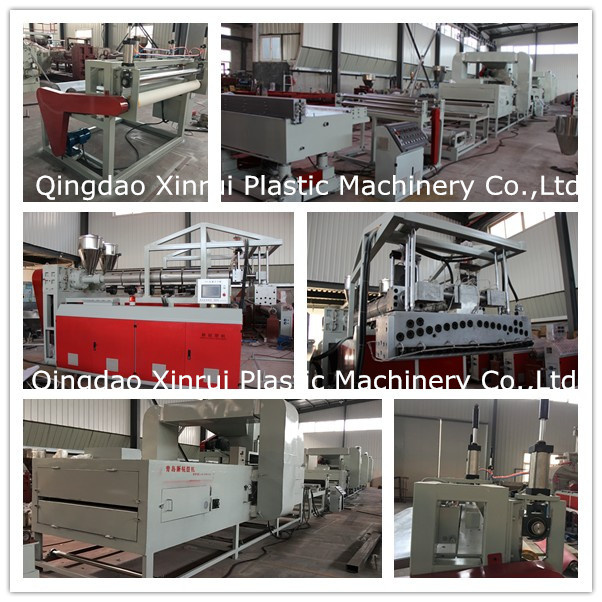

PARTS OF PRODUCTION LINE:
