PVC Coated Gabion Box / Galvanized Gabion Mattress
Price: |
US $ 1.42-1.61/Square Meter |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
10/Square Meter |
Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Prod Model: |
CT-1(Gabion) |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Mesh Hole: |
70*90mm 80*100mm 100*120mm |
Selvedge: |
2.5mm-4.5mm |
Color Options: |
Green Black Grey or Customize |
Life: |
70-80years |
Advantage: |
Cheap Price, Fast Delivery |
Products Name: |
PVC Gabion Box |
Export Markets: |
Global |
Service: |
Best Service |
Sample: |
Free |
Material: |
PVC Coated Steel Wire |
Application: |
Plants Protection Net |
Hole Shape: |
Hexagonal |
Surface Treatment: |
PVC Coated |
Product Description

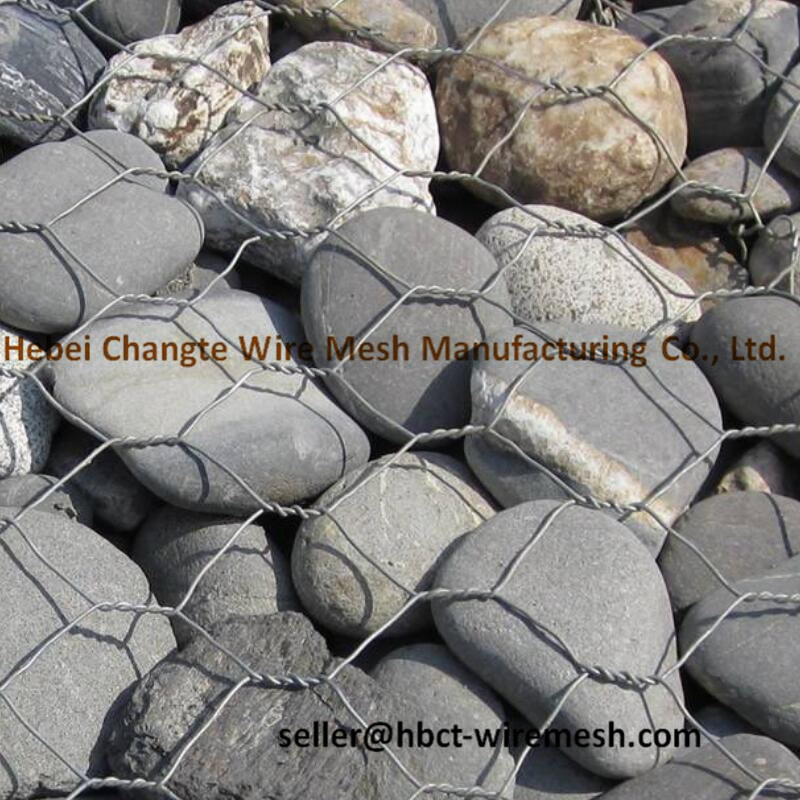

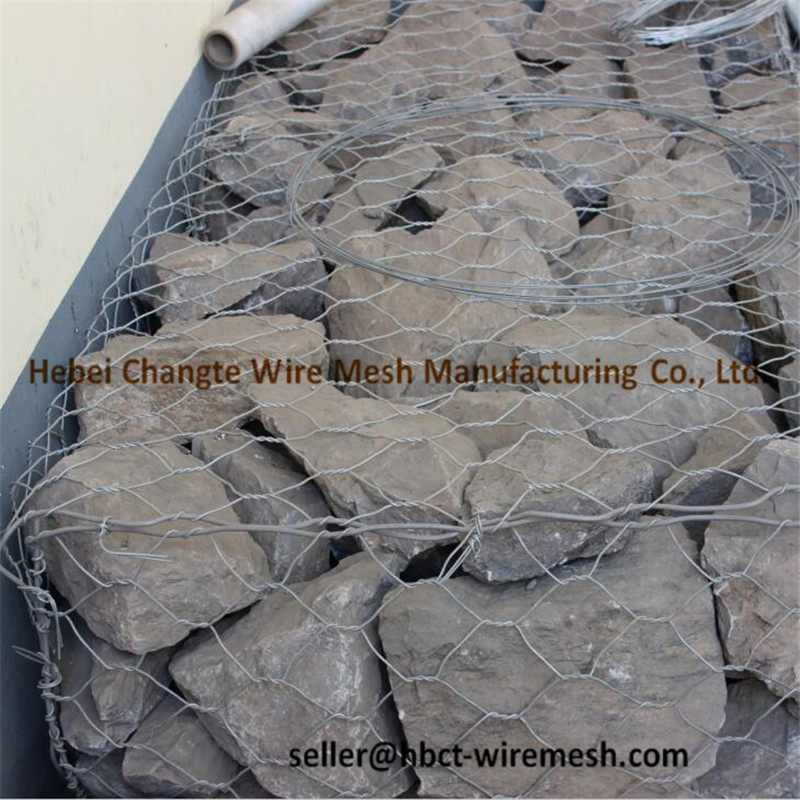

Gabion wall, gabion box, gabion basket, gabion stone, stone cage for retaining wall, gabion mattress
Custom products& standard
PVC coated with UV stabilizer
Provide any size
Available in 5 finishes: Galvanized steel and PVC coated, High zinc-aluminium alloy
Gabions are divided into cells with diaphragms(usually spaced at 1 meter or 3' intervals), whose function is to reinforce the structure. The mesh(except for diaphragms )is reinforced on all edges with wires of a larger diameter to strengthen the gabions and facilitate the assembly and installation.
Applications:
1. Controlling and leading the river and flood.
2. Flood discharge and lead flow.
3. Rock fall defending.
4. Preventing the water and soil lost.
5. Protecting the bridge.
6. Reinforce fabric.
7. Seashore recovery project.
8. Seaport project.
Advantages:
1. Economic. Just put the stone into the gabion and seal.
2. Easily construct, no special technology needed.
3. Strong capacity of withstand nature destroy, rust-resistance and atrocious weather resistance.
4. Affording Large scale distortion, but never be defeated.
5. The slit between the mesh and stone is good for the growth, which can be the part of the environment around.
6. Excellent Penetrability, which can prevent from the whist by liquid.
7. Saving the transport costs. Which can fold while loading and transport, then assemble Galfan Gabions Mesh Standard |
Opening (mm) | Wire Diameter(Metal Wire) (mm) | Wire Diameter / Inner/Outside(mm) | Strands |
60X80 | 2.0-2.8 | 2.0/3.0-2.5/3.5 | 3 |
80X100 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
80X120 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
100X120 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
100X150 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
120X150 | 2.0-4.0 | 2.0/3.0-3.0/4.0 | 3 |
