PVC Electrical 360 Degree Rotation Mannequin Stand Actuator Butterfly Valve
| Price: |
US $ 120/Piece |
| Min Order: |
20/Piece |
| Pay Type: |
L/C,T/T,Western Union |

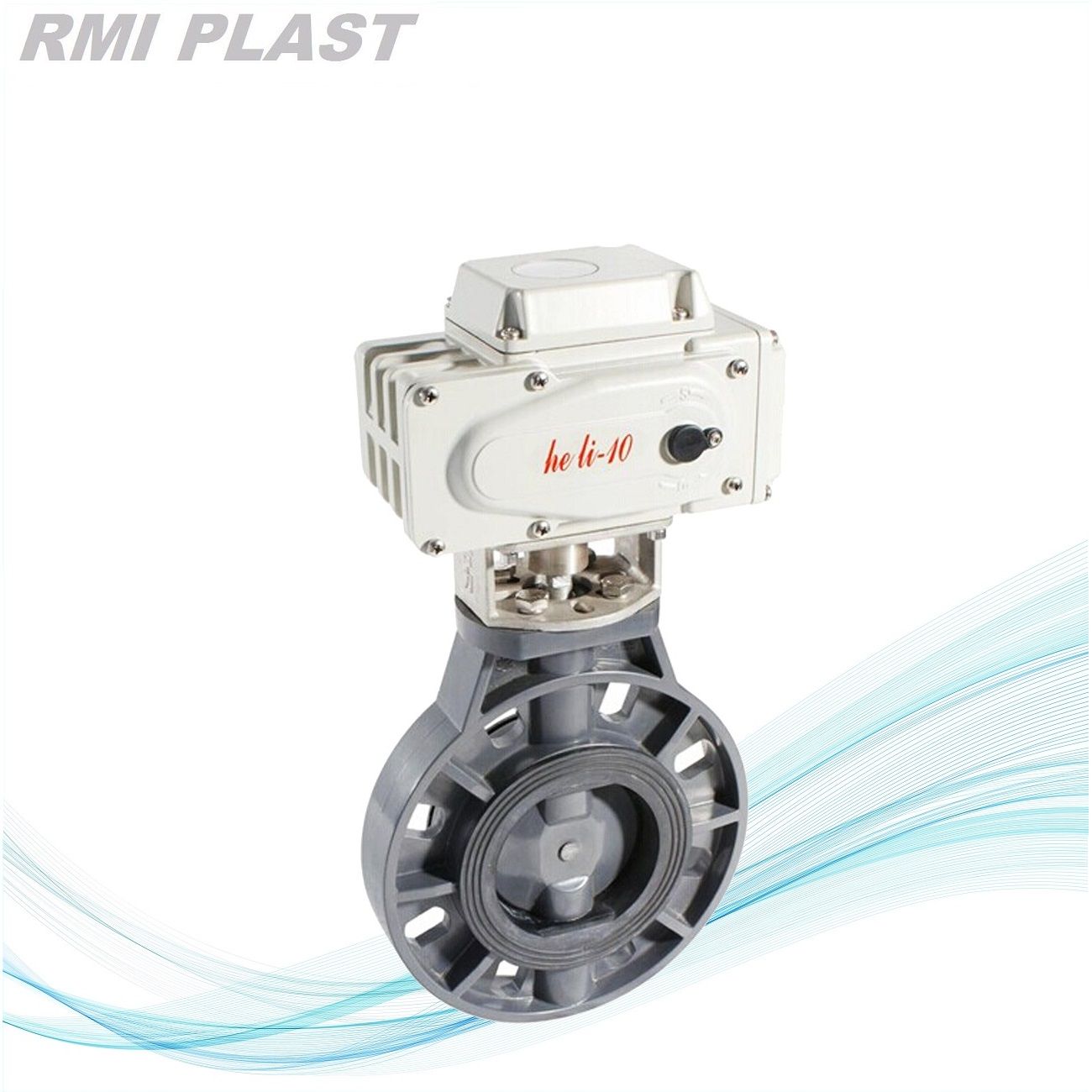

Product Name:CPVC PPH PVDF PVC plastic electric butterfly valvePV123 is electrical operation butterfly valve, open/shut and regulating type actuators for optional, different
materials of valves are available.

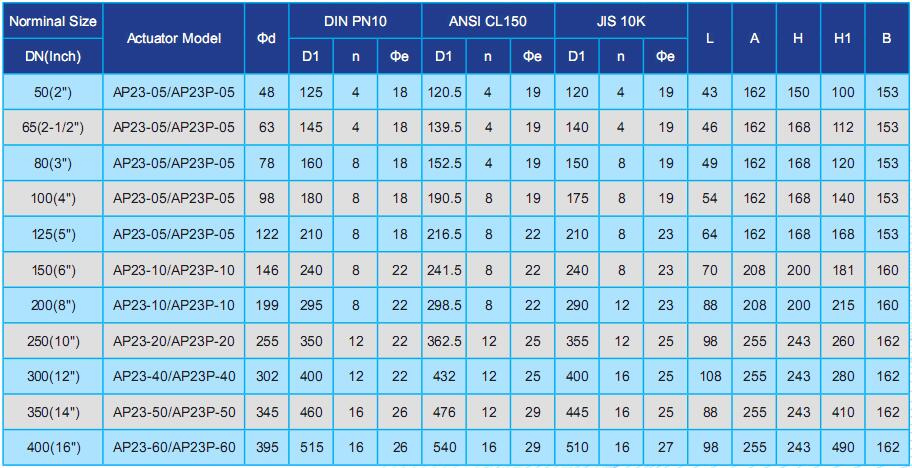

Basic specificationSize:DN50~DN400 (2 inch ~ 16 inch)
Wafer connection:DIN PN10; ANSI CL150; JIS 10K
Material:PVC-U;PVC-C;PVDF;PP-GF;PP-H
Actuator:Electrical
Operating type:Open/Shut, Regulating
Power supply:DC24V;AC220V;AC380V
Feature of valveDifferent materials of butterfl y valve for optional.
Open/Shut and regulating type of actuator for optional.
Different power supply of actuator for optional.
Other accessories are optional if request.
| Prod Model: |
RPV123 |
| Acting Type: |
Open/Close, Regulating |
| Power: |
DC24V,AC220V,AC380V |
| Limit Switch: |
Inside |
| Connection Form: |
Lug Support |
| Structure: |
Centre Sealing |
| Seal Form: |
Force Sealed |
| Working Temperature: |
Normal Temperature (',-40??C
|
| Application: |
Water Usage |
| Work Pressure: |
Pn10 |
| Material Of Seal Surface: |
EPDM,FPM |
| Valve Body: |
Plastic Injection |
Ningbo RMI Plastic Co., Ltd is a professional manufacturer and supplier of plastic piping systems and piping materials, provide professional technical support and supply high quality piping materials for industrial anticorrosive application, water treatment system, irrigation systems, etc.
Our factory is located in city of Ningbo, Zhejiang Province of China, plant covers an area of 68000 m2 with ISO9001, ISO14001, ISO18001 verified. We get 15 professional engineers and 100 experienced workers. Which support our quality improving, technical innovation and service satisfied.
RMI products cover full range of plastic valves, pipes, fittings and accessories by different materials of PVDF, PVC, PVC-C, PP, PP-H, PP-GF, FRP, EPDM, VITON, PTFE. Over 30 kinds different valves include diaphragm valve, ball valve, check valve, butterfly valve, foot valve, globe valve, etc. Size from 1/2" up to 32", following standard of DIN, JIS, ANSI, CNS, ISO. 8 different materials of pipes and fittings diameter from 16mm to 600mm.
With high quality products and professional technical support, we serve more than 200 customers in different industrials and areas all around the world, and win good reputation. Especially in steel industrial, chlor alkali industry, metallurgical industry, papermaking industry, pharmaceutical factory, electroplating factory, mining plant, fish farm, etc.
We are continual working for the target of quality improving, technical innovation and service satisfied. Aim to provide customer durable and efficient products to ensure the piping system working safer and longer.
