Product DescriptionRRD-SERVO SERVO Type High Speed Door
Main features:automatic, super fast opening and closing, reducing leakage of heat and air, heat preservation, hygienic, flexible PVC panel and beautiful, various colors available
Application scope:inner and outer doors of all kinds of factories especially fit for food factory, cold storage, frequent logistics, chemical industry
Technical data:| Max dimension: | 5000mm wide*6000mm high |
| Max opening Speed: | 2.2m/s |
| Max closing speed: | 1.2m/s |
| Wind resistance: | Beaufort scale 10 (25m/s) |
| Power supply: | 1-phase 220±10%V,50/60HZ, or
3-phase 380V±10%V,50/60HZ |
| Protection level of electric: | IP55 |
| Available colors of fabric: | Yellow, Blue, Red, Grey, White, Clear |
Technical Descriptions:1. Motor
FX motor. Work power source 220V/50Hz or 380V/50Hz. The power 0.55-1.5KW; F: IP55. Operating temperature: -30-60 degree Celsius. With more accurate limiting, higher running speed and longer work life than traditional brake motor.
2. Control panel
FX control panel. With more accurate controlling of motor running than traditional encoder control. And Human-Machine Interface display is equipped, to make the daily operation and setting much easier. There is Fault Self-checking program and shows error codes when there is fault.3. Steel structure
It includes two guide rails, one top cover and one motor cover.
Standard material: Galvanized steel, surface is painted; Optional material: 304 stainless steel
Thickness: 2.0mm for guide rails, 1.5mm for top cover and motor cover.4. PVC Fabric:
Material: PVC Fabric; Thickness available:0.8mm, 1.0mm,1.2mm and 1.5mm; Colors available: Blue/Yellow/ Red/Grey/White/Full Clear. The price of Full clear is higher than others by 5%. All other colors are with same price.5. Safety performance
A. Safety photo cell.
B. Proximity sensor, at the bottom.
C. Alarm light for caution.
6. Standard operation method
Control buttons of both sides.
7. Optional operation methods
One-side radar/ Remote control(2 control panels) / One-side vehicle detector / One-side pull switch /; Interlocking
8. Opening speed
Adjustable between 1.0m/s and 2.2m/s
9. Emergency opening
Manual swing bar available to open the door in emergency case of power failure

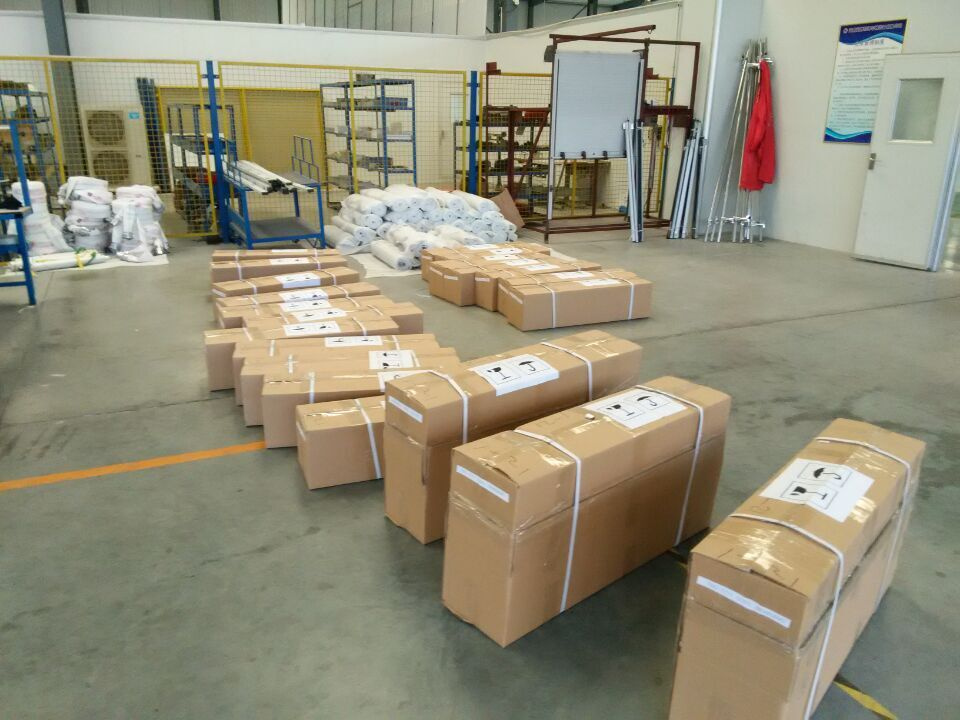

Packing standard for export:Step.1 Pack all door parts with cardboard or multi-layer plastic bubble film, to protect them and avoid dmages during shipment.
Step.2 Load all well-packed parts into wood box, to offer additonal protection and avoid missing of small parts. Wood box is made of fumigation-free material.
FAQ:1. Why to choose your doors ?
a. More than 20 years production experience years since the year 1995.
b. More than 10 years export experience since the year 2006.
c. Not only low-price, but also high quality oriented, reducing your future long-term cost of maintenance.
d. Patient after-sales service about local installation guide and daily use guide.
e. Sucessful history in big clients, like Bayer Pharmaceutical, P&G, Philips, 3M, Volkswagen, ENI, and Nestle.
2. How long is the lead time ?
15 days.
3. Can we buy a sample door as trial order first ?
Yes, we can offer a sample door with reasonable price. You can test with it and check our quality.
4. What service do you offer besides product itself?
a. Professional advice on choice of door types and functions.
b. Strict packing procedure specially for export.
c. Arrangment and close follow of sea shipment.
d. Installation guide service by email, Skype or phone. And site guide service available if you need.
e. English version installation manual and user manual.
f. English drawings of doors.
g. 12 month quality guarantee since arrival date.
5. Can we become your agent of doors at our local place ?
Yes, we welcome you to join our partnership. But we need check first to avoid that we already have an agent in your local area.
