PVDF Coated Aluminium Honeycomb Panels Wall Cladding
Price: |
US $ 26-30/Square Meter |
Min Order: |
500/Square Meter |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
General Information

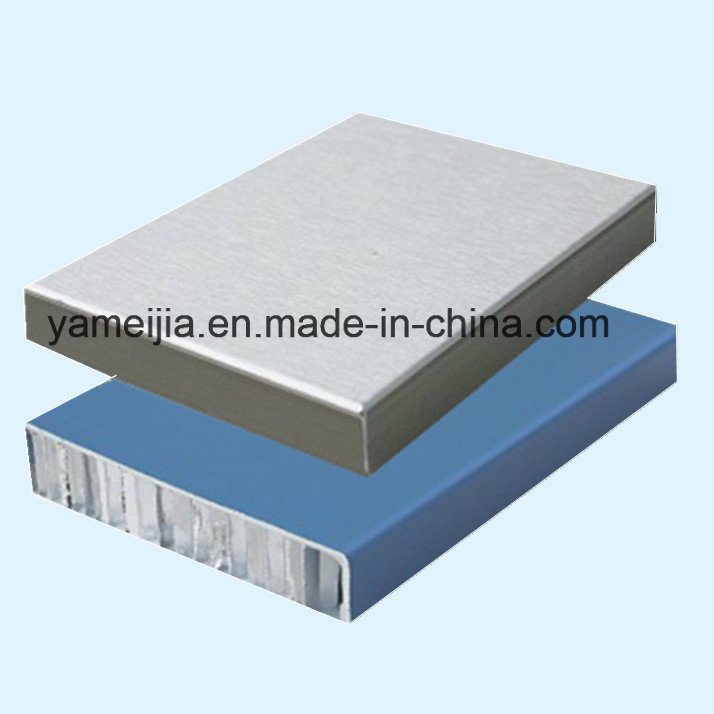

Aluminum honeycomb panel is sandwich panel bonded with aluminium face material and with a core in aluminium honeycomb. It offers high mechanical properties and good fire performances. The aluminum face material can be pre-painted in different RAL colors. The aluminium faces (skins) are available in different thicknesses and coatings, anodized or with primer.
The aluminum skin we use 3003 or 5052 alloy according to customer's different applications.
Specifications Available Our honeycomb panel is available in various standard thickness of 6, 8,10, 15, 20 and 25mm (maximum thickness go up to 200mm) and is supplied at standard widths of 1220mm or 1500mm and maximum length go up to 10000mm. The production of special is possible.
Aluminum Sheet/ Aluminum Alloy
Available thickness: 0.5mm, 0.7mm, 0.8mm, 0.9mm, 1.0mm.
Standard Aluminum Alloy: A3003
Custom Made/ Special Size are available

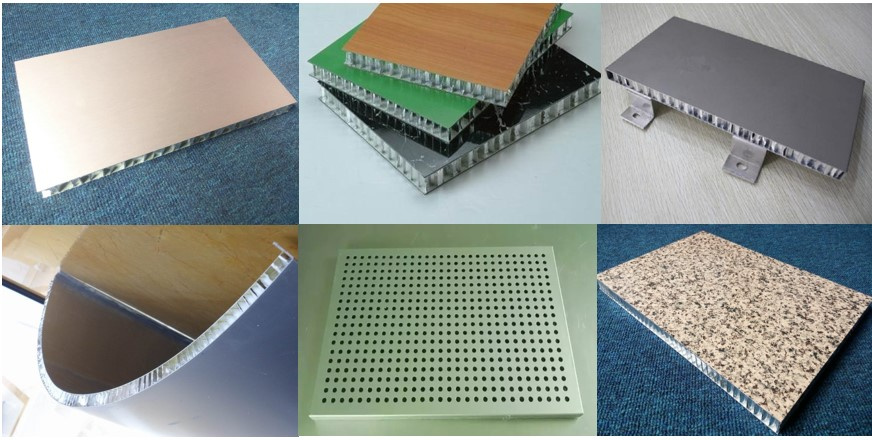

Colors
30 Standard colors/ Timber Series/ Stone Series/ Metal Series/ Anodize Colors/ Stylish Coat/ Stylish Anodize/ Sparking
Any Color in RAL chart is available.
Coating
Honeycomb Panels used for Interior and Exterior Walls are pre-coated.
* PE(Polyester) for interior use
* PVDF(Fluorocarbon) for exterior use
* Nano

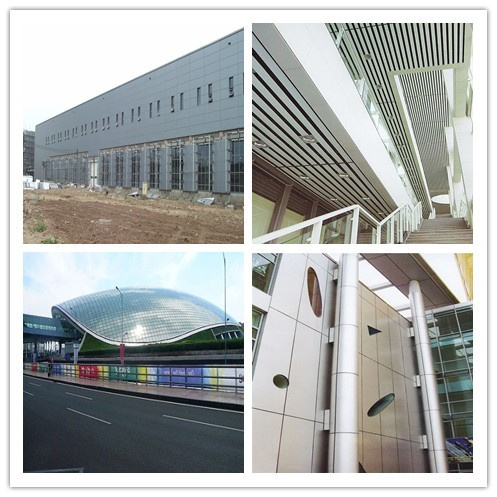

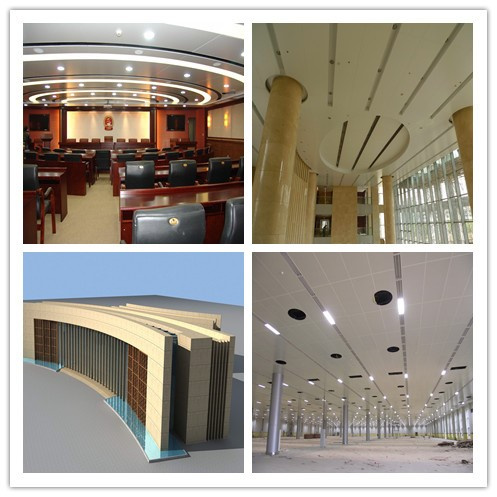

Applications
Aluminum honeycomb panels can be used in a variety of fields including wall materials, interior decoration, ceiling, partition, furniture industry, ship hull building and ship decoration, vehicle building, lift and elevator, Train and high speed subway.
Characteristics:
1. Excellent strength
2. Superb flatness
3. Long Life, PVDF coated honeycomb panel is durable for 20 years.
4. Light weight
5. Fire retardant
6. Environmental and completely recyclable
7. Sound proof and thermal insulation
8. Weather Resistance Technical Data:Type | Thickness | Thickness of Al front sheet | Thickness of Al Back sheet | Weight | Rigidity E-I | Section Modulus W |
YMJ-01 | 6.0mm | 0.7mm | 0.7mm | 5.0kg/ m2 | 0.71kNm2 /m | 2.6cm3 /m |
YMJ-02 | 10mm | 1.0mm | 0.5mm | 5.5kg/ m2 | 1.73kNm2 /m | 4.7cm3 /m |
YMJ-03 | 10mm | 1.0mm | 0.7mm | 6.0kg/ m2 | 2.19kNm2 /m | 4.6cm3 /m |
YMJ-04 | 15mm | 1.0mm | 1.0mm | 6.9kg/ m2 | 7.55kNm2 /m | 14.0cm3 /m |
YMJ-05 | 50mm | 1.0mm | 1.0mm | 7.5kg/ m2 | 13.90kNm2 /m | 19.0cm3 /m |
YMJ-06 | 25mm | 1.0mm | 1.0mm | 7.9kg/ m2 | 22.17kNm2 /m | 24.0cm3 /m |

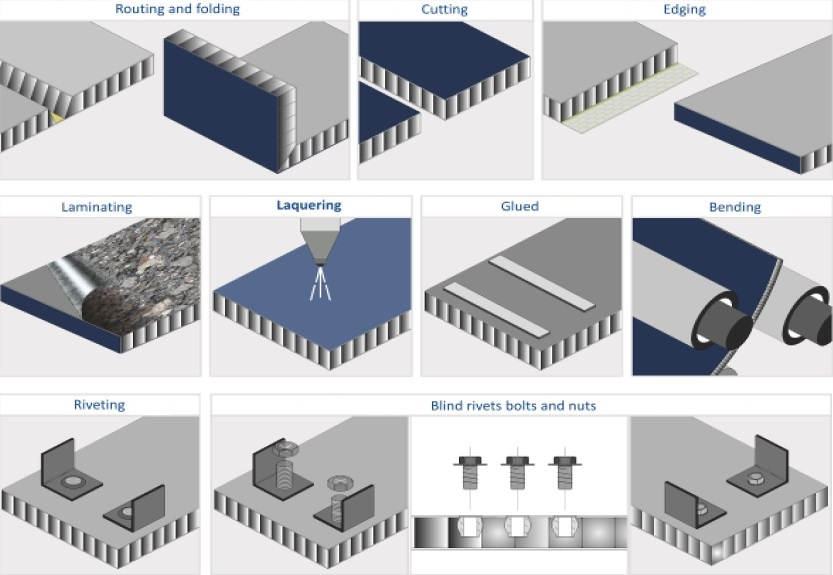

Process of aluminium honeycomb panel wall cladding

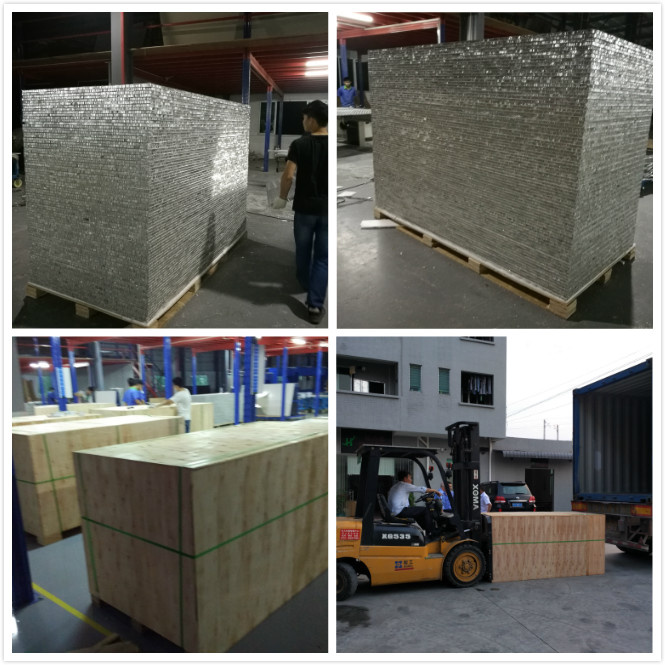

Packaging & Delivery:
There are plastic protective film on panel surface, then panels are piled flatly on plywood crates. Delivery time:
Regular lead time: 10-20 days
Peak season lead time: 30 days.
Off season lead time: 10 working days
Prod Model: |
AHP092 |
Panel Thickness: |
25mm, Any Made to Order Thickness |
Skin Thickness: |
1.0mm |
Surface Finish: |
PVDF Coating |
Panel Size: |
1220*2440, Size Can Be Customized |
Alloy Type: |
3003h24 |
Core Material: |
Aluminum Honeycomb Core |
Weight: |
6kg/M2 |
Glue Used: |
Two Component Expoxy Adhesive |
Certificate: |
ISO, SGS, TUV, BV, Lr |
Application: |
Exterior Wall Cladding |
Type: |
Overhang Curtain Wall |
Open: |
Closed |
Material: |
Aluminum Alloy |
Glass Curtain Wall Kind: |
Frame Glass Curtain Wall |
Frame Curtain Wall Kind: |
Hidden Frame |
Supporting Construction: |
Frame Type |
Number Of Layers: |
Double |
Metal Curtain Wall Kind: |
Aluminum Honeycomb Panel Curtain Wall |
Shape: |
Standard Plane |
Usage: |
Interior Wall |
Specila Function: |
Intelligent Curtain Wall |
Yameijia is one of the largest specialty manufacturers of aluminium composite products and has the most complete products portfolio in composite panel industry. Our main products include but not limit to aluminium honeycomb cores, aluminum corrugated cores, aluminum honeycomb panels, solid aluminum sheet, perforated aluminum ceilings, wall claddings, stone composite panels, FRP honeycomb panels, Marine panels, corrugated panels, ceramic honeycomb composite panels and stainless steel honeycomb panels. Our aluminum composite products can be widely used in building, decoration, furniture, domestic appliance, communication and transportation as well as marine and aerospace fields.
Our roots trace back to the commercialization of aluminum composite panels at the beginning of 21 century. Now the factory covers an area of 30, 000square meters, and equipped with premium automatic production machines and advanced testing machines. More than 300 experienced workers, team of engineers and sales are devoted to providing quality products and professional service for you.
With many years of development, Yameijia has gained much trust and confidence from our customers both at home and abroad with premium quality and professional after-sales service. Successful projects include Guangzhou metro station, IPM Mutli-sport Pavillion, China Construction Bank Nanhai branch, Chengdu hospital, Guangzhou new international airport, Commercial vessel for 2016 Brazil Olympic Games.
Why choose us?
1. Our roots trace back the advent of honeycomb panels, we're a pioneer in China commercialized honeycomb composites field. Most member of our management teams have more than 15 years experience in making composite panels.
2. We have overall control over the whole production process from aluminum coils to finished panels. We have production base of aluminum coils, honeycomb cores, aluminum sheet and composite panels.
3. The expertise of our R&D team, coupled with our technological sophistication allows us to rpovide high quality products at competitive price.
4. Our products are tested by TUV Singapore, SGS, CCS, BV, LR and the factory is ISO9001 registered, so you can rest assured that our quality is guaranteed.
Our production Capacity:
Aluminum honeycomb panels: 600, 000 sqm annually;
Aluminum honeycomb core & corrugated core: 5 million sqm annually;
Stone marble, granite) & Ceramic honeycomb panel: 100, 000 sqm annually;
FRP honeycomb panel: 100, 000 SQM annually;
Rock wool Sandwich panel: 100, 000 sqm annually;
Solid aluminum sheet: 3 million sqm annually;
