Tungsten Carbide Conical Buttons
1. Application:

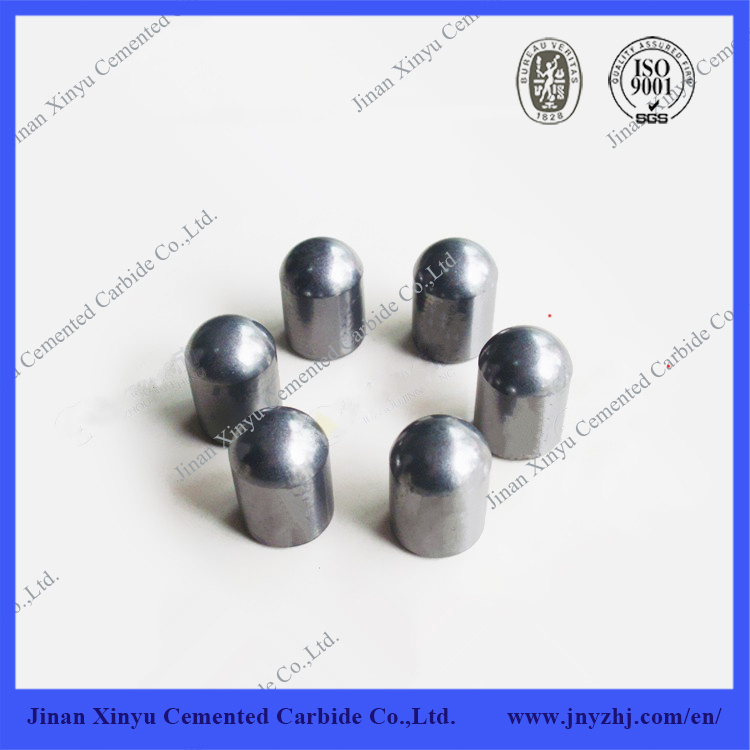

Spherical Button: Mainly used on down-the-hole/DTH drill bits for down the hole drilling.
2. Specification:
| TYPE | Dimension mm |
| D | H | SR | e |
| Q0711 | 7.25 | 11.0 | 3.7 | 1.6 |
| Q0812 | 8.25 | 12.0 | 4.4 | 1.6 |
| Q0913 | 9.25 | 13.0 | 5.0 | 1.8 |
| Q1015 | 10.25 | 15.0 | 5.5 | 1.8 |
| Q1117 | 11.30 | 17.0 | 6.0 | 2.0 |
| Q1218 | 12.35 | 18.0 | 6.6 | 2.0 |
| Q1319 | 13.35 | 19.0 | 7.0 | 2.0 |
| Q1420 | 14.35 | 20.0 | 7.7 | 2.3 |
| Q1622 | 16.35 | 22.0 | 8.8 | 2.5 |
| Q1825 | 18.25 | 25.0 | 9.2 | 2.8 |
| TYPE | Dimension mm |
| D | H | h | R | e |
| Q0810 | 8 | 10 | 7.1 | 4.2 | 1.0 |
| Q0812 | 8 | 12 | 9.1 | 4.2 | 1.0 |
| Q1010 | 10 | 10 | 6.3 | 5.2 | 1.5 |
| Q1012 | 10 | 12 | 8.3 | 5.2 | 1.5 |
| Q1014 | 10 | 14 | 10.3 | 5.2 | 1.5 |
| Q1214 | 12 | 14 | 9.4 | 6.2 | 1.5 |
| Q1216 | 12 | 16 | 11.4 | 6.2 | 1.5 |
| Q1218 | 12 | 18 | 13.4 | 6.2 | 1.5 |
| Q1416 | 14 | 16 | 10.5 | 6.2 | 1.5 |
| Q1422 | 14 | 22 | 16.5 | 7.2 | 1.5 |
We can also produce according to your drawings or samples.For more information,please kindly contact with me!
3. The Features
Material: 100% virgin raw material with submicron and average grain size.
Tolerance: strict tolerance extent control, which can reach +/-0.01mm;
Grades: various for choice: YG6, YG8, YG8C, YG11C,YG15C and so on.
Types: standard, conical, parabolic,ballistic
Physical performance: high hardness and impact toughness, very good mechanical & chemical stability
4. Tungsten Cemented Carbide Grades, Properties And Applications Recommended
Grades |
Density(g/cm³) |
Hardness(HRA) |
T·R·S(N/mm2) |
Application |
YG4C |
15.00 |
89.5 |
1800 |
Maily used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG6 |
14.80 |
89.5 |
1700 |
Maily used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG8 |
14.70 |
88.5 |
2300 |
Maily used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG8C |
14.70 |
88.0 |
2300 |
Maily used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG9C |
14.50 |
87.0 |
2400 |
Maily used as the inserts and buttons for rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
YG11C |
14.40 |
86.5 |
2450 |
Chiefly for the inserts and buttons of heavy rock drill bits and rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
YG13C |
14.30 |
86.0 |
2500 |
Mainly used as the inserts and buttons of tricone bits rotary-percussive bits and heavy rock drill bits to cut medium-hard and hard formations. |
YG15 |
14.00 |
86.5 |
2500 |
It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations. |
YG16 |
14.10-14.30 |
87.5 |
2400 |
It is mainly used for making cemented carbide substrate tips to be used in PDC cutters for excavating coal and oil field PDC bits. |
YG20 |
13.40-13.70 |
85.0 |
2254 |
Mainly for the stamping dies used in the conditions of heavy impact load and large strees. |
