Zhuzhou Jinggong Cemented Carbide Co., Ltd. >> Quality Drilling Tool Parts Tungsten Carbide Button for Mining Industry

Quality Drilling Tool Parts Tungsten Carbide Button for Mining Industry

Quality Drilling Tool Parts Tungsten Carbide Button for Mining Industry
Price: US $ 4516
Min Order: 1016
Pay Type: T/T,Western Union
Prod Model: carbide buttons
Grade: Yg6c, Yg8c, Yg11c Ect
Surface: Sandblasting or Tumbling Are Available
Package Detail: for Miningpaper Box Then Case
Model: Customized
MOQ: 10kgs
Package: Plastic Box Then Case
Color: Grey
Certifications: ISO9001 ISO14001
Quality: Top Grade
Advantage: Hip Sintering
Product Type: Tools and Hardware
Carbon Content: Low Carbon
PCD: 98mm
ET: 15mm
Material: Tungsten Carbide

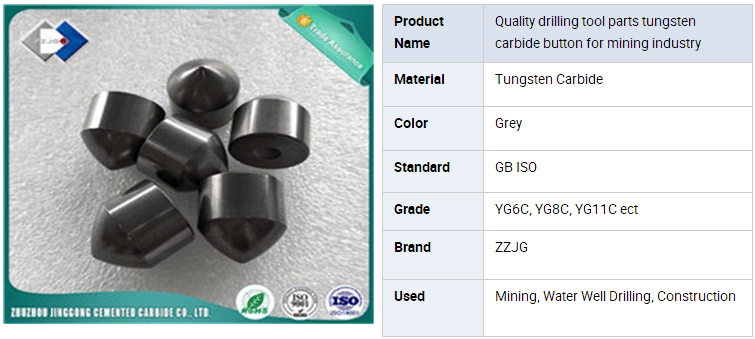

Product Description

Product Description
1. Grade: YG6C, YG8C, YG11Cect
2. Size:Customized
3. Standard: ISO GB
4. Certification: ISO9001, ROHS

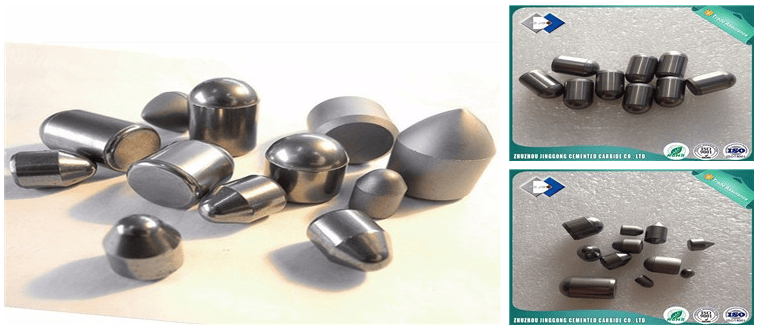

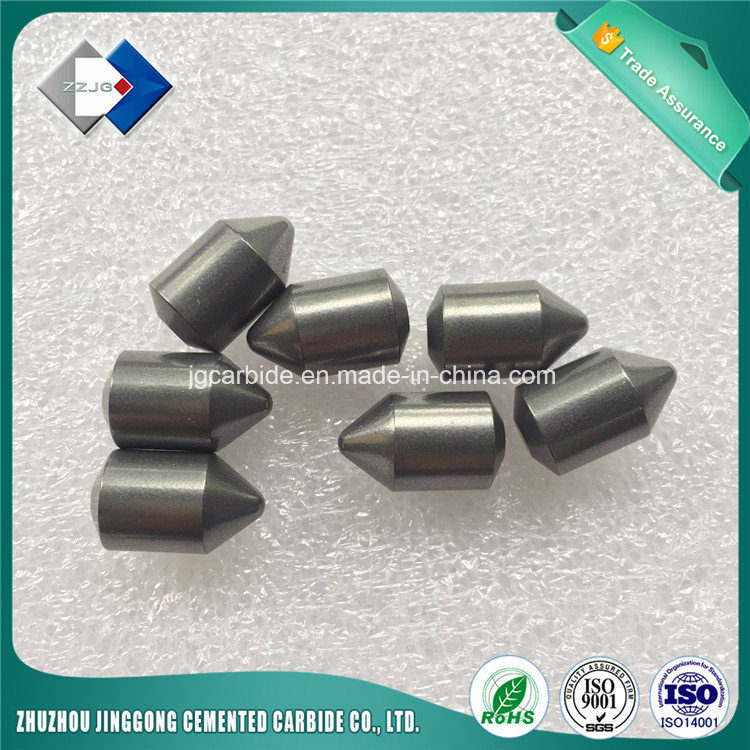

Products Show
Various type for you to choose!
As you can see , we provide various plate of cemented carbide,of course ,we can also make products according to your drawings,we believe ,the co-operation with Zhuzhou Jinggong Company must be your optimal choice!Our durable carbide with excellent fracture resistance dramatically improve tool life with high penetration rates. The consistent performance and tolerance are mainly attributed to our pure raw materials and strict ISO quality control.
All of our carbide mining tips and inserts are made from virgin raw materials and HIP sintered for the top good quality and high performance.


A.Regular packing:Paper box inside and carton outside or other suitable packing

B.Delivery time:15-25 days once confirm the order

C.Way of shipping:Express/ air/sea/land

Our guarantee:
1.       100% raw material.                                                        6. ISO9001: 2008 certificate, ISO14001:2004
2.        Sintered in HIP Furnace                                               7.Advanced technology and equipment.
3.       Size standard as per your requirements                       8. Professional manufacture for 20 years
4.       Professional suggestion on products                            9. Advance technology and equipment.
5.       Feedback within 24 hours                                            10. Quality Control System and strict inspection.

Grade details

ISO CodeGradeDensity
g/cm³
Hardness
HRA
TRS
N/mm²
Particle SizeApplication
K20YG4C1589.51600coarseSuitable for making geological prospecting drill bits and mining inserts of light-duty electrical drill bits for drilling soft rock,coal formations and frill bits for drilling un-silicated rock formations
K20JK051590.22500coarseMainly used for making medium and small sized cemented carbide buttons of tricone bits and other drilling bits for drilling soft&medium hard rock formations, also used for making carbide inserts of other dril bits
K20YK0514.990.12600coarse
K20YK0614.9912450middle
K30YG8C14.75892000coarseMainly used for making cemented carbide buttons of tricone bits and other drilling bits for drilling medium hard & hard rock formations , also used for making carbide inserts of other dril bits
K30YK0814.7892400coarse
K30YK0914.5882600coarse
K40YK1014.4588.52600middleSuitable for carbide inserts of heavy-duty rock drilling tools for drilling hard and super hard rock formations , also used for making tricone bits and  other dril bits
K40YK2014.4872700coarse
K40YK2514.45872700coarse
K40YG11C14.487.82700coarseWith super toughness and corresponding wear resistace, suitable for carbide inserts of heavy-duty rock drilling bools and DTH drilling bits for drilling hard and super hard rock formations,also used for other cemented carbde buttons bits
K40YG13C14.2862600coarse


Our Certifications



We provide the best quality for you only! Our company, through more than sixteen years development and expansion,
has made a great leap forward in management level and the quality of products, enjoying a rather high reputation in the
carbide industry. The company-made carbide items have the following advantages:
 various sizes, complete grades,
excellent performance, stable good quality.
 Our products can well meet the different requirement of all customers.
Our carbide products occupy important market share and are exported well to the areas of
Southern Asia, Europe and
America.

Our Company



Zhuzhou Jinggong Cemented Carbide Co., Ltd. is located in Zhuzhou National High-Tech Industrial Development Zone.
The company is a high-tech joint stock enterprise who specializes in the
development, production and sales
 of cemented carbides. Our main products include die materials, saw tips, cutting tips, brazed tips, mining tools,
woodworking tools, wear parts and other non-standard products which are widely used for various industries.



Click here and copy: Mob:+86 15073363807
FAQ
Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according
to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample not for free charge .

Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.





Zhuzhou Jinggong Industrial Co., Ltd is one professional manufacturer and leading supplier of tungsten carbide products, founded in 2001 and located in the National High & New-tech Development Zone in Zhuzhou city of China. We are one provincial high-tech enterprise specializing in development, production and sales of cemented carbides.

Our company has our own research and development and production base-Jinggong Industrial Park, which occupies an area of 69445 square meters with a factory building area of 40000 square meters. We have advanced cemented carbide production equipments, first-class testing center, assorted precision mould production line. Our yearly production capablity for tungsten carbide is up to be 1000 tons. Our R&D team consists of doctors and professional engineers, who are engaged in researching and developing high performance cemented carbide products. Our professional salesmen can recommend suitable products and solutions for the customers in time.

Our company has passed ISO9001, ISO14001 certificate and OHSAS18001. The series of our manufacturing cemented carbide products are carbide saw tips, carbide pins, carbide cutting tips and inserts, carbide rods, carbide blanks, carbide drawing dies, carbide cold heading dies, carbide indexable knives, disc cutters, rolls and rings, woodworking cutters, geological mining tools, carbide strips and plates, non-standard carbide products and other special wear parts for the different applications in the modern industry. With ZZJG as our trademark, our products enjoy a rather high reputation in the carbide industry and are well-marketed in China and have been exported to some countries and regions in Southeast Asia, North America, South America and the European Union.

We sincerely thank all of customers for your kind trust and support. We cordially promise that what we provide is not only the excellent products, but also high effective service.
