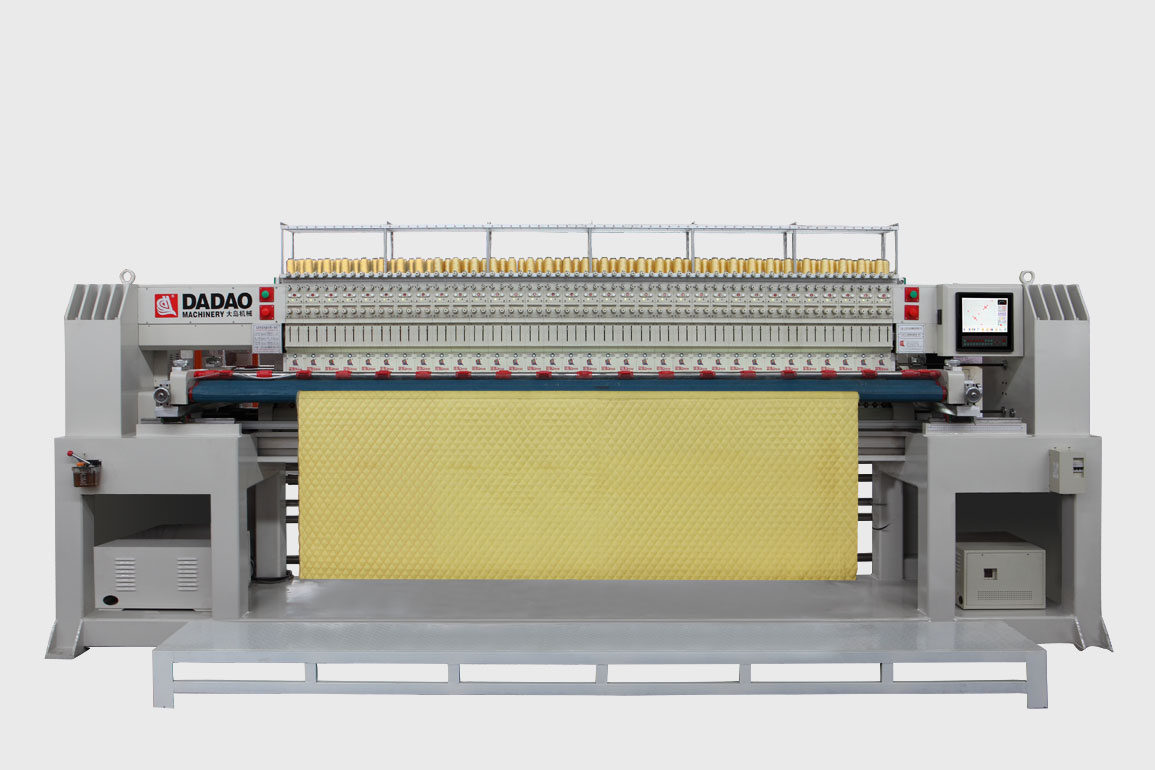

Quilting Machine with Double Rows for Embroidery (GDD-Y-217*2)
| Price: |
US $ 10000-40000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Quilting Machine with Double Rows for Embroidery (GDD-Y-217*2)
MODEL: GDD-Y-233x2
Specifications:| Model | GDD-Y-233x2 |
| Head number | 66 |
| Needle number | 132 |
| Needle Distance(mm) | 50.8 |
| Quilting width(mm) | 3454 |
| Max Speed (rpm) | 1000 |
| Length of Stitch(mm) | 0.1-12.7 |
| Stitch Storage | 60,000,000 Stitches |
| Pattern Storage | 1000 PCS |
| Dimension(mm) | 5490(L)*1500(W)*2350(H) |
FEATURESStandard memory capacity: 60,000,000 stitches to register maximum 1000 designs.- Maximum working speed reaches 1000 rpm.
- Automatic thread breakage detection
The machine stops automatically and alarms in case of the broken thread or the ending of both the face and bottom threads during the process.- Equipped with jumbo rotary hook, decreases bobbin replacement frequency, and increases productivity.
- Unique lubricating system lubricates machine heads, prolong life of the machine.
- Equipped with double needle quilting embroidery head. Needle to needle distance in X-direction is 50.8mm.
- Control System is equipped with 12-inch Color Screen Control Panel, user friendly window style display.
- Each needle can be manually switched on or off individually, with pattern size up to 50.8mm, 101.6mm plus alternative head-lock function, to do complicated patterns.
Scope of Application:The machine can be used for quilt, curtain, mattress, sofa cushion, shoes, garment, box, car mat, foot mat, soft package, etc. Samples
| Prod Model: |
GDD-Y-217*2 |
| Head Number: |
34 |
| Needle Number: |
68 |
| Size: |
3791(L)*1500(W)*2350(H) |
| Main Motor: |
Servo Motor |
| Storage Capacity: |
60, 000, 000stitches |
| Design Storage: |
1000PCS |
| Weight: |
3500kgs |
| Working Width: |
1727mm |
| Type: |
Shuttle Loom |
| Condition: |
New |
| Certification: |
ISO9001: 2000, Ce |
Jiangsu Dadao Group Co., Ltd is a group enterprise which includes machinery, textiles and services, located in the national health-city ---- Haimen, seeing the international metropolis of Shanghai across Yantz River, Niqi high-way, coastal high-way and Hutong railway pass through the whole city, so the traffic and transportation is extremely convenient.
JIangsu Dadao Group is a national high-tech enterprise. The company continuously insists in making four main competitive advantages of science and technology, brand, quality and market. It has already become a high-tech enterprise with huge researching strength, advance manufacturing ability, market selling ability and brand managing capacity. Our main products are multi-series high-speed quilting embroidery machines of DADAO brand and WANLONG brand. We have initiative technology in China and have many invention patents. Our company is the main unit which drafted the industry standard of quilting embroidery machine. Our company passed ISO9001 quality management system certification in 2000 and passed CE certification in 2007. The DADAO brand has become Jiangsu famous product and Jiangsu province's famous trademark. Many products are listed in national and provincial science & technology plan project. The series products received the title of Jiangsu provincial quality trustworthy product. At present our products are sold nationwide as well as abroad and got customer's trust and praise.
In the future, we will shape the DADAO brand with science and technology, innovation, development and honesty, heartily return to your love of DADAO products. We sincerely welcome friends from all circles of society to join us, go forward hand in hand and create brilliant.
