Price: | US $ 69-79.8/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 50/Piece |
Pay Type: | L/C,T/T,Western Union,Paypal |

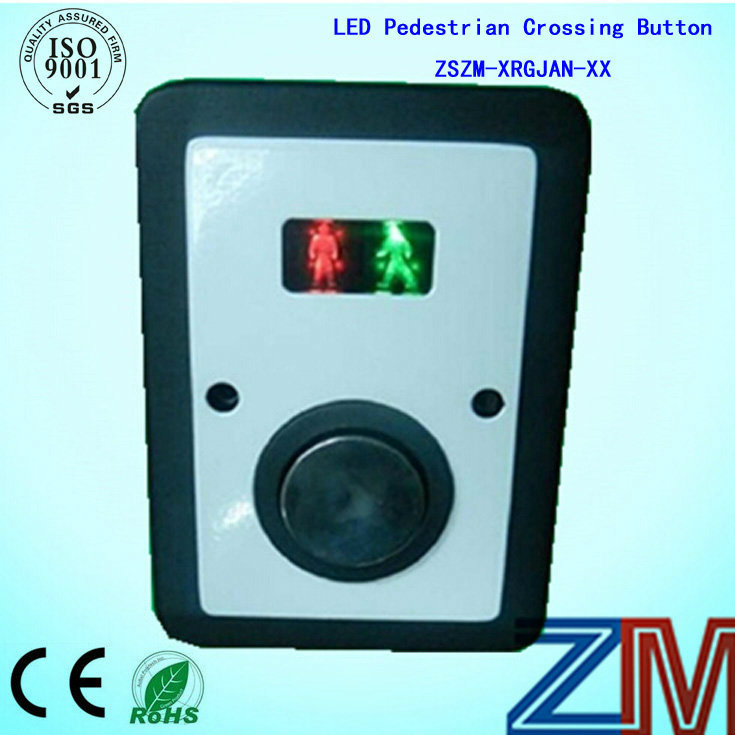

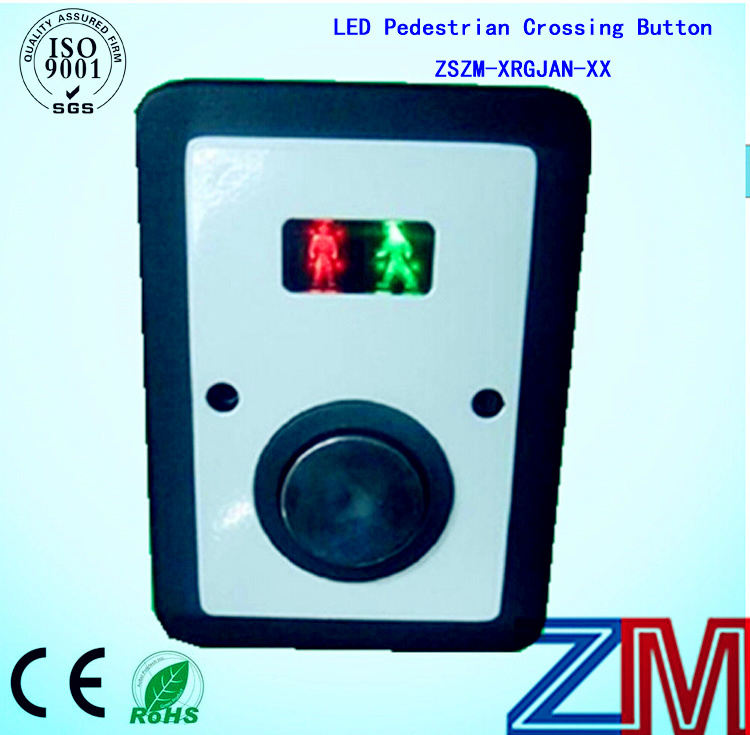

Pedestrian Crossing Button
Descriptions:
1. Powerful warning functions for pedestrian crossing safety.
2. The whole system consists of one controller, two pedestrian buttons. The controller is the hart core.
3. Easy for maintenance and function extension by adopting modular design.
4. It can be placed on a high position to ensure electrical safety in case of heavy rain.
Lead Time:
A. 10~15 working days for formal order (< 1000 PCS).
B. 25~30 working days for formal order (approx >2000 PCS).
Advantages:
1. Senior R&D engineers to lead new product and provide professional solutions for all customer.
2. Our own roomy work shop, skilled workers to ensure product quality & product cost.
3. Particular recharging & discharging design.
4. Customized design, OEM , ODM will be welcomed.
Technical Specifications:
Description | pedestrian crossing button | |
Model number | ZSZM-XRGJAN | |
Power consumption | Less than 7w | |
Cabinet Dimension | 120*170*55mm | |
Voltage | AC176V~264V | |
Drive Capacity of Each Output | 500W | |
Working Frequency | 50Hz | |
Time Error | ±1S | |
MTBF | 20,000 h | |
Main material | Metal plate / PC | |
Lifespan | >80,000 h | |
Data-saving Time | half a year after blackout | |
Insulation Value | ≥100MΩ | |
Working temperature | -40-75 degree | |
System | match pedestrian push button | |
Ingress protection | IP65 | |
Packing | 1 pc / carton |
Pictures:
Prod Model: | ZSZM-XRGJAN |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Power Consumption: | Less Than 7W |
Cabinet Dimension: | 120*170*55mm |
Voltage: | AC176V~264V |
Drive Capacity Of Each Output: | 500W |
Working Frequency: | 50Hz |
Time Error: | 1s |
Working Temperature: | -40-75 Degree Centigrade |
Insulation Value: | 100 |
System: | Match Pedestrian Push Button |
Material: | PC/PVC |
Application: | Road |
