| Prod Model: |
PC 7 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Rolling |
| Open Style: |
Rolling |
| Opening Type: |
With Remote Control |
| Special Function: |
Security |
| Certification: |
CE |
| Position: |
Commercial |
| Surface Finishing: |
Finished |
| Material: |
Polycarbonate Slat+Aluminum Tubes |
| Color: |
Transparent |
Product Description
Transparent polycarbonate rolling shutter door---- PC7
PC7 is always custom built in our modern ISO9001-2000 certified factory, which combines the transparency and strength of polycarbonate with extruded aluminum joining slat.
It is a popular design for applications which need secutiry as well as transparency. PC7 offers top security together with the ultimate excellent visibility.
As clear as glass, as strong as steel
It's ideal solution for following Applications:
- commercial shop
- showroom
- fashion shops
- jewellery shops
- airport
- banks
- club bars
- Others
HOFUL® polycarbonate rolling shutter has many benefits, including:
- excellent visibility: 90-95% transparency
- safety and security: The Impact resistance performance of HOFUL® polycarbonate is 200 times stronger as ordinary glass, 30 times as organic glass.
- UV protection: Can effectively cut off 80% of the sun's ultraviolet
- Weather resistance:Still keep the physical indicatiors stability in the range of -40 to 120ºC,Outdoor service life of 20 years, indoor life to 30 years.
- energy saving
- Sound insulation: 3-4DB better than glass
- Heat insulation: 10 times better than ordinary glass
- Advertising effect: 24 hours / 7 days
- Environment-friendly: Comply with ROHS, the PC could be recycled.
- Fire retardant and self extinguishing: flame retardan Class I
- Warranty: 5 years !

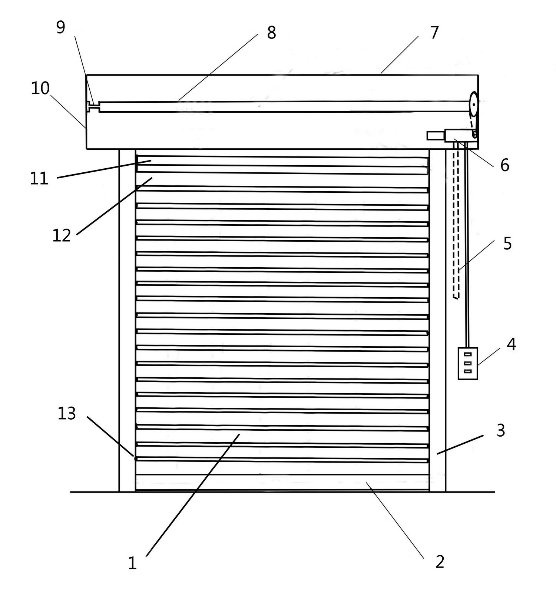

Motorized operation polycarbonate rolling shutter door
Specifications
1, Item name: Curtain
Made of polycarbonate slat+aluminum tube
Detials of polycarbonate slat: high transparency unbreakable polycarbonate material, with 100 mm width in 2 mm thickness, 100 meters/ roll
Details of aluminum joining slat: extruded, in power coating surface finishing, 1.2 mm thickness
2, Item name: Aluminum bottom rail
Made of extruded aluminum,106*20mm, height*depth, 1.4 thickness, standard color is silver( anodized finishing)
3, Item name: Aluminum Guide Rail
Made of heavy duty extruded aluminum "U"guide rail, 70*30*2.0 mm or 95*39*2.5 mm ,Width*Depth*thickness ,With brush strip to make the rolling shutter run more quietly
4, Switch button.
Switch button for operating rolling shutter, with stainless steel cover box
5, Endless chain
The rolling shutter could be opened by endless chain if power off.
6, Rolling shutter motor
Option 1: HOFUL brand side motor, CE certificate, 400KG, 600KG,800KG,1000KG,1300KG, 1500KG, 2000KG are available,
Rated voltage / Frequency could be 220V/50Hz, 380V/50Hz, 110V/60Hz
Option 2: DOOYA tubular motor, CE certificate, 60N, 80N, 120N, 140N, 230N, 300N,
Rated voltage / Frequency could be 230V/50Hz, 120V/60Hz
7, Shutter box (hood)
Made of galvanized steel or aluminum, it's optional.
8, Shaft (barrel)
Made of galvanized steel, 3 inches, 5 inches, 6 inches, 8 inches, 10 inches, it depends on the size of the rolling shutter.
9, Bearing
It's retractable, fixed by welding according to the width of the rolling shutter.
10, End plate
Made of heavy duty steel, fixed on both sides of the shaft.
11, connecting slat
Made of galvanized steel slat, connected with the top beam slat and shaft.
12, Top beam slat
Made of aluminum, used for connecting the curtain and the connecting slat
13, End clip
Made of plastic, fixed on both sides of the stainless steel tube, to protect the curtain from lateral moving.

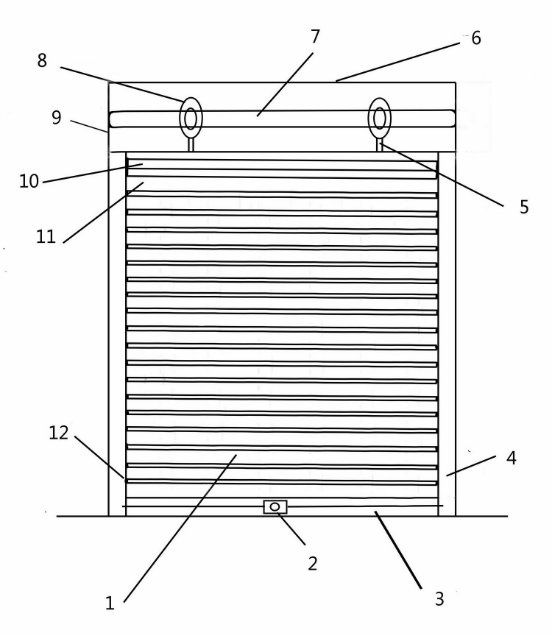

Manual operation polycarbonate rolling shutter door
Specifications
1, Item name: Curtain
Made of polycarbonate slat+aluminum tube
Detials of polycarbonate slat: high transparency unbreakable polycarbonate material, with 100 mm width in 2 mm thickness, 100 meters/ roll
Details of aluminum joining slat: extruded, in power coating surface finishing, 1.2 mm thickness
2, Item name: Lock system
Lock system for manual operation rolling shutter, with lock bar extended to the guide rials on both sides
3, Item name: Aluminum bottom rail
Made of extruded aluminum,106*20mm, height*depth, 1.4 thickness, standard color is silver( anodized finishing)
4, Item name: Aluminum Guide Rail
Made of heavy duty extruded aluminum "U"guide rail, 70*30*2.0 mm or 95*39*2.5 mm ,Width*Depth*thickness, With brush strip to make the rolling shutter run more quietly
5, Manual system
Torsion spring for manual operation rolling shutter
6, Shutter box (hood)
Made of galvanized steel or aluminum, it's optional.
7, Shaft (barrel)
Made of galvanized steel, 2 inches
8, Manual system
Torsion spring for manual operation rolling shutter
9, End plate
Made of heavy duty steel, fixed on both sides of the shaft.
10, connecting slat
Made of galvanized steel slat, connected with the top beam slat and shaft.
11, Top beam slat
Made of aluminum, used for connecting the curtain and the connecting slat
12, End clip
Made of plastic, fixed on both sides of the stainless steel tube, to protect the curtain from lateral moving.
Feel free to inquiry us for more details !
