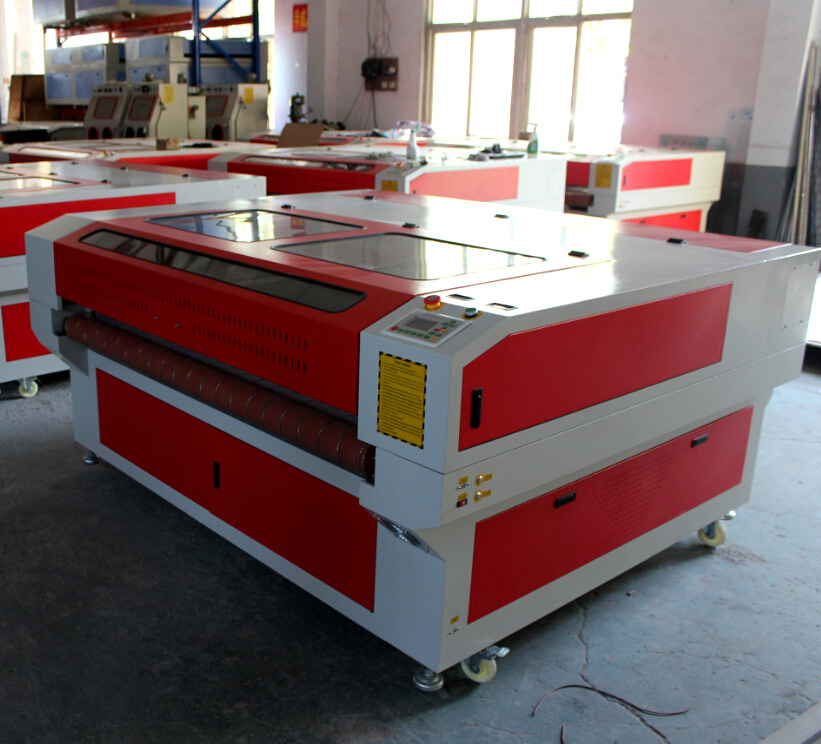

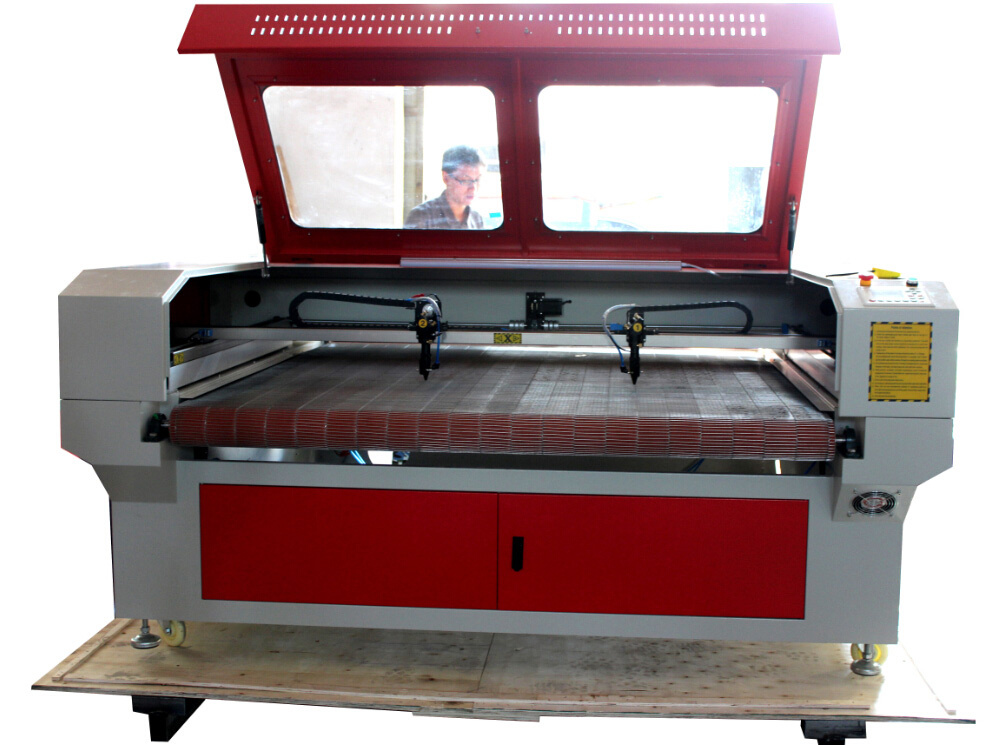

China manufacturer auto feeding system machine sofa industry need fabric laser cutting machine
Laser Cutting Machine, Features:
1. Open-type wide area laser cutting bed. Various working areas optional.
2. Vacuum absorb conveyor working table with auto-feeding device, it is capable of fast and continuous
cutting of textile fabrics.
3. If the length of single layout exceeded cutting area, cutting system can achieve continuous feeding and cutting.
4. Smart nesting software is optional, it can do fast marker making in the most material-saving way.
5. CNC 5-inch LCD screen operating system. Supporting multiple data transmission. Enabling offline or
online operation.
6. Laser heads are synchronized with exhaust system so that can totally discharge smoke and fume from
materials being cut to keep good environment and high precision of the machine.
7. You can print to the laser from a variety of programs, including CorelDraw, AutoCAD and Adobe software.
8. Equipped with optic CCD camera recognition system, it is able to automatic finding edges and cutting.
9. Wide range processing fabrics, smooth cutting edge, automatic
close-in, without deformation, any graphics designed by computer available
Applicable materials:
Non-metal materials such as acrylic, double color board, Plexiglas, common glass
Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.
Applicable industries:
Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo
and wooden product, garment and leather, embroidery, decoration and upholster industry.
Suitable for cutting a variety of textile and industrial fabrics:
Industrial textile: filter cloth, bolting cloth, filter fabric, nonwoven, glass fiber, synthetic fiber, geotextile, coated fabric, PVC fabric, sponge, insulating material,Garment fabrics,Oxford fabric,canvas,Non-woven fabrics,Home furnishing fabrics
Technical parameter:
Model | Rhino-1610/1626 |
Processing area | 1600mm*1000mm/1600mm*2600mm |
Laser power | 80W/100w RECI LASER TUBE |
Machine dimension | 1900mm*1420mm*1100 mm |
Laser type: | Sealed Co2 glass laser tube |
Working life of laser tube | More than 8000 hours |
Cooling mode: | Water cooling and protection system |
Resetting positioning accuracy: | ±0.01mm |
Compatible Software: | Laser cut 5.3, CorelDraw AutoCAD Photoshop |
Engraving speed | 1-6000mm/min |
Cutting speed | 1-24000mm/min |
Resolution ratio | ≤0.0125mm |
Position system: | Red dot |
Interface: | USB |
Control system | DSP |
Machine software | Laser cut 5.3 |
Worktable | Automatic Feeding |
Minimum shaping character | letter 0.5mm, Chinese 0.5mm |
Support graphic format | DST, PLT, BMP, DXF |
Gross power | 1200W |
Driving mode: | DC0.8A 24V stepper motor |
Air cooling system | Air compressor |
Working voltage: | AC 110 - 220V±10%, 50 - 60Hz or depend on customer |
Operating temperature | 0-45C |
Operating humidity: | 5-95% |
Driving system | 3-phase stepper motor with decelerator |
Operation: | Video to tell customer how to operate the machine |
Net weight: | 190KGS before package, 240KGS after package |
Applicable material | Suits, Textile, Fabric, Cloth, Jeans, Leather, Acrylic, Wood, Rubber, Paper, Rubber, Dual Color Board, etc. |
Optional parts | 1.Motorised up-down worktable 2.Rotary attachment with roller/clip 3.Water chiller 4.Red light pointer5.Auto focus |

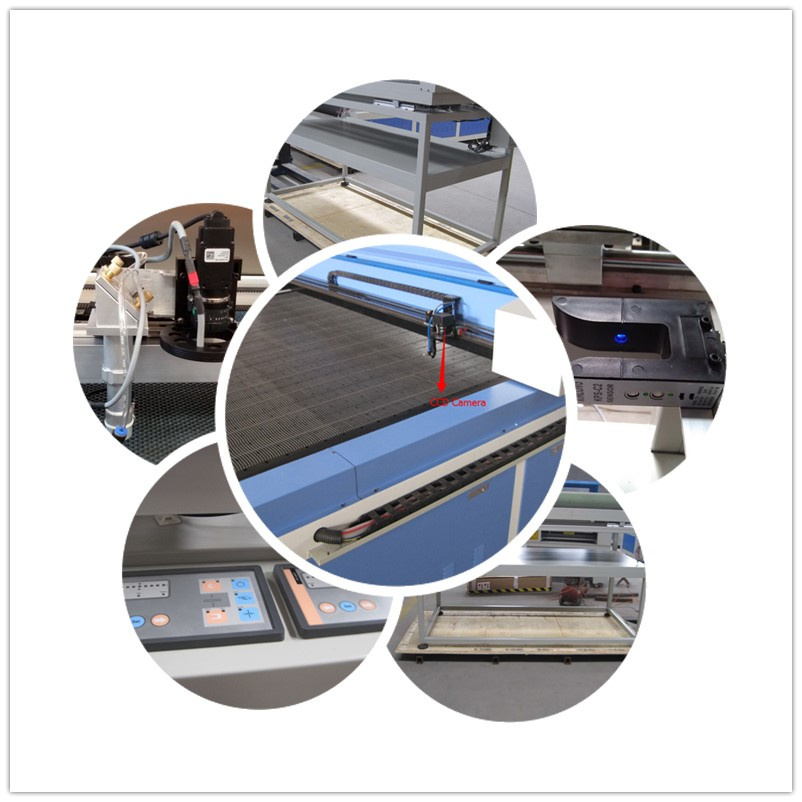

Machine components:

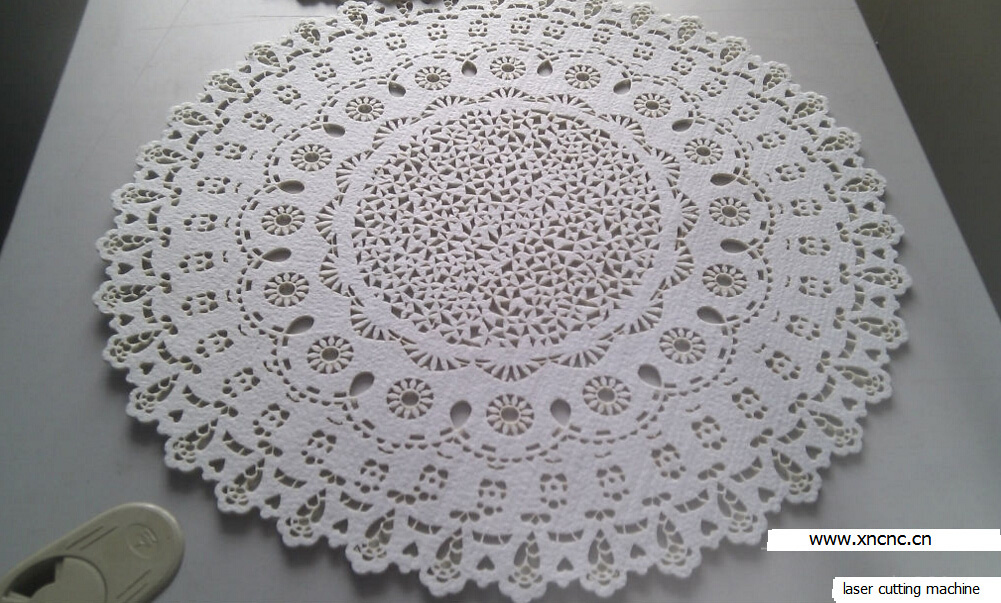

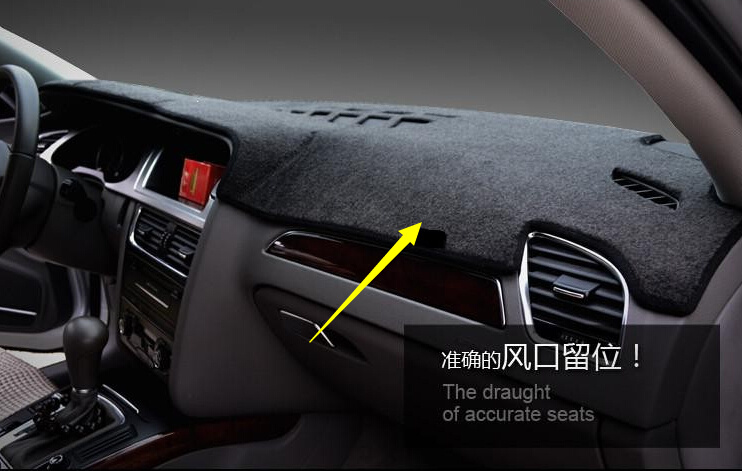

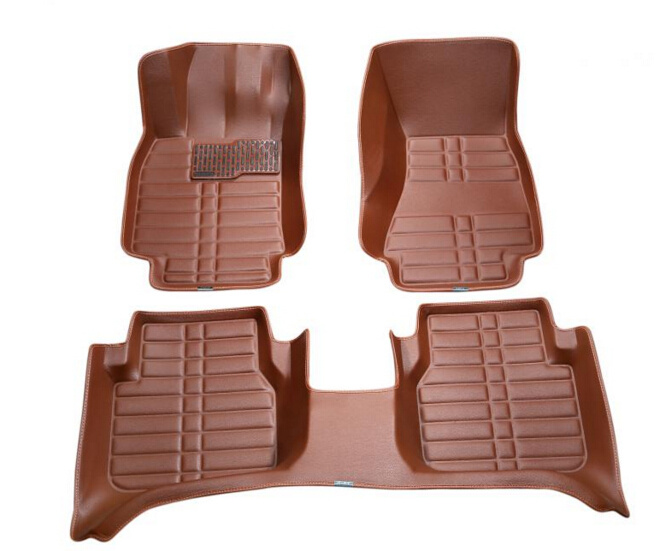

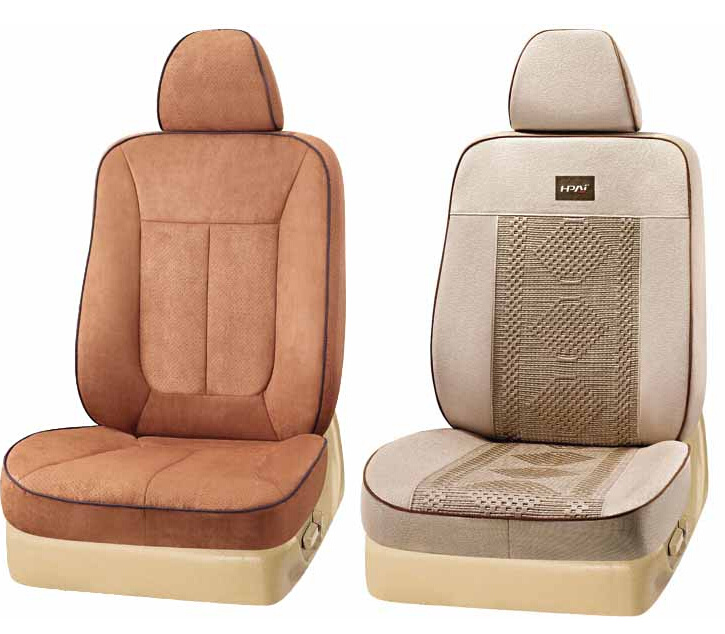

R-1610 application:
FAQ:1.What's the guarantee, in case the machine breaks down?
The machine has one year s guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to clients feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
2.How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
3.How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
4.How's the payment?
Telegraphic Transfer(T/T),L/C or according to your requirement
5.Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
6.How is the packing?
The mini laser engraving machine for glass should be use Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading
For more informations ,please feel free to contact me!
