| Prod Model: |
Roland RT-640 |
| Printing Interface: |
USB2.0 |
| Connectivity: |
Ethernet (10base-T/100base-Tx, Automatic Switching |
| Resolution: |
Maximum 1, 440 Dpi |
| Power-Saving Function: |
Automatic Sleep Feature |
| Ink Pouches Types: |
Exclusive Sublimation Ink Pouch |
| Ink Pouches Colors: |
4-Color (Cmyk) and 8-Color (Choose From Cmyk+Lclmo |
| Weight (with Stand): |
353 Lbs (160 Kg) |
| Type: |
Continuous Jet Type Coding Machine |
| Automatic Grade: |
Semi-Automatic |
| Working Patterns: |
On-Line |
| Supplies: |
Ink |
| Packaging Type: |
Wooden Case |
Product Description
Roland Inkjet Printer Wide Format Printer Roland Rt-640 Inkjet Printing Machine Printing Machinery Dye-Sublimation Transfer Printer Sublimation Printer
Overview
If you're looking to get into dye-sublimated soft-signage, apparel, décor, promotional goods and other highly profitable applications, then the RT-640 is the sublimation printing solution for you. Designed to combine superb quality, productivity and value with brilliantly simple operation, the advanced RT-640 Dye-Sublimation Transfer Printer is simply brilliant.
Features
More dye-sublimation substrates means more opportunity
Dye-sublimation is a beautifully simple and affordable method of customization. With a large format set-up that includes an RT-640 and a price comparable heat press, you can get the most bang-for-your-buck as far as graphics and product branding goes. Simply print your design onto transfer paper and heat press it onto the available product blanks and dye-sublimation substrates:
Polyester fabrics
ChromaLuxe metal panels
Ceramic items
Flip-Flops
Lycra and performance Fabrics
Sporting goods
Smart Device Cases
Carpet tiles
The Perfect Sublimation Printing Solution

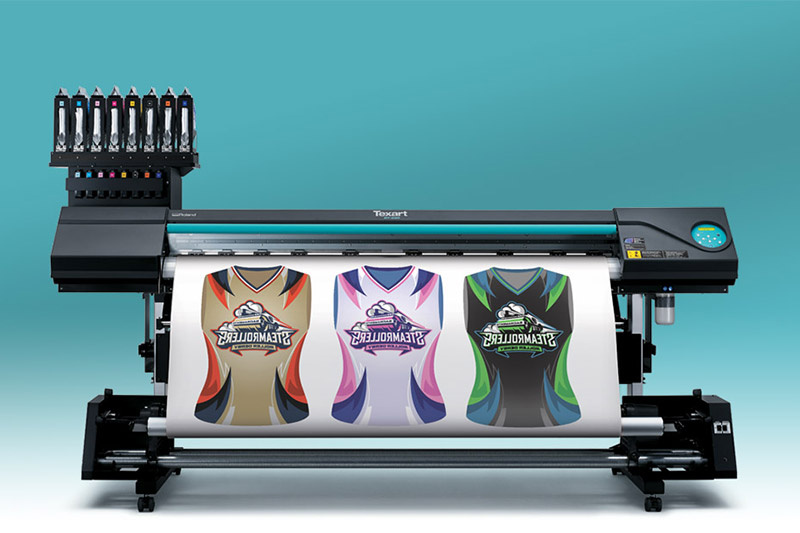

The Texart RT-640 is a state-of-the-art device that fits effortlessly into sublimation printing workflows for productions ranging from fabric banners and branded apparel to promotional items and interior décor. Roland DG's Texart solution includes the Texart printer, Texart inks, ErgoSoft Roland edition RIP software and options for accessories like transfer paper, making it easy for you to get into - or rev up - your sublimation business.
Brilliantly Simple Production
The RT-640 is designed for maximum ease-of-use. An automatic feed adjuster and media take-up system ensure even tensioning and prevent skewing of transfer paper, while a powerful vacuum keeps paper flat for printing. The result is precision details and a precisely wound roll at the take-up reel, ready for heat transferring. An innovative Roland Ink Switching System automatically switches to the backup ink pouch when the primary pouch runs out, providing up to 2000ml of ink per color in CMYK mode. Included ErgoSoft sublimation RIP software and Roland Printer Assist iPad app make it easy to manage operation.
Brighten up Your Graphics with Texart SBL3 Ink
Achieve vivid colors, smooth gradations and super-sharp images with fast-drying Texart dye-sublimation inks. Specially formulated for Texart dye-sublimation printers, Texart ink delivers dense blacks, a wide color gamut that includes Orange and Violet ink options, and a high dye-concentration that reduces ink-limits without any reduction in color density or vibrancy. Texart SBL3 ink is also available in Fluorescent Pink and Yellow inks that produce hundreds of vivid fluorescent colors and soft pastel shades for fashionable sportswear, decor and eye-catching signs.
Cutting-edge ink with 4-color, 8-color and Fluorescents
The Texart RT-640 can be configured as a 4-color or 8-color device. In 4-color (CMYK) mode, Texart dye-sublimation inks produce velvety blacks and sharp details. In 8-color (CMYK+LcLmOrVi and CMYK+OrViFpFy) mode, the addition of Orange, Violet, Fluorescent Pink and Fluorescent Yellow inks produce an increased color gamut with both delicate and intense hues. Fluorescent Pink and Yellow inks can be combined with process colors (CMY+Fp+Fy) to produce an array of vivid fluorescents and soft pastel shades.
An advanced, 8-channel print head features efficient ink coverage that lowers running costs. Containing 180 nozzles per channel, it produces seven different droplet sizes for smooth color and gradations when used with Texart SBL3 inks that are 15% less per liter than conventional inks.

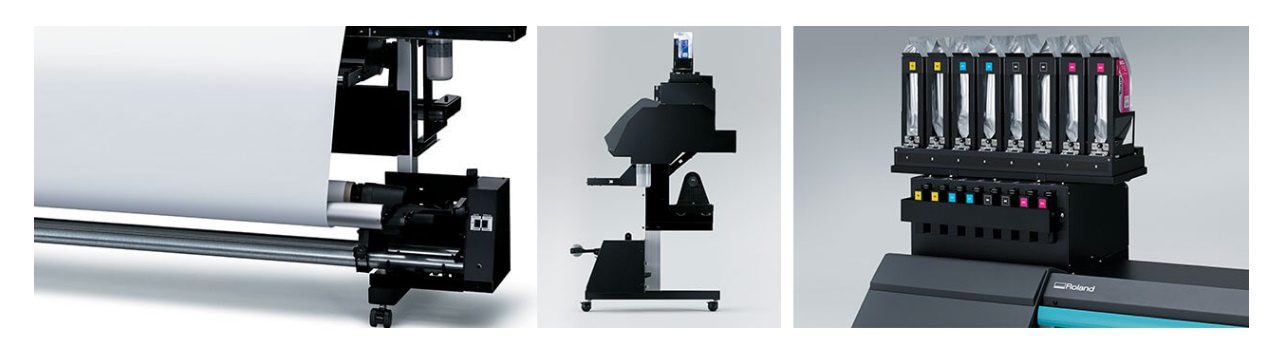

The Roland Ink System uses 1-liter airtight sealed pouches. When in 4-color (CMYK) mode, the system outputs 2-liters per color and automatically switches to the backup ink pouch when the primary pouch runs out. This proprietary Roland Ink Switching System provides a no-mess, non-stop production that leaves you free to work on other things.

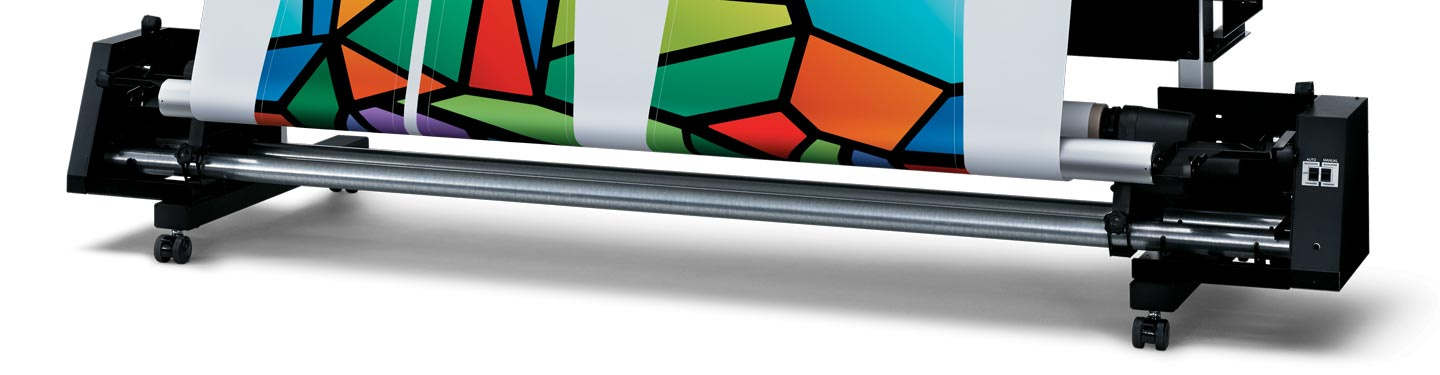

Relieve tension with a smooth take-up system
The RT-640 includes a feed adjustment function that combines with a TU3 take-up attachment to ensure a stable and uninterrupted production even in high-speed modes. The TU3 take-up system includes a front-mounted roller and tension controlled take-up unit for smooth media feeding and tracking. Its main features include a roll media support that holds 110 lbs. (50kg), a dancer roller for effortless take-up, auto media release and auto media rewind, and a rotating shaft face to decrease resistance and ensure flawless feeding accuracy.
Additional ErgoSoft RIP Software made for the RT-640
ErgoSoft is one of the premier RIP providers in the dye-sublimation and textile market. They developed a Roland Edition of their ErgoSoft RIP Software to support the 4-color and 8-color print capabilities of the RT-640. Providing excellent high-speed RIP throughput and image results, ErgoSoft RIP Software features custom color replacement, superior dithering methodology, step and repeat functions, ink limit controls, scale and shrink correction and advanced print production controls.

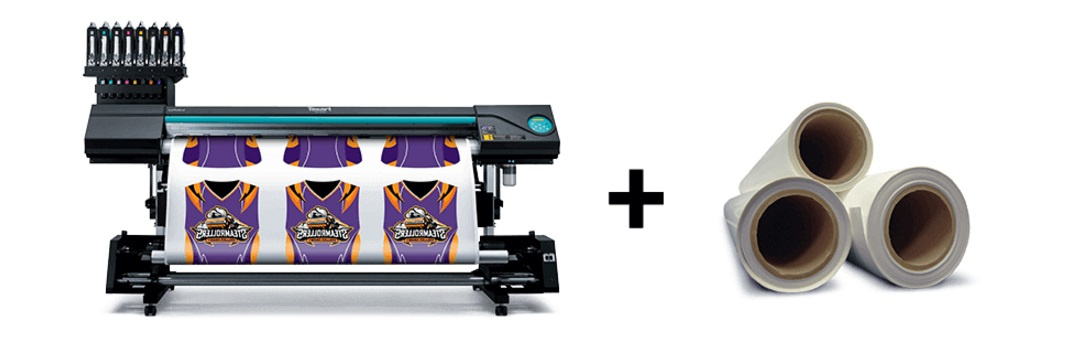

Combine RT-640 with Texart Transfer Paper for beautiful results
Roland offers a premium transfer paper to meet the high-quality color and print demands of the RT-640. Specifically created for dye-sublimation and for use with the RT-640, Texart Transfer Paper is uniformly coated 95 gsm with excellent ink absorption, quick drying time and extremely high ink-release during sublimation. The combination of the RT-640 and Texart Transfer Paper saves money with decreased ink usage and produces high-resolution images, vibrant colors, and super-sharp text.
Remote controlled sublimation
Manage your RT-640 dye-sublimation transfer printer remotely from your tablet or smart device. Free-to-download from the iTunes App Store, the Roland Printer Assist app enables users to manage production from virtually any location. The main features of this incredibly handy and convenient tool include checks and interactive documentation of the amount of ink remaining and waste bottle status, Roland Printer Assist notification of consumable part replacement, managing test printing and machine cleaning, and power on/off controls.
Specifications
| Printing technology | Piezoelectric inkjet |
| Media | Width | 259 to 1,625 mm (10.2 to 64 in.) |
| Thickness | Maximum 1.0 mm (39 mil) with |
| Roll outer diameter | Maximum 210 mm (8.3 in.) |
| Roll weight | Maximum 40 kg (88 lbs.) |
| Core diameter*1 | 76.2 mm (3 in.) or 50.8 mm (2 in.) |
| Printing width*2 | Maximum 1,615 mm (63.6 in.) |
| Ink cartridges |
| Types | Exclusive sublimation ink pouch |
| Colors | 4-color (CMYK) and 8-color (Choose from CMYK+LcLmOrVi and CMYK+OrViFpFy options)
Available colors: cyan, magenta, yellow, black, light cyan, light magenta, orange, violet, fluorescent pink, and fluorescent yellow |
| Printing resolution (dots per inch) | Maximum 1,440 dpi |
| Distance accuracy*3 | Error of less than ±0.3% of distance traveled, or ±0.3 mm, whichever is greater |
| Connectivity | Automatic sleep feature |
| Power requirements | AC 100 to 240 V ±10%, 1.5 A, 50/60 Hz |
| Power Consumption | During operation | Approx. 140 W |
| Sleep mode | Approx. 31 W |
| Acoustic noise level | During operation | 62 dB (A) or less |
| During standby | 49 dB (A) or less |
| Dimensions (with stand) | 104.4 (W) x 31.3 (D) x 63 (H) in. (2,650 mm (W) x 795 mm (D) x 1,600 mm (H)) |
| Weight (with stand) | 160 kg (353 lbs) |
| Environmental | Power on | Temperature: 64.4 to 77° F (18 to 25° C), humidity: 35 to 65% RH (non-condensing) |
| Power off | Temperature: 59 to 86° F (15 to 30° C), humidity: 20 to 80% RH (non-condensing) |
| Accessories | Exclusive stands, power cord, media clamps, media holder, replace- ment blades for separating knife, User's Manual, etc. |
ErgoSoft Roland Edition System Requirements| Operating system | Windows® 8/8.1 (32/64-bit);
Windows® 7 Professional Ultimate (32/64-bit);
Windows Vista® Business/Ultimate (32/64-bit) |
| CPU | Quadcore 2.5 GHz or faster recommended |
| RAM | 4 GB or more recommended |
| Video card and monitor | A resolution of 1,280 × 1,024 or more recommended |
| Free hard-disk space | 40 GB or more recommended |
| Optical drive | DVD-ROM drive |
| 1. | iThe media holder of this machine is exclusive use for the media of paper tube (core) inner diameter 3 inches. To use 2 inches media, the optional media flanges are required. |
| 2. | The length of printing is subject to the limitations of the program |
| 3 | • Media type: Media specified by Roland DG Corp. • Temperature: 77°F (25°C), humidity: 50% • Roll media must be loaded correctly. • Excluding expansion/contraction of the media • All corrections or adjustment function of this machine have been made properly. • Print travel: 1 m |
