| Price: | US $ 30000-68000/Set |
|---|---|
| Trade Terms: | FOB,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Paypal |
| Prod Model: | Q69 series |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: | 1 Years |
| Colour: | Named Color |
| Price: | Discount |
| Material: | Carbon Steel |
| Business Type: | Manufacturer & Trading Company |
| Productivity: | Customized |
| Type: | Pass Through Type |
| Certification: | ISO |
Q69 series roller conveyor Shot blasting systems for steel plates and structural steel sections. Motorized roller conveyors with shot blasting from both top and bottom.
Q69 steel profile shot blasting machine is a piece of shot blast equipment which can perform preheating, shot blasting, paint spraying and drying processes. It is mainly used for removing surface rust, cotaminants and spraying paint onto the surface of steel boards, steel profiles and structural components in industries such as shipping, automobile, motorcycle,bridge, machinery, etc.
| The advantage of Q69 shot blasting machine |
1.Using the world's most advanced blasting technology, the blasting machine equipment of advanced design, reasonable structure, reliable operation, high efficiency advantages .
2.Blast chamber adopts welded thick steel plate type box, won't produce vibration due to high intensity.Blasting hot plate adopt thick plate, the wear-resisting, prevent the projectile has greatly improved performance, service life is long.
3.Electrical control of PLC, the projectile control valve and the projectile movement such as fault detection are automated control, which has features of high productivity and advanced automation and good reliability.
4.Using qualified dust settling chamber, a cloth bag secondary dedusting technology, in the aspect of environmental protection requirements have greatly improved.
5.Roller type shot blasting machine mounted structure, cover an area of an area small, convenient operation and maintenance, according to the width of steel plate automatic different number of shot blasting machine, the purpose of saving energy.
| Technical parameters |
Parameter | Unit | QH698 | QH6912 | QH6915 | QH6920 |
Cleaning height | mm | 800 | 1200 | 1500 | 2000 |
The size of feed | mm | 1000*400 | 1400*400 | 1700*400 | 2200*400 |
The length of cleaning workpiece | mm | 1200-12000 | 1200-1600 | 1200-12000 | 1200-12000 |
Thickness of cleaning steel | mm | 3-60 | 3-60 | 1.5-60 | 3-60 |
Specification of processingsteel | mm | 800*300 | 1000*300 | 1500*300 | 2000*300 |
Blasting capacity | kg/min | 4*180 | 4*250 | 4*250 | 6*250 |
First loading quantity of shot | kg | 4000 | 4000 | 4000 | 4500 |
Adjustable height of roller | mm | 200 | 200 | 350 | 450 |
Total airrate volume | M3/h | 22000 | 17560 | 19000 | 19550 |
Outline dimension | mm | 25017*4500*9015 | 12180*4250*7095 | 15200*5370*6797 | 30650*6850*9095 |
Total power | kw | 90 | 78.3 | 113.5 | 156.6 |

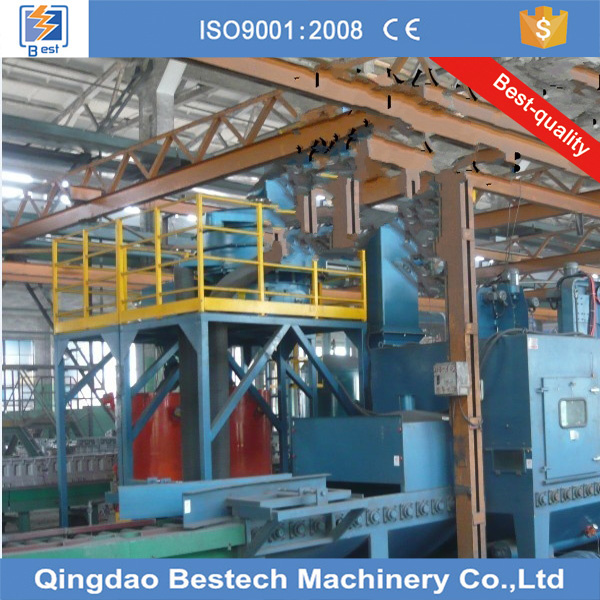

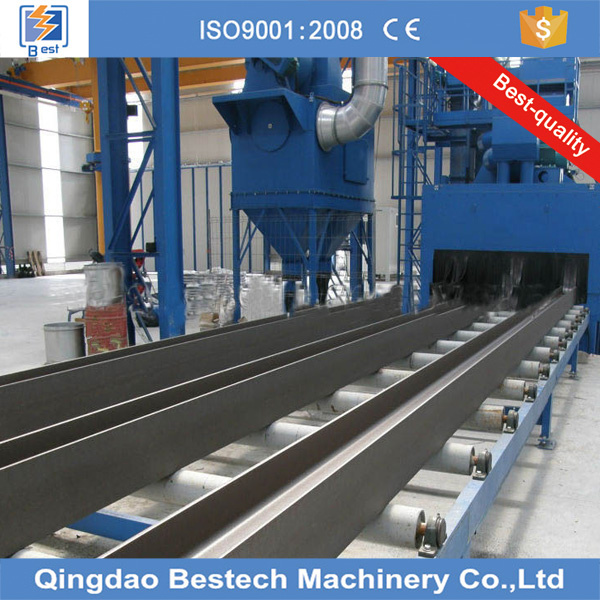

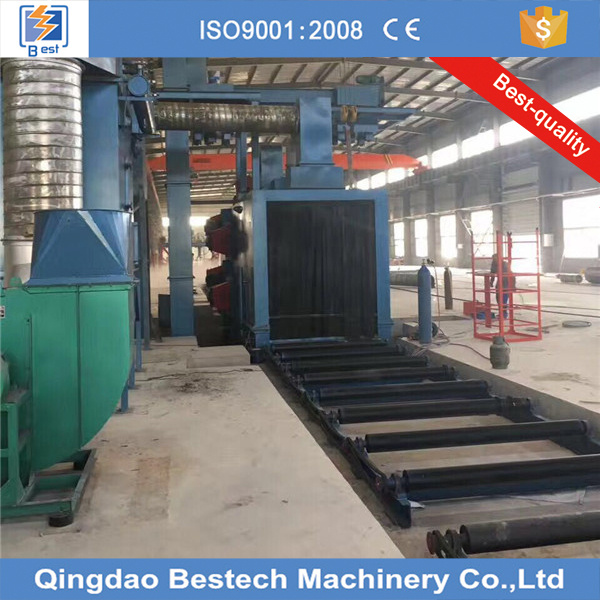

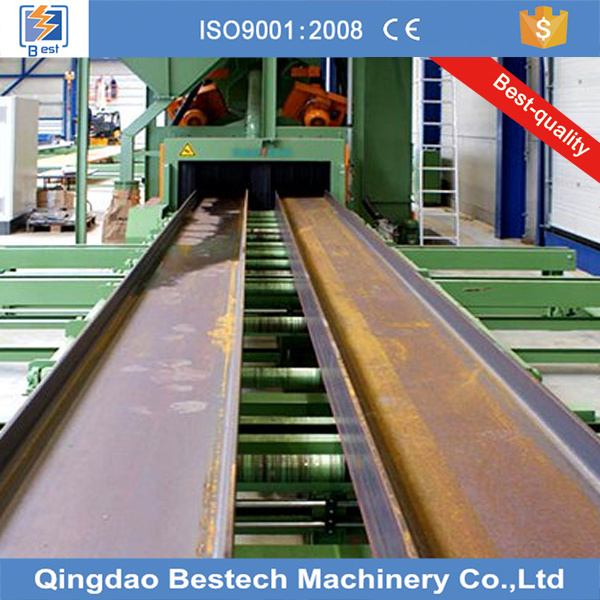

| Parts show: |
