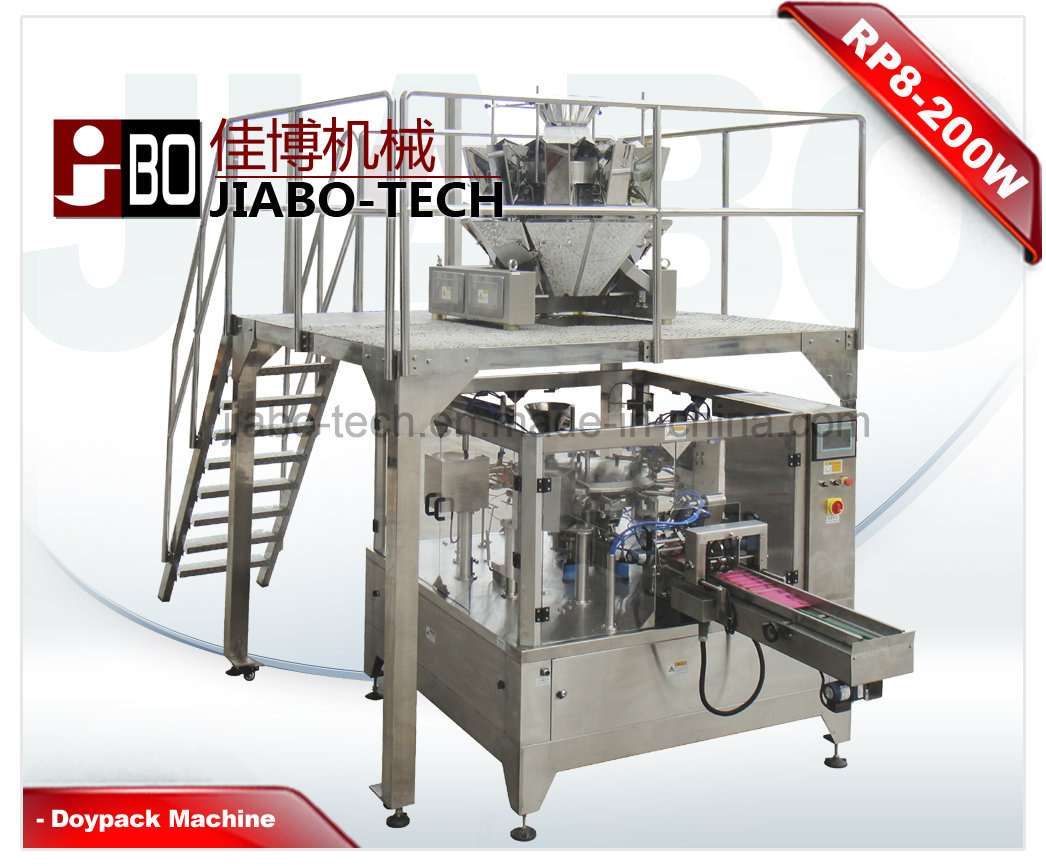

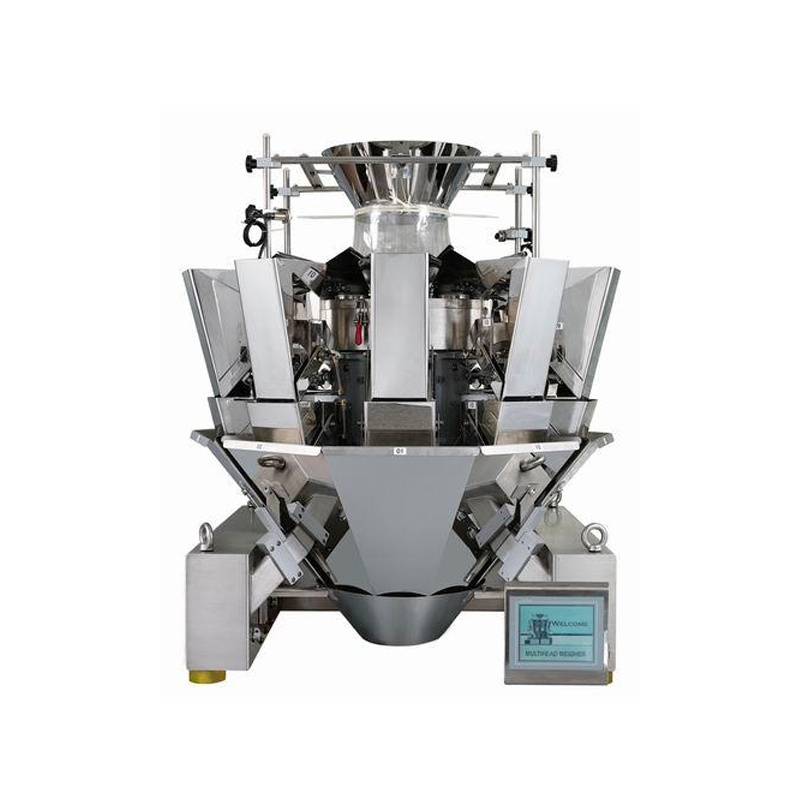

Rotary Pouch Packing MachineApplication: This is a rotary doypack machine, installed with multi-head weigher. it is applicable for free flowing small granule such as pasta, chips, snack, candy, peanut, biscuit, seed, sweets, etc into premade pouch, zipper pouch etc.. This machine is very popular used in snack food, confenctionery, daily use product area.
Capacity for standard pouch, max 60bags/minute. For zipper pouch, max 40bags/minute
Technical Parameter:| Mode: | RP8-200 |
| Machine size: | 1130*2490*1550mm |
| Package size | 1330*2700*1750mm |
| Net Weight | 1000KG |
| Gross weight | 1200KG |
| Pouch Type: | Pre-made pouch&zipper |
| Pouch Size Min | 80x100mm |
| Pouch Size Max | 210x350mm |
| Bag volume: | Max 3600cm3 |
| Output: | 20-60bags/min |
| Connected load: | 3KW |
| Power supply: | 220V,1ph,50hz |
| Air supply: | 0.6Mpa |
Feature:1: Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2: Frequency conversion adjusts the speed: This machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production.
3: Automatic checking: No pouch or pouch open error, no fill, no seal. The bag can be used again, avoid wasting packing materials and raw materials.
4: Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.
5: Horizontal conveyer style to giving bag: It can put on more bags on the bag storage and have a low requirement about the quality of bags.

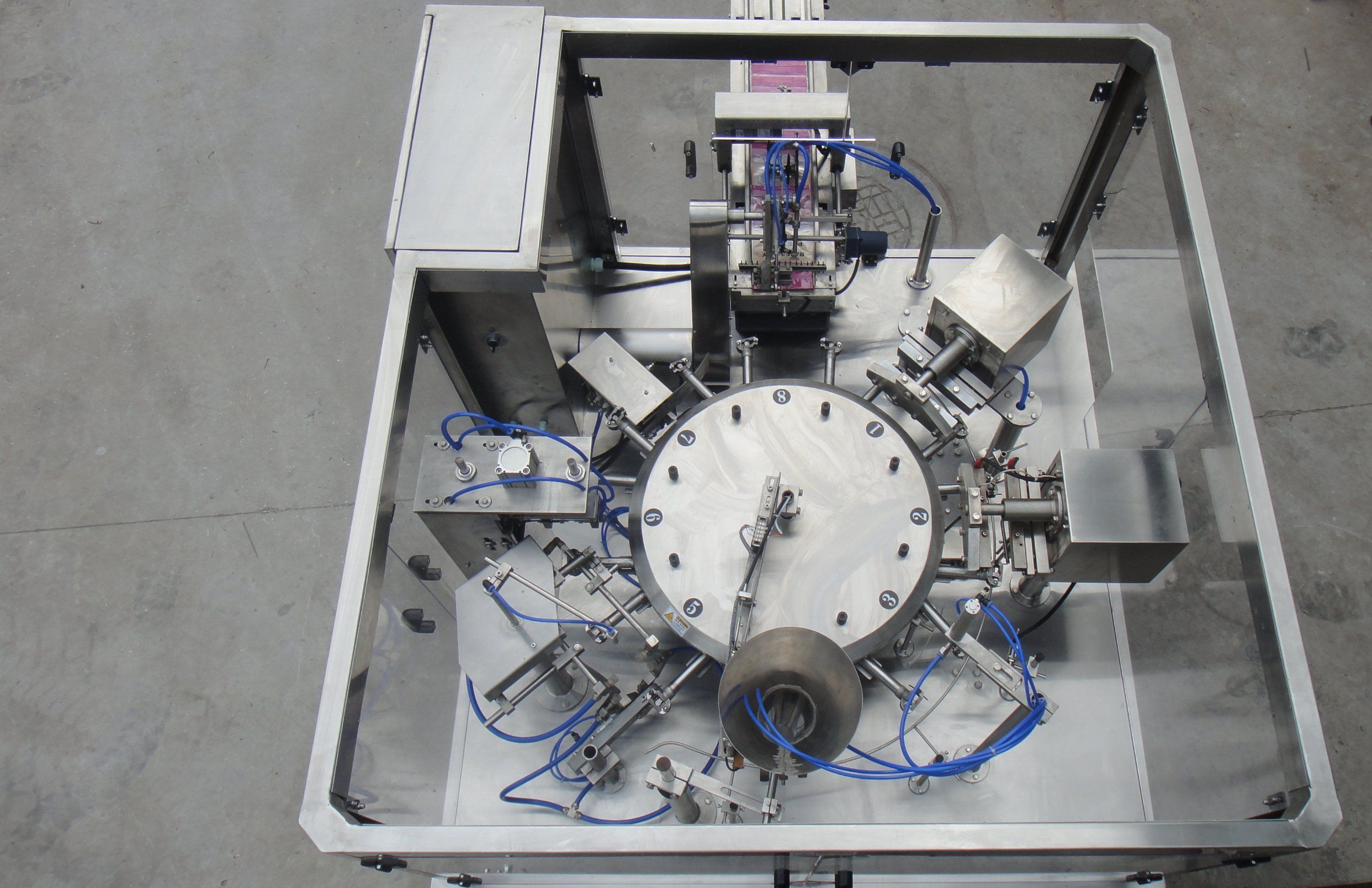

6: It can adjust the clips of the six working position at the same time, just need adjust one of the screw which is control the wide size of bag, then the all clips will adjust to the same width. It can save the time and suitable for more different size of bags, especially suitable for the customer who often adjust the wide size of bag.
7: Use the plastic bearing, don't need put on oil, less pollution.
8: Use no oil vacuum pump, avoid polluting the environment in the production.
9: The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
10: Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food
11: With different feeders changed to pack solid, liquid, thick liquid, powder and so on.
12: The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE, PP and so on Preformed bag made by film and paper.
For decades, JIABO TECH Co., Ltd. Has been a leading provider of processing & packaging solutions for pharmaceutical, cosmetics and food applications. We focused on the high quality standards and breakthrough innovations to guarantee efficiency and reliability of our products. Based our strategy of customer-focused, we work for and with our customers to install and operate equipments correctly and efficiently, and reduce production cost, ensure their products value-added and reach the market on time. JIABO is your long-term partner.
Serice:
One of JIABO's main concerns is continuously improving the level of service it offers to its customers. Once installed, each machine from JIABO is service right through its life by expert technical staff that provides, repairs and implementation, if required. This is how the success of our solutions translates into success for our customers, in a mutual beneficial relationship.
Contact us and your problem will be analyzed and processed by our staff.
Technical Assistance:
Our Purpose is the completely satisfaction of our customers. We are able to supply a prompt technical assistance of:
-Assisting customers in the choice of the most suitable machine to meet their requirements.
-Offering training in equipment operation, maintenance, quality control
-Supporting with the supply of spare parts, overhauling and up-grading
To request our technical assistance, please send E-mail or leave us a message on "Contact Form", and you will shortly be contacted.
Spare parts:
Our after sales service supports you in a constant way, supplying original spare parts in a very short delivery time. You can rely on assistance of our professional team of expert, able to help you identify the right part and operate correctly.
To ensure productivity and efficiency of your machine, we are able to offer
-Suggested spare parts which frequently ordered
-Spare parts for precautionary; Ordinary or extraordinary maintenances
