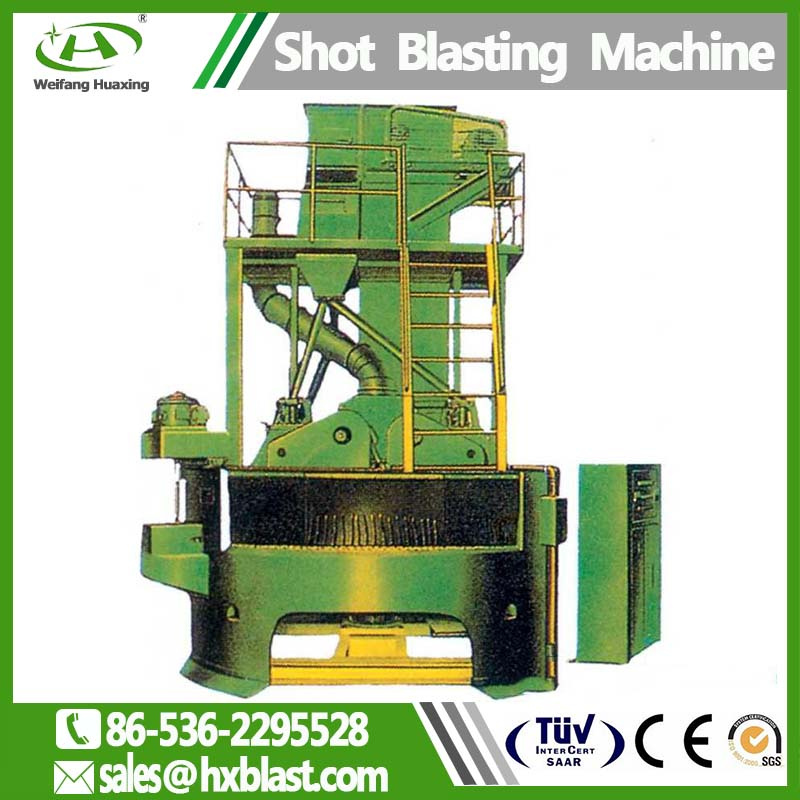

Trolley series shot blasting cleaning machineAdvantage:1.Mainly used to remove the surface of the sticky sand, rust, scale, dirt, etc., so that the surface of the metal presents the true nature of the workpiece to eliminate internal stress and improve the anti-fatigue properties of the workpiece to increase the paint adhesion when the workpiece paint and eventually reach Improve the surface and the inherent quality of the workpiece purpose.
2.Good effect, compact structure, easy loading and unloading high technical content.
Application areas:1.This machine is suitable for the surface derusting of large steel structure welds and the internal stress of the workpiece. Suitable for oil tanker, locomotive frame, machine tool, construction machinery and other industries. When the workpiece is cleaned, the surface rust layer, oxide and other debris fall off, and the surface of the workpiece is made of metal.
2.The trolley type shot blasting machine is mainly suitable for mass production of the surface cleaning of small and medium-sized workpieces. The equipment of this specification is suitable for engine connecting rod, gear, diaphragm spring and the like, and is widely used in the foundry and automobile manufacturing industries. The utility model has the advantages of high production efficiency, Good effect, compact structure, easy loading and unloading high technical content.Technical Parameters:| parameter | unit | Q365C | Q3610 | Q3620 | Q765C | Q7610 | Q7620 | Q7630 |
| Clean the workpiece dimensions | mm | 2500x1300 | 2500x1500 x280 | 4000 x3000 x700 | 2500x1300 | 2500x1500 x280 | 4000 x3000 x700 | 4000 x2000 |
| The maximum weight of the workpiece | kg | 5000 | 10000 | 20000 | 5000 | 10000 | 20000 | 30000 |
| Shot amount | kg/min | 2 x260 | 4 x250 | 4 x250 | 2 x260 | 4 x250 | 4 x250 | 4 x250 |
Hoist
Increase the amount
| t/h | 40 | 60 | 75 | 40 | 60 | 75 | 60 |
Dividers
Amount of separation | t/h | 40 | 60 | 75 | 40 | 60 | 75 | 60 |
| Ventilation | m³/h | 13200 | 240000 | 21000 | 13200 | 240000 | 21000 | 21500 |
Power
(Excluding dust)
| kw | 39.2 | 188.45 | 185.25 | 39.2 | 188.45 | 185.25 | 83.2 |
Shape
size
(Length x width x height)
| mm | 9000 x4200 x9290 | 14900 x500 x8700 | 16900x6450 x10020 | 9000 x4200 x9290 | 14900 x500 x8700 | 16900x6450 x10020 | 9168x7680 x10874 |
Introduction:
Weifang Huaxing Machinery Co. Ltd. is located in Shandong province Linqu County Road Su Dongcheng Development Zone, covers an area of 33350 square meters, construction area of 16000 square meters, including preparation workshop, assembly workshop, assembly workshop, machining workshop, molding workshop, casting workshop, heat treatment workshop, electrical assembly workshop, a total of eight workshops, a total of a staff of 276 people, engineering design personnel 62 people. The annual output of various cast (spray) pill cleaning machine more than 600 sets; molding sand handling and sand regeneration complete production line 40; various types of shot blasting machine more than 5200 units, special cast iron wear-resistant parts 1100 tons; 600 tons of gray iron ductile iron. It is an industrial entity which integrates development, development, design, production and management. It has formed a professional manufacturer of metal surface cleaning, complete set of equipment for casting machinery and related accessories production.
It is a member of the enterprise management association of China's machinery industry and the "high-tech enterprise" at the provincial level.
Main product:
Series caterpillar shot blasting machine
Series hook type shot blasting machine
Series rotary table shot cleaning machine
Series roller ball cleaning machine
Series trolley passing ball cleaning machine
Series of suspending chain continuous type, hanging chain step type, suspension chain set Throwing Shot cleaning machine.
Series stepping electric hoist ring rail type shot blasting machine
Series steel pipe inner wall and outer wall blasting cleaning machine
Molding complete water production line with resin sand and water glass sand
Complete water production line for recycling of old sand
Sandblasting room, sandblasting machine
Various types of high efficiency Shot Peen
Low chromium, medium chromium, high chromium and ZGMn13 special wear resistant cast iron for all kinds of casting machinery and mining machinery; cast steel, ball cast iron and gray cast iron fittings.
Various environmental type cyclone type, cloth bag type, filter cartridge type dust remover.
And to undertake the design, production, transformation and overhaul of the foundry machinery.
Application:
It is suitable for machinery, auto parts, metal products, decoration parts, household appliances, furniture and other industries. Widely used in the current cleaning equipment of shot blasting, because of the reasonable design, convenient maintenance and low cost, it is highly recommended by the broad masses of customers.
Q: Are you a trading company or a manufacturer?
A:We are factories.
Q: How long is your delivery time?
A: It is generally 5-15 working days if the goods are in stock. Or 15-60 days if the goods are not in stock, it is based on the quantity and machine model.
Q:What are your terms of payment?
A: Pay 100% down payment < 10000USD > = 10000USD, 30% T / T in advance, balance
Pre shipment
Q: What's your pre sale service?
A: 1. Advisory support
2. Technical solutions and quotations
3. Visit the customer's factory and negotiate.
4. .customers visit our factory and check the production.
Q: How long is the feedback of your company after sale?
A: In 0-24 hours
Weifang Huaxing Machinery Co., Ltd. is located in Linqu Dongcheng Development Zone, Shandong Province, covering an area of 33, 350 square meters with building area of 16, 000 square meters. The company is an industrial entity including research and development, design, production. It has now formed professional manufacturer with metal surface cleaning equipment, painting equipment, complete sets of sand processing equipment and related accessories production. It is equipped with preparation workshop, painting workshop and equipment 1, equipment 2, equipment 3, machining, special casting, electrical assembly totally eight workshops.
Main products: Various types of shot blasting equipment, painting equipment, drying equipment, resin sand, water glass sand molding sets of production line; Old sand recycling complete sets of production line; Various specifications of sand blasting room, sand blasting machine; ZGMn13 special wear-resistant cast iron; All kinds of casting machinery, mine machinery with low chromium, medium chromium, high chromium, ZGMn13 special wear-resistant cast iron; Cast steel, cast iron, gray cast iron accessories.
Undertake casting machinery and equipment design, production, alteration, overhaul.
