Company Description
BINLONG COMPANY was founded in 2008 , is a professional supplier of power transmission belts from Sanmen, China. It is widely used in automotive, agriculture, coal, metallurgy, mining, engineering machinery, oil, textile and light industry, construction and cement and other fields. The spirit of "high quality, excellent service, continuous improvement" as business philosophy, the company since its inception, the products are exported to over 30 countries in Europe, North America, South America, Middle East, Southeast Asia, such as Italy, Spain, Poland, the United States, Argentina, South Africa, Thailand, Indonesia etc.The quality has been widely recognized by customers.
Product Description
Applications:
Primarily used as replacement on industrial drives. The classical belts are recommended in special applications such as V-flat drives. In the same manner these belts are advantages where reverse idlers have to be used, because of smaller heights.
| Product Name | Wrapped V Belt/ Classical Belt/V Belt |
| Transportation | express / by air/ by sea |
| Using | power transimission |
| Cord | polyester ,Kevlar |
| Angle | 40 Degrees |
| Usage | Power Transmission Equipment |
| Keyword | v belt |
 | FeaturesDesigned for excellent flexibility Meets the requirements of small pully diameters High power transmission efficiency Reduced noises Smooth running |
We manufacture the entire range of Classical V-belts. The nominal length designation for these belts is inside length (Li) in inches. The length conversion factors are mentioned in the specification sheet below

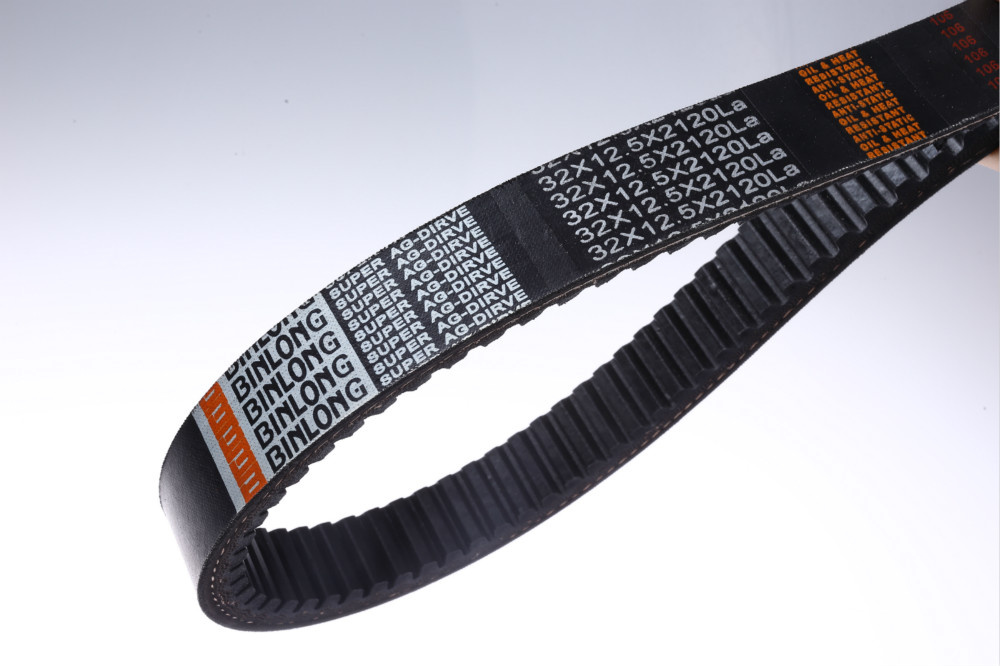

Variable Speed Belts
 | Features: |
| • Excellent transverse rigidity and flexibility to prevent bucking at minimum diameter settings where belt stress is more • Firm gripping action in contact areas provide positive traction for precise & immediate response • High power transmission than regular range of belts • Longer service life • Facilitates smooth running without excessive vibrations • Specific belt design for maximum longitudinal flexibility |
Applications:
For use on variable speed pulley drives requiring exact speed control and maximum range of speed changes. Ideal for recreational equipment, agricultural applications and machine tools
Standards, Dimensions & Product Range:
As per RMA IP 25/1991 Standard (Dimensions in mm)
| Section | Top Width | Angle |
| (mm) | (Deg) | |
| 1022V | 16 | 22 |
| 1228V | 19 | 28 |
| 1330V | 21 | 30 |
| 1422V | 22 | 22 |
| 1426V | 22 | 26 |
| 1430V | 22 | 30 |
| 1524V | 24 | 24 |
| 1526V | 24 | 26 |
| 1528V | 24 | 28 |
| 1622V | 25.4 | 22 |
| 1626V | 25.4 | 26 |
| 1628V | 25.4 | 28 |
| 1822V | 28.5 | 22 |
| 1922V | 30 | 22 |
| 1926V | 30 | 26 |
| 2322V | 36.5 | 22 |
| 2530V | 40 | 30 |
| 2926V | 46 | 26 |
| 3226V | 51 | 26 |
| 3230V | 51 | 30 |
| 4036V | 64 | 36 |
| 4430V | 70 | 30 |
| 4436V | 70 | 36 |
| 4836V | 76 | 36 |
| 6238V | 100 | 36 |
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
| Prod Model: | Variable Speed Belts |
|---|---|
| Product Name: | Wrapped V Belt/ Classical Belt/V Belt |
| Transportation: | Express / by Air/ by Sea |
| Using: | Power Transmission |
| Cord: | Polyester, Kevlar |
| Color: | Black |
| Keyword: | V Belt |
| Usage: | Power Transmission Equipment |
