Prod Model: |
XLB-D900x1200x5 |
Voltage: |
220V/380V |
Dimenison: |
2700*2170*1770mm-4000*3 |
Pressure: |
3mn |
Heating Plate: |
900X1200 |
Floor: |
5 |
Model: |
Xlb-D900*1200*5 |
Model Number: |
Window 1 |
Power: |
3/4 Kw |
Weight: |
4500kg-20500kg |
Motor Power: |
60kw |
Product Description
Characteristic:
High press in unit area
Automatic control, electrical control and PLC control is optional.
Working layes/floors can be designed as request.
Production Description
Model | XLB-D900x1200x5rubber vulcanizing machine |
Total pressure | 300T (clamping Force:3.0MN) |
Heating plate specefications | 900X1200(mn) |
Floor | 5 |
Plunger Diameter | 600mm |
Diatance Between plates | 150mm |
Max.Hydraulic Pressure | 24Mpa |
Max.Pump Power | 60KW |
Type | Frame |
Operation Way | Automatic |
Heating way | Electric |
Weight | 13T |

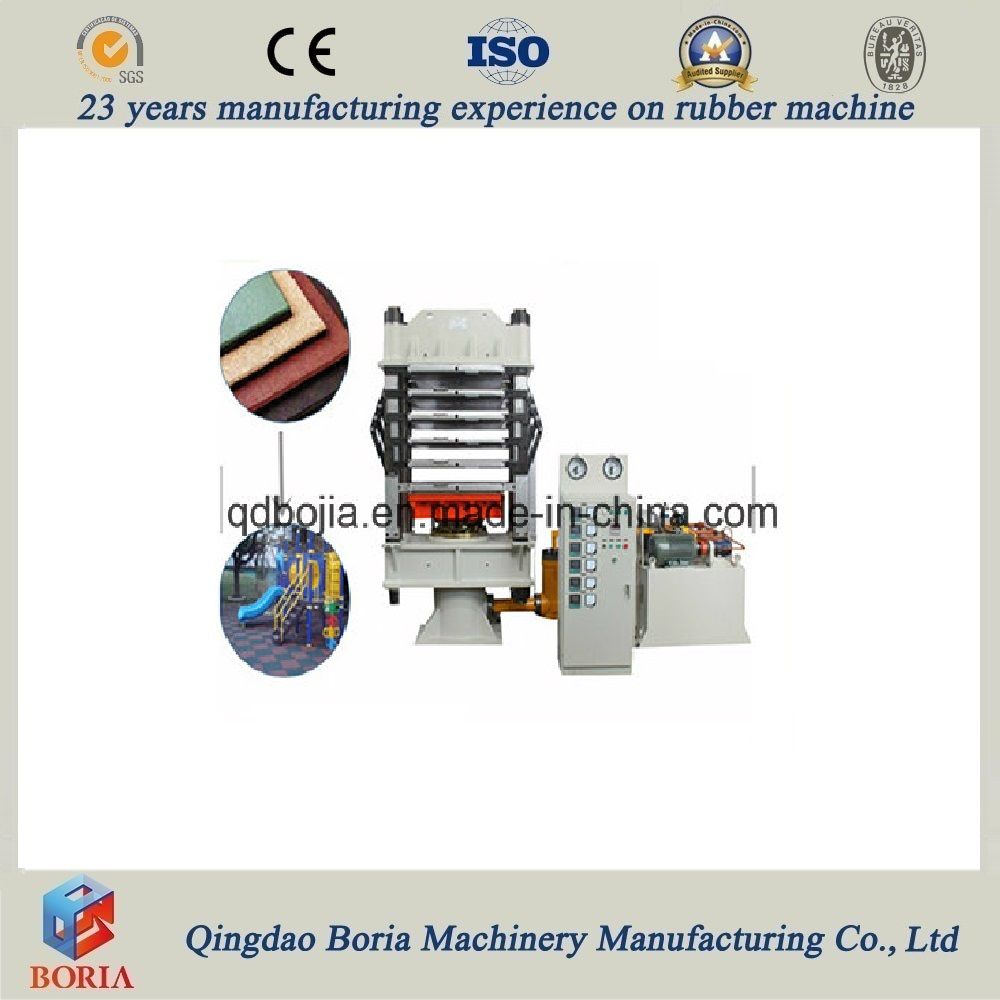

Product Overveiew
300T eva foaming press machine
eva foaming press machine features and advantages
aterial of steel plate | Weldment of frame | Plunger | Heating way &precision temperature control | Hydraulic system (PLC control) |
Q235,more thicker and smooth | Welded together as a whole part , stewing fire treatment after weldment | After polishing,grinding treatment and resist compression test to make the surface smooth and anti-abrasion | Steam ,oil or electric temperature:0-300ºC plate temperature tolerance:≤1ºC | Stable ,reliable and quality |
eva foaming press machine application
Vulcanizing machine is suitable for a variety of vulcanized rubber products, a variety of advanced thermoset compression
molding pressing equipment.
1. Rubber products processing line
(tyres,shoes,handbags,latex gloves,sport balls,mousepad,conveyors,rubber sheets&tiles,
rubber band,seals,insulation boards,etc.,)
2. Plastic runway and artificial grass production line
This machine is mainly used for vulcanizing flat type tape and plastic sheet,just as conveyor belts and rubbertiles.
This machine is mainly used for the production of various kinds of EVA foam slippers, foam board, rubber, bags lining,
insulating material, sports protective material, diving suits, jackets sponges thermoset foam rubber and plastic products
of special equipment.
We take slipper soles as an example:
Flow chart of rubber vulcanizing machine
Mixing: Pour the rubber granules and coloring pigment into the rubber mixing machine, with some adhesive, then begin
stiring. It will take 4-6 mins to be done.
Weighing: weigh the stirred rubber powder according to the floor tiles thickness you want to make.
Paving and Pressing: pour the needed quantity rubber powder into the mould, and float it by trowel. On the bottom ,can
be with some
coarse and black rubber powder, but on the surface should be with fine and colored powder, it can ensure your tiles quality.
Vulcanization Moulding: Put the mould on the vulcanizer layer, generally , it take 3/8 mins to make the tiles,time difference
based
on the thickness of the tiles you ready to make. After finished, it will automaticlly separated, then put it somewhere to dry.
Inspecting: Inspect the tiles' surface . If no aberration, no flaw, then it is of high quality products.
related plate rubber vulcanizing machine
rubber vulcanizing machine pressure : 0.25MN-16MN
three heating types : electric heating,oil heating and steam heating
three structure : column structure,frame structure and E-type
ways of operation : manual or automatic
application : mainly used for vulcanizing and pressing of rubber or plastic products
Qingdao Bojia Machinery Manufacturing Co., Ltd changed officially its name from a state-owned machinery company in October 2007, is a professional manufacturer in rubber machine field of China with high-tech technology. Our factory is located in Jiaonan County of Qingdao, which is very near from Qingdao Port and Qingdao steel factory. To a great extent, it is saving the logistics cost. We have ISO9001: 2008, BV. And if you need other certifications, we will make it for you according to your requirements. Our customers spread all over the world, such as the United States, Germany, Mexico, Colombia, Canada, Singapore, Malaysia, Australia, Korea, Japan, India, Russia etc.
There's experienced engineers and outstanding technical teams in our factory. We could make a professional design specially for you. We often communicate with the customers and technology authority departments of rubber industry, constantly to improve and update our products which could meet the requirements of the customers. And we also could design and manufacture various non-standard products according to users requirements.
Our main products including: Rubber kneader, rubber mixing mill, rubber sheet cooling machine (batch off cooler), all kinds of rubber vulcanizing press machine (semiautomatic and full automatic), rubber extruder, waste tire recycling production line (rubber powder production line and tire retreading equipment) etc.
In order to provide better service and wonderful machines, we will do everything that we could do for each customer.
1. Our company's machines must pass inspection of 3-7 hours of load test operating before they leave the factory, in order to save customers' time and expense of equipment commissioning. And we will send the video to the customers to check. And we also support customers to visit our factory to check the test operating on site if it's convenient for the customers.
2. We provide one year's guarantee and once the equipment damage during this time we supply free of charge until the problems are solved.
3. Our company establishes "CUSTOMER FILE" for sold equipment in the form of return visits regularly; Including equipment's maintenance, troubleshooting and customer feedback.
4. Complete pre-sale service and after-sales service.
5. Complaints and suggestions please email to us. Thank you.
