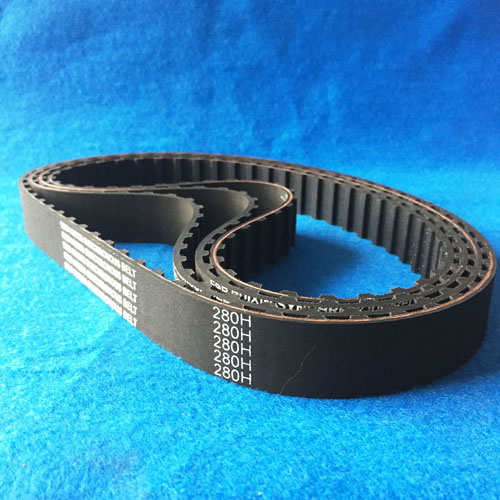

Rubber Transmission Timing Belt From China Factory
Our Company:Cixi Huixin Synchronous Belt Co., Ltd. covers an area of 20 thousand sqm with a more investment of 20 million Yuan RMB. It owns world's advanced belt & pulley production device. It organizes manufacture according to the most perfect production technique; most excellent raw materials & auxiliary materials; and by adopting national standard, international standards and overseas advanced criterion. At present we have more than 30 models and 2000 specifications. The products sell to thirty domestic provinces, cities, autonomous regions, thousands of consumers & units, and also export to America, Europe, southeast Asia etc foreign countries.
The company persists in the purpose of "prosper business by high-tech". It carries forward Huixin spirits of "firm & indomitable, developing & innovative, be bold in achieving first-class". It wholeheartedly serves broad customers by its finest quality, reasonable price and excellent service.

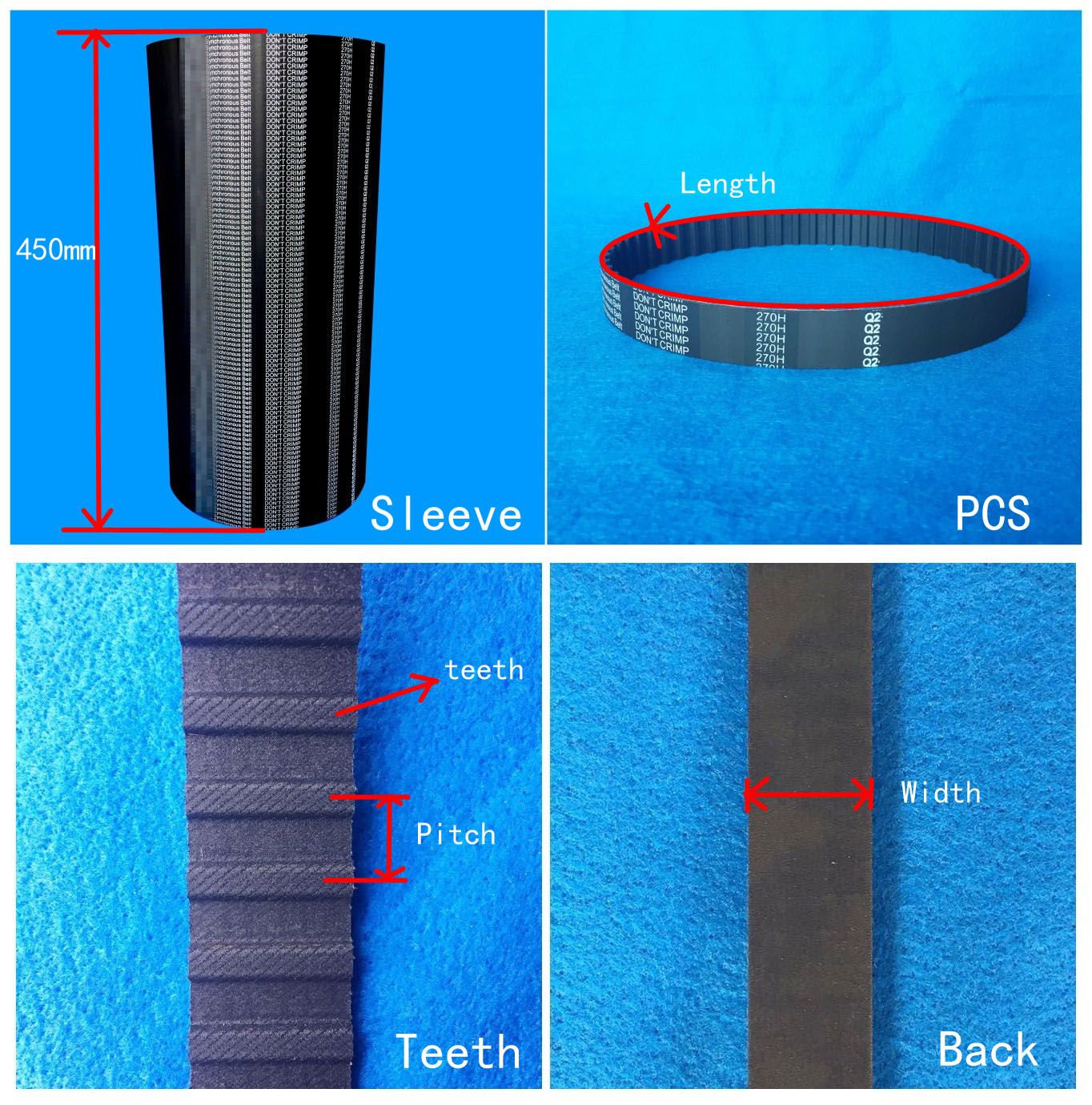

Products Type1. T type tooth industrial rubber synchronous belt| Type | Pitch | Tooth height | Belt thickness | Angle |
| MXL | 2.032 | 0.51 | 1.14 | 40 |
| XXL | 3.175 | 0.76 | 1.52 | 50 |
| XL | 5.080 | 1.27 | 2.30 | 50 |
| L | 9.525 | 1.91 | 3.60 | 40 |
| H | 12.70 | 2.29 | 4.30 | 40 |
| XH | 22.225 | 6.35 | 11.20 | 40 |
| XXH | 31.750 | 9.53 | 15.70 | 40 |
| T2.5 | 2.5 | 0.7 | 1.30 | 40 |
| T5 | 5 | 1.2 | 2.20 | 40 |
| T10 | 10 | 2.50 | 4.50 | 40 |
| T20 | 20 | 5.00 | 8.00 | 40 |
| AT5 | 5 | 1.20 | 2.70 | 50 |
| AT10 | 10 | 2.50 | 5.00 | 50 |
| AT20 | 20 | 5.00 | 8.00 | 50 |

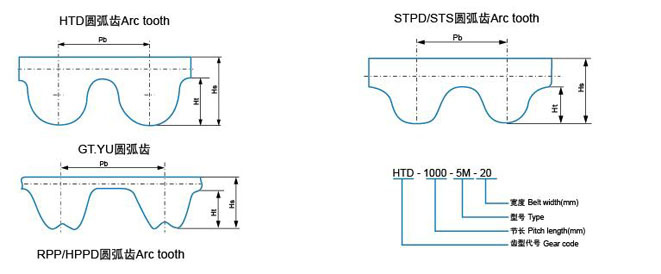

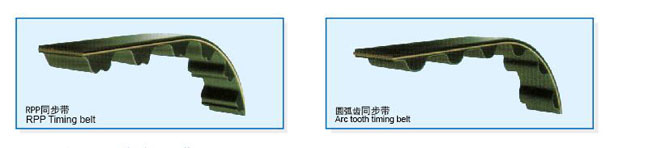

2. Arc tooth industrial rubber synchronous belt| Gear code | Type | Pitch | Tooth height | Belt thickness |
| HTD | 3M | 3 | 1.22 | 2.40 |
| 5M | 5 | 2.06 | 3.80 |
| 8M | 8 | 3.36 | 6.00 |
| 14M | 14 | 6.02 | 10.00 |
| 20M | 20 | 8.40 | 13.20 |
| STPD/STS | S2M | 2 | 0.76 | 1.36 |
| S3M | 3 | 1.14 | 1.90 |
| S4.5M | 4.5 | 1.71 | 2.81 |
| S5M | 5 | 1.91 | 3.40 |
| S8M | 8 | 3.05 | 5.30 |
| S14M | 14 | 5.30 | 10.20 |
| RPP/HPPD | P2M | 2 | 0.76 | 1.36 |
| P3M | 3 | 1.15 | 1.90 |
| P5M | 5 | 1.95 | 3.50 |
| P8M | 8 | 3.20 | 5.50 |
| P14M | 14 | 6.00 | 10.0 |
Raw materials1.Belt:neoprene (CR) as the main raw materials (imported from Japan)
2.Skeleton materials:glass fiber (imported from Japan)
3.Tooth surface: nylon 66 high spandex
Characteristics:1.Anti-cracking properties
2.Ozone excellent performance
3.Anti-aging
4.Heat resistance
5.Oil resistance
6.Abrasion-resistant
7.Small initial tension
8.Accurate transmission ratio and without slip
Features:1.With synchronous belt drive is the use of tooth and tooth meshing with the impetus to pass a new type of transmission mode
2.With accurate synchronous transmission function, do not beed lubrication and so slip,no pollution, less noise, transmission efficiency of 0.98, the speed ratio range up to 1.10, allowing wire speed up to 50/seconds, the transmission rate from several hundred watts to the hundreds of kilowatts, suitable for multiple axis drive

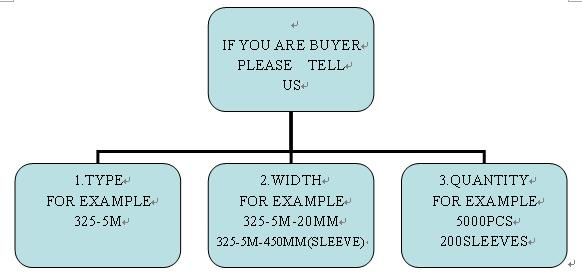

Process of Purchase
We will make invoice to you confirm.
You can ask me to catelogue and mold list to choose the required products.Our Service * Inquiry and consulting support. * Sample testing support

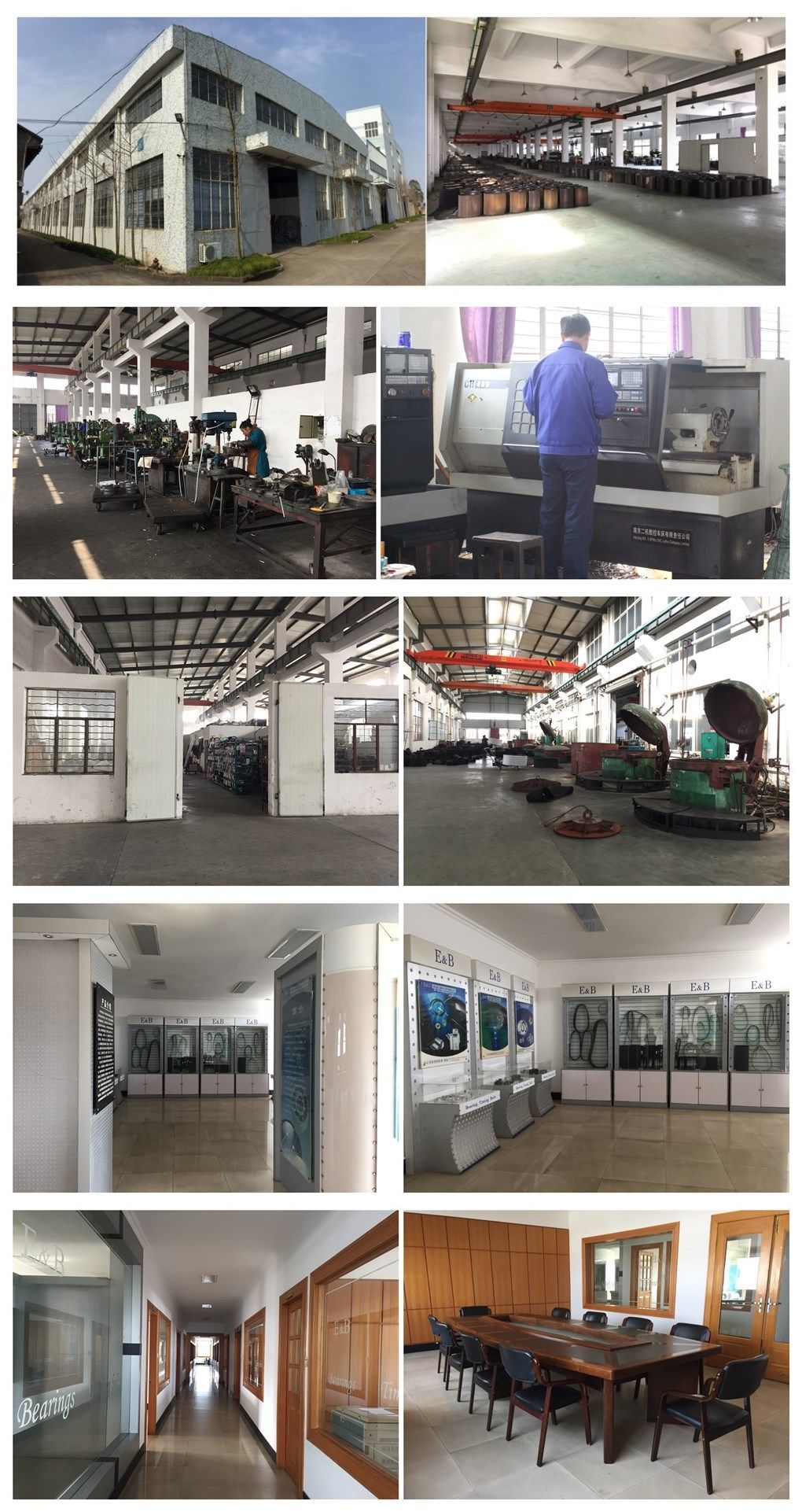

* View our Factory. * Service after sales
* Fast Delivery * Reliable shipment
FAQ Q: Are you trading company or manufacturer ?
A: We are factory.Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Contect Us:
Add: No.288, Shengshan Road(west), Shengshan Town, Cixi City, Zhejiang, China
Tel: +86-574-63542128
Mobile: 15057480530
http://www.cn-drive.com
Cixi Huixin Synchronous Belt Co., Ltd Founded in 2000 and located in Zhejiang Province in China, and has passed ISO9001 quality control system certification. We are specialized in manufacturing "E&B" brand rubber timing belt, double-side tooth timing belt, flat belt, coated belt, ribbed belt, car belt etc rubber drive belts and its auxiliary pulley series products.
The company covers an area of 20 thousand sqm with a more investment of 20 million Yuan RMB. It owns world's advanced belt & pulley production devices, organized manufacture according to the most perfect production technique, most excellent raw materials & auxiliary materials, and by adopting national standard, international standards and overseas advanced criterion. At present, we have more than 30 types and 3, 000 specifications of products. We can also design and manufacture timing belts according to customers' specific requirements. The products sell to thirty domestic provinces cities, autonomous regions, thousands of consumers & units, and also export to America, Europe, and Southeast Asia etc foreign countries.
The company has advance technology and excellent equipment, strict control in working procedure, modern and scientific manage. All of these can assure the products quality.
The company persists in the "purpose of innovative, create excellence, customers are their focus". It carries forward Huixin spirits of "prosper business by high-tech, firm & indomitable, be bold in achieving first-class". It wholeheartedly serves broad customers by its finest quality, reasonable price and excellent service.
