Prod Model: |
sanitary pads machine |
Machine: |
Full-Automatic Adult Diaper Machine Manufacture |
Conditions: |
New |
Model Number: |
Ynk300 |
Voltage: |
380V, 50Hz |
Power: |
250-350kw |
Dimension(L*W*H): |
35m*3.5m*5m |
Weight: |
About 65tons |
Rate Of Finished Products: |
More Than 98% |
Rate Of Open Successfully: |
More Than 88% |
Detected Rate: |
Less Than 2% |
Real Running Speed: |
400-500PCS/min |
Automatic Grade: |
Automatic |
Certification: |
ISO |
Condition: |
New |
Type: |
Customerized |
Product Description

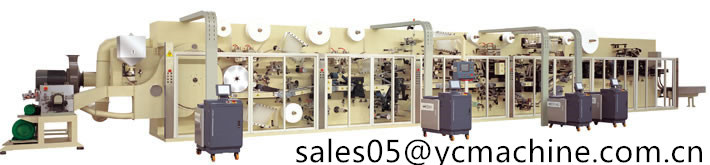

Seven Generation pads with wings machine
the video of the sanitary napkin machine is:https://www.youtube.com/edit?o=U&video_id=tbAztseFddcFour kinds of sanitary napkin machine for you to choosePart 1 Parameter |
Model | YC-HY400 | YC-HY600-FC | YC-HY600-HSV | YC-HY800-SV |
Name | Economic type | Frequency type | Semi servo type | Full servo type |
Automaticly | Semi-auto | Full auto | Full auto | Full auto |
Product size | 2 sizes classic thick & ultra thin wing & straight | 2 sizes classic thick & ultra thin wing & straight | 2 sizes classic thick & ultra thin wing & straight | 2 sizes classic thick & ultra thin wing & straight |
Design speed | 500pcs/min | 800pcs/min | 800pcs/min | 1000pcs/min |
Production speed | 300-400pcs/min | 500-600pcs/min | 500-600pcs/min | 700-800pcs/min |
Power | 150KW | 200 KW | 200 KW | 250KW |
Power source | 380V, 50HZ, 3 phase 5 wire | 380V, 50HZ, 3 phase 6 wire | 380V, 50HZ, 3 phase 7 wire | 380V, 50HZ, 3 phase 8 wire |
Efficiency | >=85% | >=88% | >=88% | >=88% |
Rejection rate | <= 3% | <= 2% | <= 2% | <= 2% |
Machine weight | 45 Ton | 60 Ton | 60 Ton | 60 Ton |
Machine size | 22m * 3m * 3m | 28m * 3m * 3m | 28m * 3m * 3m | 28m * 3m * 3m |
Operating size | 25m * 7m * 5m | 33m * 7m * 5m | 33m * 7m * 5m | 33m * 7m * 5m |
Air pressure | 0.6-0.8MPA | 0.6-0.8MPA | 0.6-0.8MPA | 0.6-0.8MPA |
Machine color | Customlized | Customlized | Customlized | Customlized |
Machine direction | Customlized | Customlized | Customlized | Customlized |
Part 2 Electric part |
PLC | No have | Mitsubishi / Simense | Mitsubishi / Simense | Mitsubishi / Simense |
Touch screen | × | Mitsubishi / Simense | Mitsubishi / Simense | Mitsubishi / Simense |
Unwinding type | × | Initiative | Initiative | Initiative |
Materials shaft stand | Machanical shaft stand | Pneumatic shaft stand | Pneumatic shaft stand | Pneumatic shaft stand |
Tension control system | × | √ | √ | √ |
Unwinding motor | × | Invertor motor | Invertor motor | Servo motor |
Web guider | Manual | Digital & Auto | Digital & Auto | Digital & Auto |
Driving system | One main motor | Three main motors | Servo motor independently control | Servo motor independently control |
Detective | Manual | Auto | Auto | Auto |
Materials splicing | Manual | Auto | Auto | Auto |
Safety door | Back | Back & Front | Back & Front | Back & Front |
Flat belts | China | Switzerland | Switzerland | Switzerland |
Timing belts | China | USA | USA | USA |
Bearing | China | Japan | Japan | Japan |

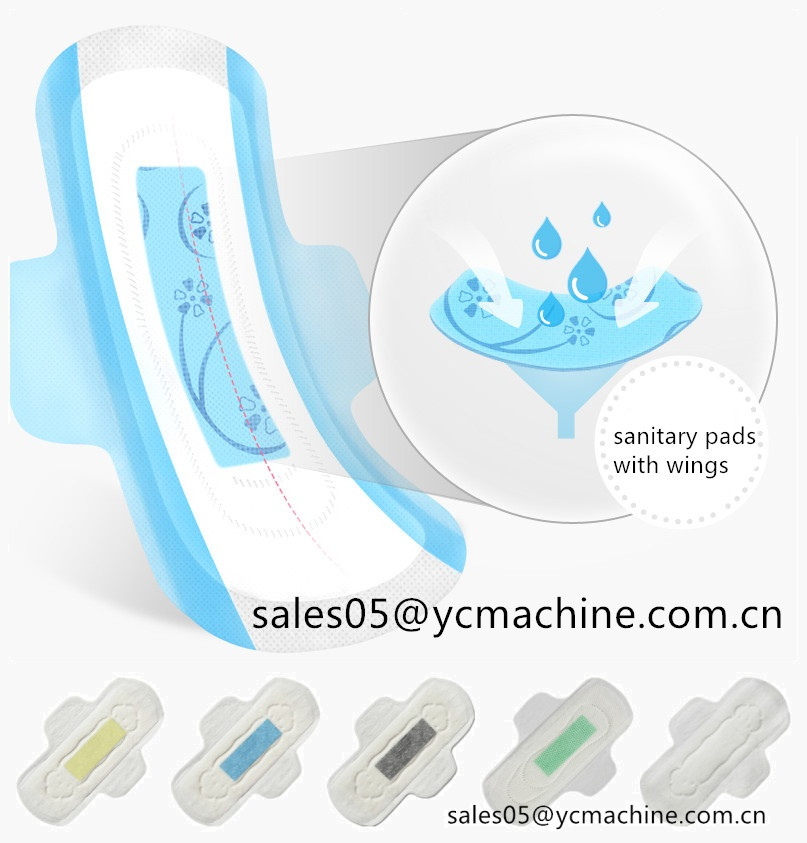

the product of the machine

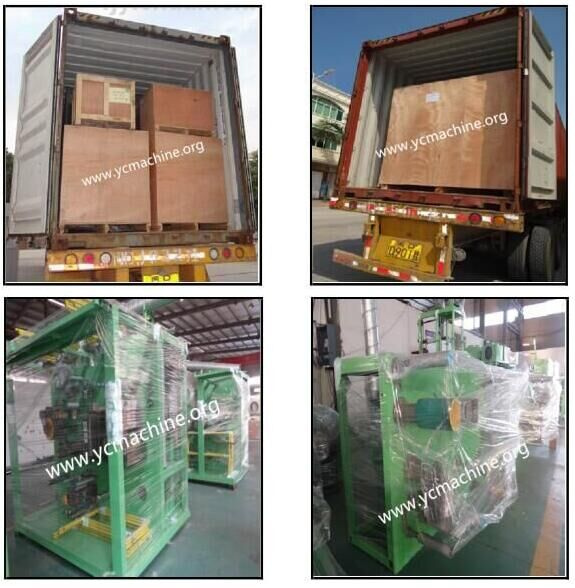

Packing of Adult Diaper Machine

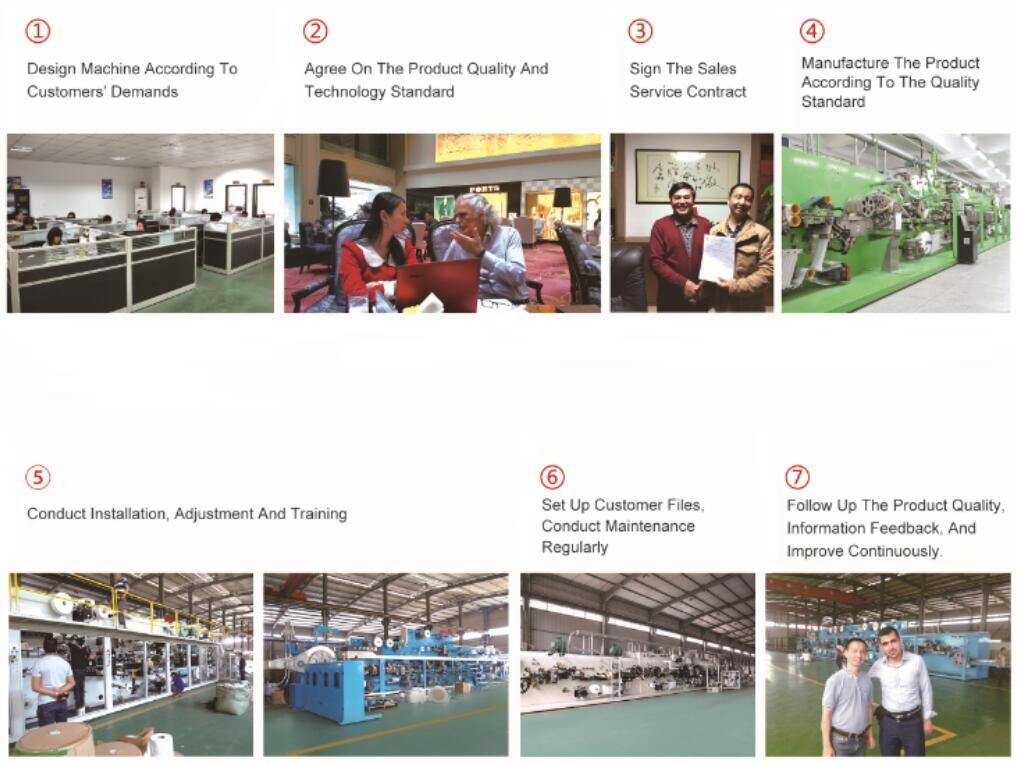

How to Buy Our Machine? Our Plant Frequently Asked QuestionQ:Are you a machine manufacture or trading company?A: We are a machine manufacture with 13 years history with making baby diaper machine, adult diaper machine, pull up diaper machine, sanitary napkin machine and underpad machine. Q: What is the delivery time for a set machine?A: 120 days as a fastest delivery time. As a manufacture, we need time to make our machine perfect in every aspect. Q: What is your term of payment?A:T/T is our first choice, L/C at sight is Ok as well. Q: How long is the warranty period?A: one year after the testing finished at the buyer's workshop. Q: Will you send the engineer to install machine and train our workers in our factoryA: of course. We will send engineer to installing and training. But the salary and accommodation of technician will be on the buyer' s side. Q: How long can I get the machine?we will begin to make your machine once we receive your 30% down payment.
around 4 month, we will finish the produce and ask the buyer to check the machine and pay for the rest money.
about 10 days for packing the machine, arrangment of shipping and customs clearance.
some days for the shipping and some days for the customs clearance in the buyers country.
Finally, you can get the machine. Q: Can I buy raw material from your company?A: yes. we have a trading company, which cooperate with us for many years. we can help you to find raw material.Q: How long can I get the machine?we will begin to make your machine once we receive your 30% down payment.
around 4 month, we will finish the produce and ask the buyer to check the machine and pay for the rest money.
about 10 days for packing the machine, arrangment of shipping and customs clearance.
some days for the shipping and some days for the customs clearance in the buyers country.
Finally, you can get the machine. Q: Can I buy raw material from your company?A: yes. we have a trading company, which cooperate with us for many years. we can help you to find raw material. Contact: Ivy
Mob: +86 150 6088 3935
Tel: +86 595 8761 9521
Quanzhou Niso Industry Co., Ltd. is a professional supplier of baby diaper raw materials, adult diaper raw materials, sanitary napkin raw materials all in one.
NISO covers an area of 5000 square meters, gets CE, ISO, SGS certification for non woven, frontal & side tape, back sheet, spandex used on diaper, sanitary napkin and under pad. And cooperate with world famous brand for pulp, SAP, glue and so on.
More than1000 containers diaper and sanitary napkin raw materials have been shipped to Asia, MID-east, Europe, South America, Africa countries.
High quality products, excellent service and a good reputation are our principle.
Any question, please don't hesitate to contact with us.
