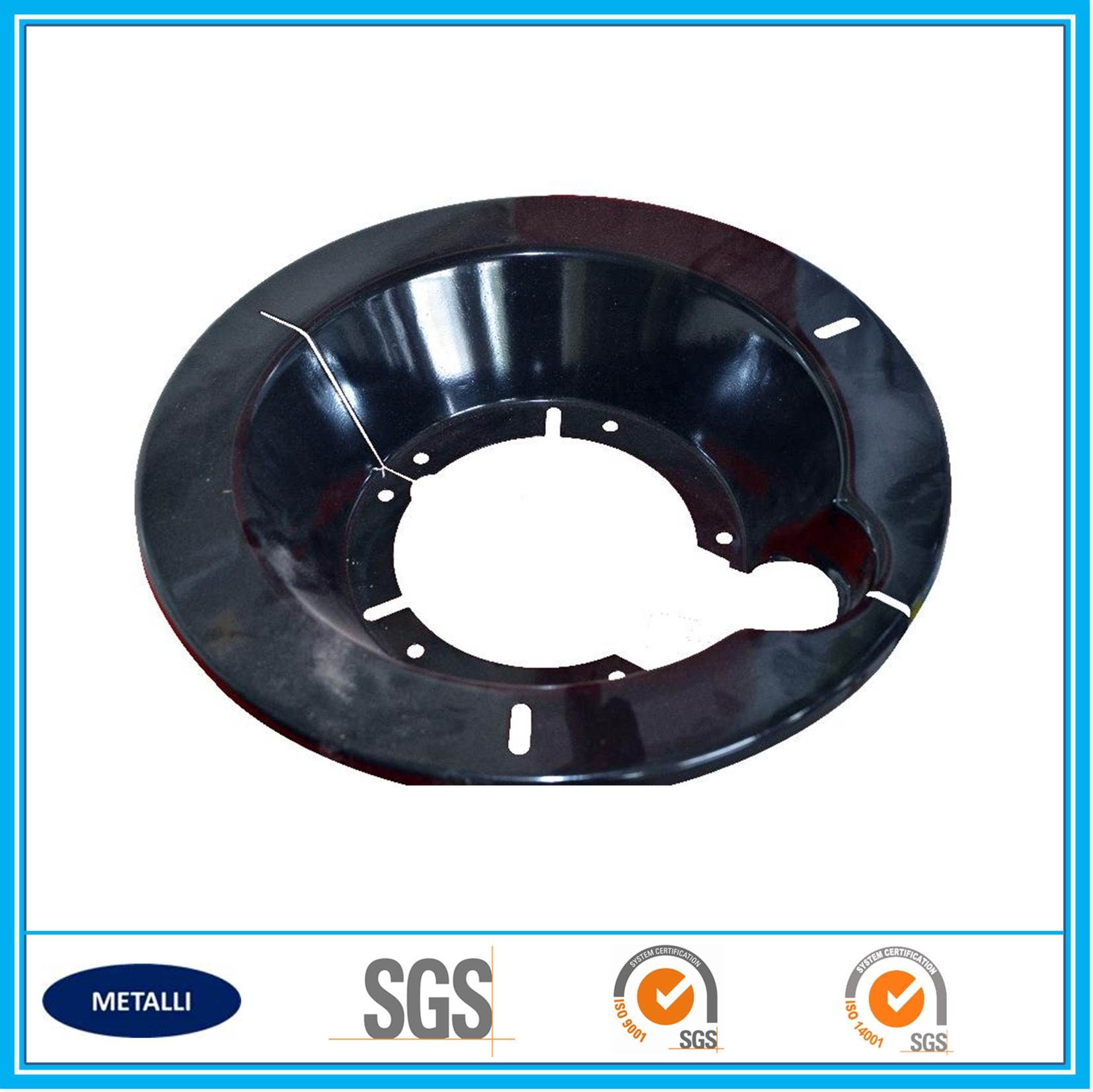

Sheet Metal Drawing Auto Part Dust Boot

Prod Model:	db 1002
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Metal Material:	Soft Metals Suitable for Stamping and Drawing
Length Or Diameter:	up to 500 mm
Width Or Diameter:	up to 500 mm
Height:	up to 500 mm
Wall Thickness:	0.5 to 10 mm
Inner Chamfer Radius:	Min 2 to 4 mm
Outer Chamfer Radius:	Min 4 to 6 mm
Surface Finish:	Suitable Surface Finish as Per Requirements
Packing Way:	Best Suitable Packing Way
Application:	Auto Components
Process:	Forming Process
Industry:	Metal Stamping Parts
Material:	Mild Metals
Surface Processing:	Suitable Surface Finish

Product Description

1. Material
No.	Material Description
1.1	Iron/steel like 20g/Q235A/Q235B/15CrMog/15CrMoR,stainless steel like 00Cr17Ni14Mo2/00Cr19Ni10/0Cr17Ni12Mo2/0Cr18Ni9/0Cr18Ni10Ti/0Cr18Ni12Mo2Ti/1Cr18Ni9/0Cr26Ni5Mo2/00Cr18Ni5Mo3Si2/09MnNiDR/16Mng/16MnDR/16MnR,Aluminum alloy,Copper,etc.
2. Product size and tolerance
No.	Specification				Size					Tolerance
2.1	Length/Width/Outer Diameter (mm)				≤500, or customized					Max ±1
2.2	Wall Thickness (mm)				0.5 to 10, or customized					Max ±0.4
2.4	Height (mm)				≤500 or customized					Max ±1.5
2.5	Inner chamfer radius (mm)				Min 2-4					Max ±1
2.6	Outer chamfer radius (mm)				Min 4-6					Max ±1
3. Surface finish and other properties
No.	Item			Description
3.1	Surface finish			Powder coating,electrophoresis coating,polishing, blackening, painting, shot-blasting, etc.
3.2	Surface roughness (Ra)			As per customer's requirements
3.3	Manufacturing Process Brief			Material preparation→Deep drawing →Reshaping→Surface treatment
4. Packing,Shipping and others
No.	Item			Description
4.1	Packing			To be packed in wooden crate with protection film
4.2	Marking			Each box to be legibly marked with the name of the manufacturer or supplier, the designation of material,condition,dimensions and weight
4.3	Shipping tools			Ship goods by van to departune port then by sea to desitination port
5.Quality management and spot management
No.	Item			Description
5.1	Quality control			1. Quality assurance a. Incoming material quality assurance; b. Process quality assurance; c. First sample quality assurance; d. Final quality assurance. 2. Process management-The right results are from the right process a. Production process card control; b. Standard operational procedure;c.Job certification;d. Quality chart monitor. 3. Equipment and facility management a. Periodic maintenance; b.Preventative maintenance. 4. Mold management a. Mold life management; b.Periodic and preventative maintenance; c. Periodic inspection.
5.2	Inspection Tools			Altimeter,Vernier caliper,Micrometer,3D coordinate measuring instrument
5.3	Spot management			"5S" management (sort,set in order,shine,standard,sustainable).

6. Brief of  metal fabrication

Deep drawing

Deep drawing is a sheet metal forming process in which a sheet metal blank is radially drawn into a forming die by the mechanical action of a punch. It is thus a shape transformation process with material retention. The process is considered "deep" drawing when the depth of the drawn part exceeds its diameter. This is achieved by redrawing the part through a series of dies. The flange region (sheet metal in the die shoulder area) experiences a radial drawing stress and a tangential compressive stress due to the material retention property. These compressive stresses (hoop stresses) result in flange wrinkles (wrinkles of the first order). Wrinkles can be prevented by using a blank holder, the function of which is to facilitate controlled material flow into the die radius.

Stamping

Stamping (also known as pressing) is the process of placing flat sheet metal in either blank or coil form into a stamping press where a tool and die surface forms the metal into a net shape. Stamping includes a variety of sheet-metal forming manufacturing processes, such as punching using a machine press or stamping press, blanking, embossing, bending, flanging, and coining.[1] This could be a single stage operation where every stroke of the press produces the desired form on the sheet metal part, or could occur through a series of stages. The process is usually carried out on sheet metal, but can also be used on other materials, such as polystyrene.
Stamping is usually done on cold metal sheet. See Forging for hot metal forming operations.

Metal spinning

Metal spinning, also known as spin forming or spinning or metal turning most commonly, is a metalworking process by which a disc or tube of metal is rotated at high speed and formed into an axially symmetric part.[1] Spinning can be performed by hand or by a CNC lathe.
Metal spinning does not involve removal of material, as in conventional wood or metal turning, but forming (moulding) of sheet material over an existing shape.
Metal spinning ranges from an artisan's specialty to the most advantageous way to form round metal parts for commercial applications. Artisans use the process to produce architectural detail, specialty lighting, decorative household goods and urns. Commercial applications include rocket nose cones, cookware, gas cylinders, brass instrument bells, and public waste receptacles. Virtually any ductile metal may be formed, from aluminum or stainless steel, to high-strength, high-temperature alloys. The diameter and depth of formed parts are limited only by the size of the equipment available.
