Shifeng Dipped Nylon 6 Tire Cord Fabric
Technical Parameter NO. | Item | Unit | Cord Construction |
2100dtex/2 (1890D/2) | 1870dtex/2 (1680D/2) | 1400dtex/2 (1260D/2) | 1400dtex/3 (1260D/3) | 930dtex/2 (840D/2) |
1 | Breaking Strength | N/pc | 303.8 | 269.5 | 205.8 | 303.8 | 132.3 |
2 | EASL 100N | % | 8±1.0 | | | 9.5±0.8 | |
EASL 88.2N | | 8±1.0 | | | |
EASL 66.6N | | | 8±1.0 | | |
EASL 44.1N | | | | | 8±1.0 |
3 | Adhesion H-Test 136ºC,50min,3Mpa | N/cm | 166.6 | 156.8 | 137.2 | 166.6 | 107.8 |
4 | Variation coefficient of Breaking Strength | % | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 |
5 | Variation coefficient of Elongation at Breaking | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 |
6 | Dip Pick up | 4.5±1.0 |
7 | Elongation at Breaking | 21 | 20 | 19 | 21 | 18 |
8 | Cord Gauge | mm | 0.78±0.04 | 0.75±0.04 | 0.65±0.04 | 0.78±0.04 | 0.55±0.04 |
9 | Cable Twist | T/m | 320±15 | 330±15 | 370±15 | 320±15 | 460±15 |
10 | Shrinkage Test 160ºC,2min;≤ | % | 7.0 | 7.0 | 7.0 | 7.0 | 6.5 |
11 | Moisture content | % | 1.0 |
Dipped tire cord fabric:
It is mainly made of nylon 6,nylon 66 and polyester, has advantage as high breaking strength, excellent impact resistance, high fatigue-proof strength and good adhesive strength with rubber.
It is the high quality skeleton material of various rubber products which take the important role that insures shape and bears load.
Specifications:
1.Raw material: High quality nylon yarn.
2.Supply type: Nylon -- 840D/1,840D/2,1260D/1,1260D/2,1680D/1,1680D/2
3.Width: make to order (28-60 inch generally)
4.Density: make to order (18-30 EPI generally)
5.Weight: make to order
6.Color: Brown or black
7.Characteristic: High breaking strength
High anti-fatigue strength
Excellent impact resistance
Good bearing performance
Good adhesive strength with rubber
Using technological equipment and skills to ensuring product quality

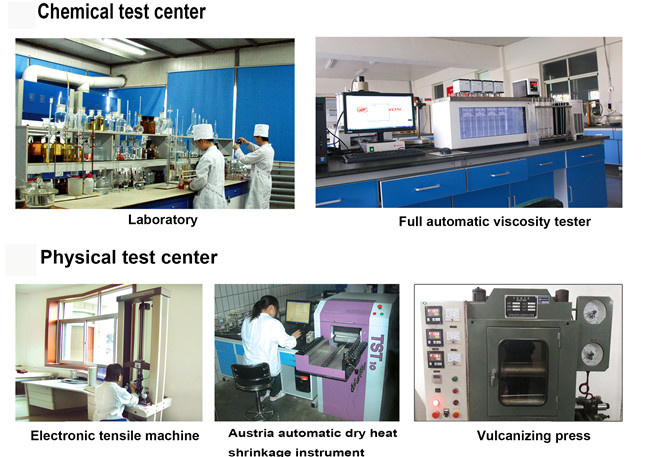

Advanced test equipment was strong guarantee for products quality

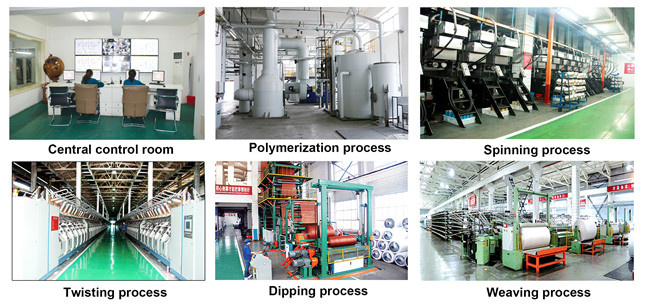

Process and Machine :

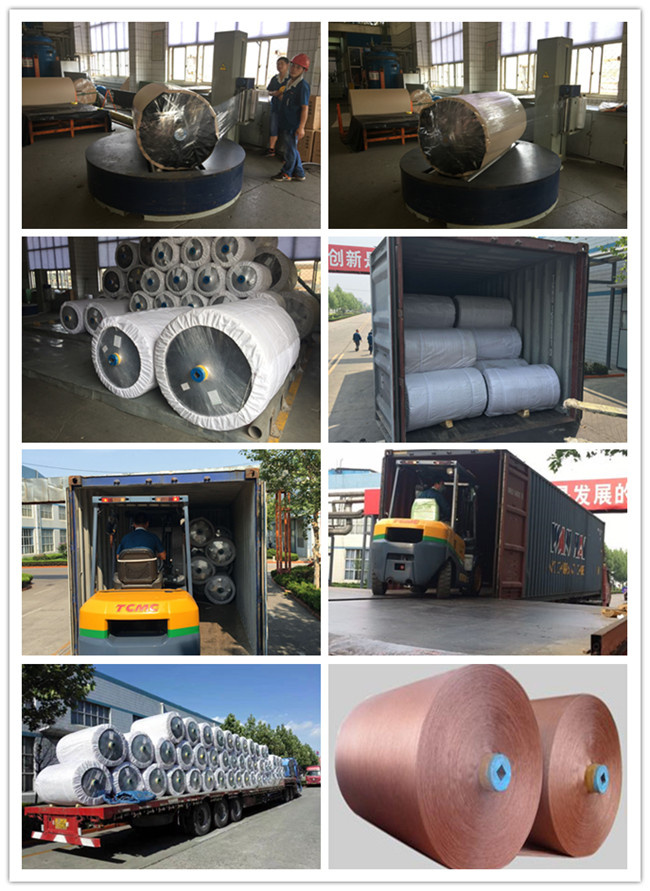

Package & Delivery:
1.Package:
International standard export packing in rolls or according to customer's requirement.
(Wood / iron / paper shaft; The fabric is wound on a wooden shaft / iron shaft, then wrapped with black polyethylene film and kraft paper, and then covered by PE film, finally tightly PP woven bag. Every roll weight/length according to customer's requirement.)
2.Payment Terms: 100% L/C at sight or 30% T/T in advance, 70% at sight of B/L copy.
3.MOQ: 2000kg for one size4.Delivery Time (after received workable deposit): 2-5 days for samples :15-20 days for 1-3 40fcl containers
20-30 days for 3-5 40fcl containers
5.Sample: Free supply, Express Cost more than 15 USD, please tell me account No. of DHL,TNT,EMS etc, We do freight collect.
6.Loading port: Qingdao port or according to customer's requirement.

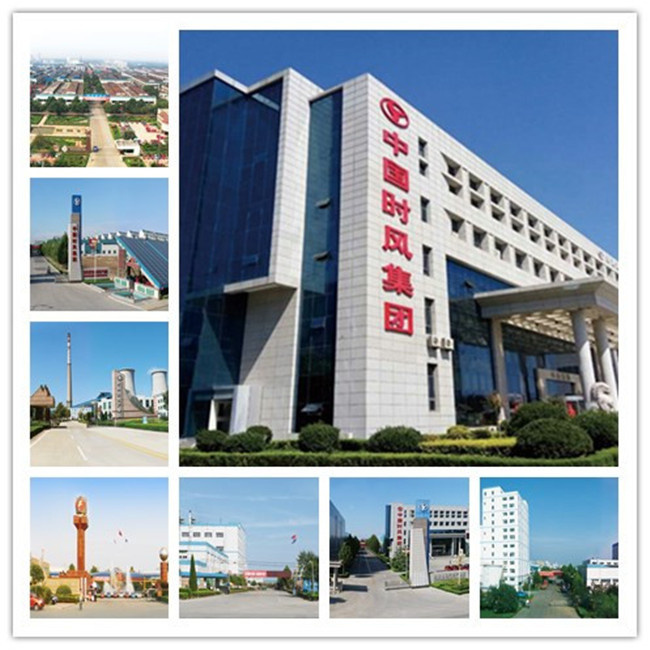

Company Information:
Shifeng group was founded in May 18, 1993, covers an area of 5000 mu, the total assets of 20 billion yuan, 30000 employees. The main products are three wheel cars, tires, low speed trucks, light trucks, electric sightseeing cars, tractors, engines and combine harvesters. The parent company of Shandong Shifeng (Group) limited liability company under the five industrial park, five joint ventures and wholly-owned subsidiaries, six professional production plant, with the wind Central Research institute. When the brand value of more than 50 billion yuan. More than 1500 marketing outlets and more than 2000 supporting enterprises, products are exported to the United States, Mexico, Albania and other more than 50 countries.
