Side Sealing PE Zipper Bag Making Machine (ZK-800B)
| Price: |
US $ 7000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
ZK-800B Side sealing PE zipper bag making machine[1].Feature
1) This machine has following functions: edge-folding, end-folding, heat-fitting, spot-cutting, drilling, welding, and heat-cutting. It can be used to manufacture various types of clip-chain sealing bags, such as inside heat-fitting with spot-cutting, outside heat-fitting with locks.
2) This machine has used advanced computer-controlled, liquid crystal display and automatic serving motor-driven.
3) It can cut clip-chain and film, automatically alarm, shut down automatically when no material, stop printing automatically when electric eyes lapse, stop working automatically when temperature is not enough, and fold edges by using photoelectric corrective hemming and magnetic tension.
4) This machine operates easily, seals firmly and has quality appearance.
5) The whole procedure is operated automatically from single film raw material to electric eyes correcting, edge folding, end folding, zipper fitting, pasting, edge welding, edge cutting, ultrasonic wave, electronic eyes printing, drilling, heat cutting, and automatically counting.
[2].Main Technical Specification| Model | ZK-800B |
| Raw Material | PP, LDPE, non-woven |
| Heater | 3.5KW |
| Bag Making Width | 750mm(about 21.65inch) |
| Bag Making Length | 450mm(about 17.71inch) |
| Bag Making Speed | 40-80pc/min, 8-6m/min |
| Film Thickness | 0.03-0.09mm(single layer) |
| Servo motor | 2KW |
| Main motor | 2.2KW |
| Food-out motor | 0.37KW |
| Ultrasonic | 1set |
| Conveying Electrical | 0.75KW |
| Cooling | 0.37KW |
| Voltage | 220V |
| Total Power | 17KW |
| Install dimension | 6500×1600×1800mm |
| Total Weight | 2200KGS |
3. pictures show

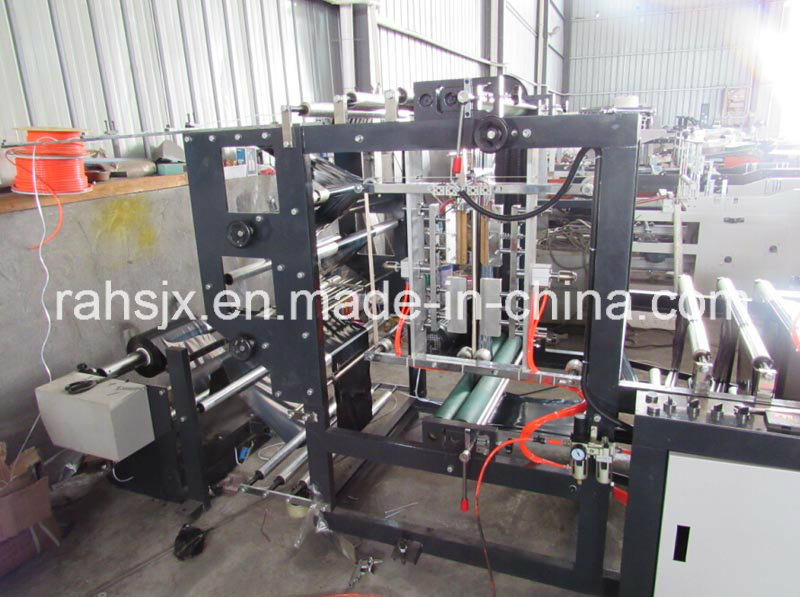

1) zipepr attach part
2) ultrasnic sealing

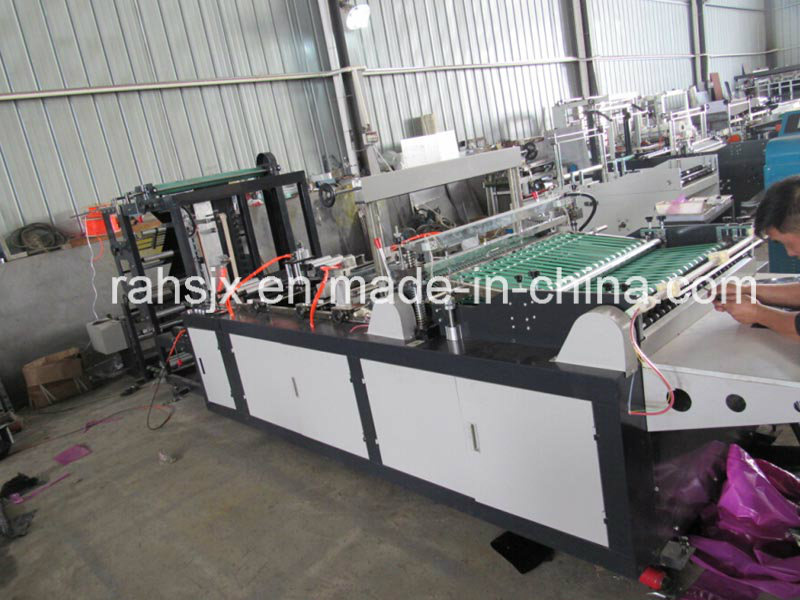

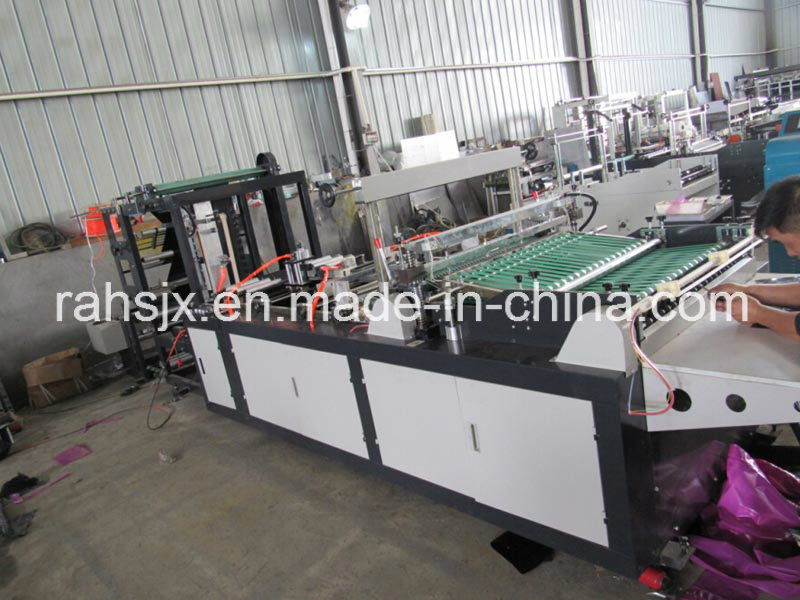

3) zipper bag machine full photo

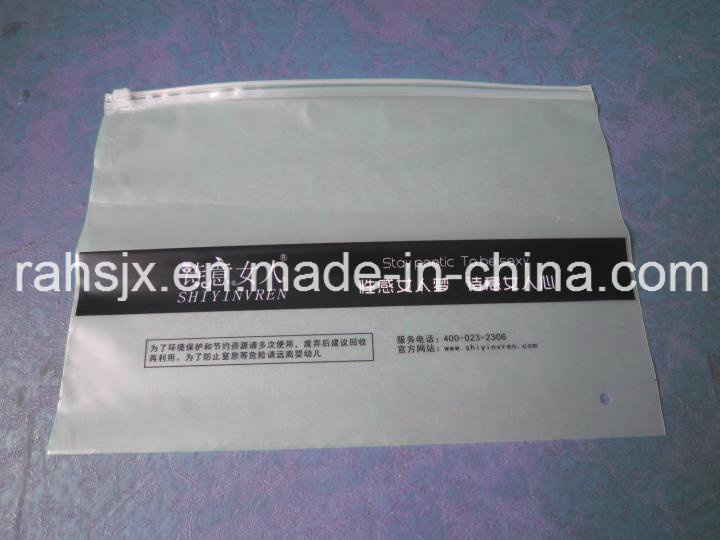

4) bag picture
| Prod Model: |
ZK-800B |
| Bag Making Speed: |
0-80PCS/Min |
| Main Motor: |
2.2kw |
| Gross Weight: |
2200kg |
| Install Dimension: |
6.5X1.6X.18m |
| Machine Type: |
Sealing Machine |
| Computerized: |
Computerized |
| Type: |
Side Sealing Bag Making Machine |
| Product Line: |
1 Line |
| Seals Mode: |
Side Sealing |
