Single/Double/Triple Layer Forming Fabrics for Paper Making Machine

Name: Single/Double/Triple Layer Forming Fabrics for Paper Making Machine
Brand: FullPackage
SKU: 839194725
Availability: InStock
Rating: 5 (71 reviews)

Price:	US $ 15/Square Meter
Min Order:	1/Square Meter
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

SUN HONG PM CLOTH

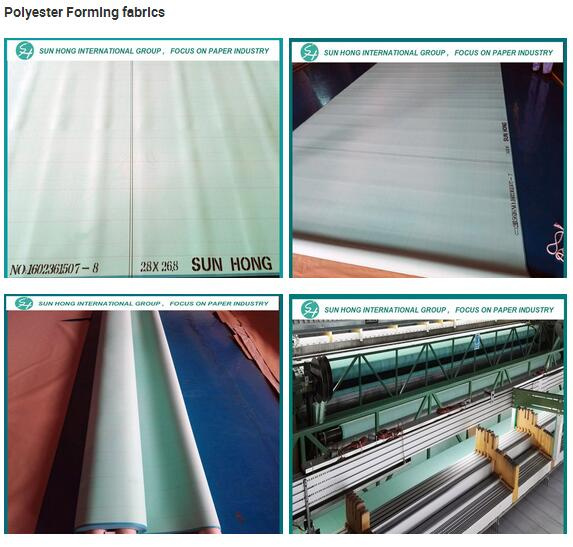

Polyester Forming fabrics.
Paper making polyester forming fabrics can be divided into 4-shed, 5-shed, 8-shed, 16-shed, 24-shed according to the weaving type. Single layer, double layer, two-and a half layer fabric and triple-layer fabric are the three common Items.

4-shed and 5-shed series single layer polyester forming fabrics are the two widely used polyester forming fabric in paper making, mainly used for producing cultural paper (single glue, double glue and color glue), printing paper, glazed paper, packing paper, common newsprint. Suitable for common fourdrinier paper machine.

8-shed single layer polyester forming fabric is suitable for kraft paper, cardboard , corrugated paper making. Also could be used for producing common printing paper. Suitable for common fourdrinier paper machine.

8-shed double layer fabric is suitable for producing quality printing paper. For example ,dictionary paper, offset printing paper, newsprint and wrap paper. It can be used for tissue paper making and the surface pulp, lining pulp, core pulp and bottom pulp of the board paper etc. Suitable for medium and high speed paper making machine.

16-shed double and a half layer polyester forming fabric is suitable for producing quality printing paper, such as offset printing paper, copper plate paper, newsprint and cigarette paper series (wrap paper and filter tips paper), Also is could be used for producing toilet paper, tissue paper and surface pulp, lining pulp, core pulp and bottom pulp of the board paper etc. Suitable for medium and high speed paper making machine.
Multi-shed three-layer fabric is suitable for producing quality printing paper, tissue paper and cigarette paper etc. Suitable for high speed paper making machine.

The below data sheet comes from SUN HONG .

Let us know before you use it.We are willing to share the information with peers.

wire Diameter(mm)

weaving Series / Types	Model NO.	warp	weft	surface strength(N/cm)	Air Permeability (m³/m²h)
4-shed single layer fabric	SH85254	0.20	0.25	≥ 600	7500±500
	SH85274	0.20	0.27	≥ 600	7600±500
	SH85204	0.20	0.22	≥ 600	6500±500
5-shed single fabric	SH85255	0.20	0.25	≥ 600	7600±500
	SH85285	0.22	0.28	≥ 500	7800±500
	SH85205	0.20	0.21	≥ 600	6700±500
8-shed single layer fabric	SH8508	0.22	0.40	≥700	8500±500
8-shed single layer fabric	SH87358	0.22	0.35	≥700	8500±500
8-shed double layer fabric	SH856188	0.17	0.19/0.22	≥850	6800±500
	SH60188	0.18	0.18/0.20	≥900	5700±500
	SH862188	0.15	0.16/0.17	≥900	8500±500
16-shed 2.5 layer fabric	SH85016	0.28	0.20,0.27/0.50,0.50	≥1200	8500±500
	SH854516	0.25	0.20,0.25/0.45,0.45	≥1250	8000±500
	SH852516	0.18	0.13,0.18/0.25,0.25	≥1500	6500±500
	SH853516	0.20	0.13,0.25/0.35,0.35	≥1500	7000±500
	SH872516	0.18	0.13,0.20/0.25,0.25	≥1500	6200±500
	SH873516	0.20	0.13,0.25/0.35,0.35	≥1500	6300±500
20-shed triple layer fabric	SH853520	0.15,0.20	0.15,0.15/0.35,0.35	≥1600	500±500
24-shed triple layer fabric	SH854024	0.20,0.20	0.20,0.17/0.40,0.40	≥1600	6500±500

Prod Model:	SH-FF109
Name:	Forming Fabrics
Supply Type:	Make-to-Order
Wire Diameter Warp(mm):	0.17-0.22
Wire Diameter Weft(mm):	0.20-0.45
Density (Root/Cm) Warp:	28-35
Density (Root/Cm) Weft:	15.2-32
Thickness:	0.41-0.87

Xuzhou Sun Hong International Trade Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of industrial fabrics. All our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

We have our own factory which covers an area of 23, 000 square meters and has more than 2000 experienced workers. They get the training once a month in order to improve the quality and standardize production management.

As the ministry of foreign trade now we boast an annual sales figure that exceeds USD 500, 0000.

Our main products includes: Forming fabrics, press felts, dryer fabrics, Dryer cylinder, suction sheets, presses rolls, stainless steel wire meshes and other spare parts used in paper machine.

Currently, our products are exporting to Thailand, Brazil, Egypt, Mexico and other Western countries which get good reactions from clients.

Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction.

We believe in reasonable prices, efficient production time and good after-sales service.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the future.
