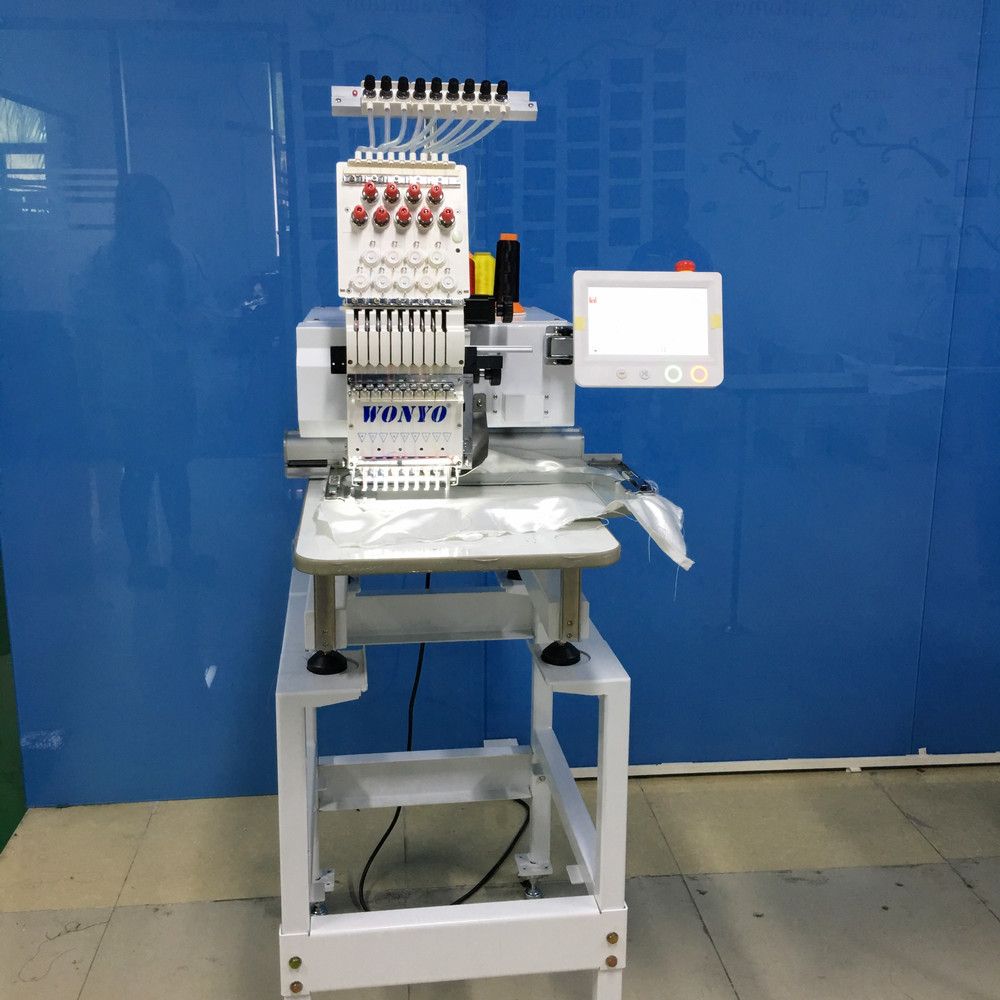

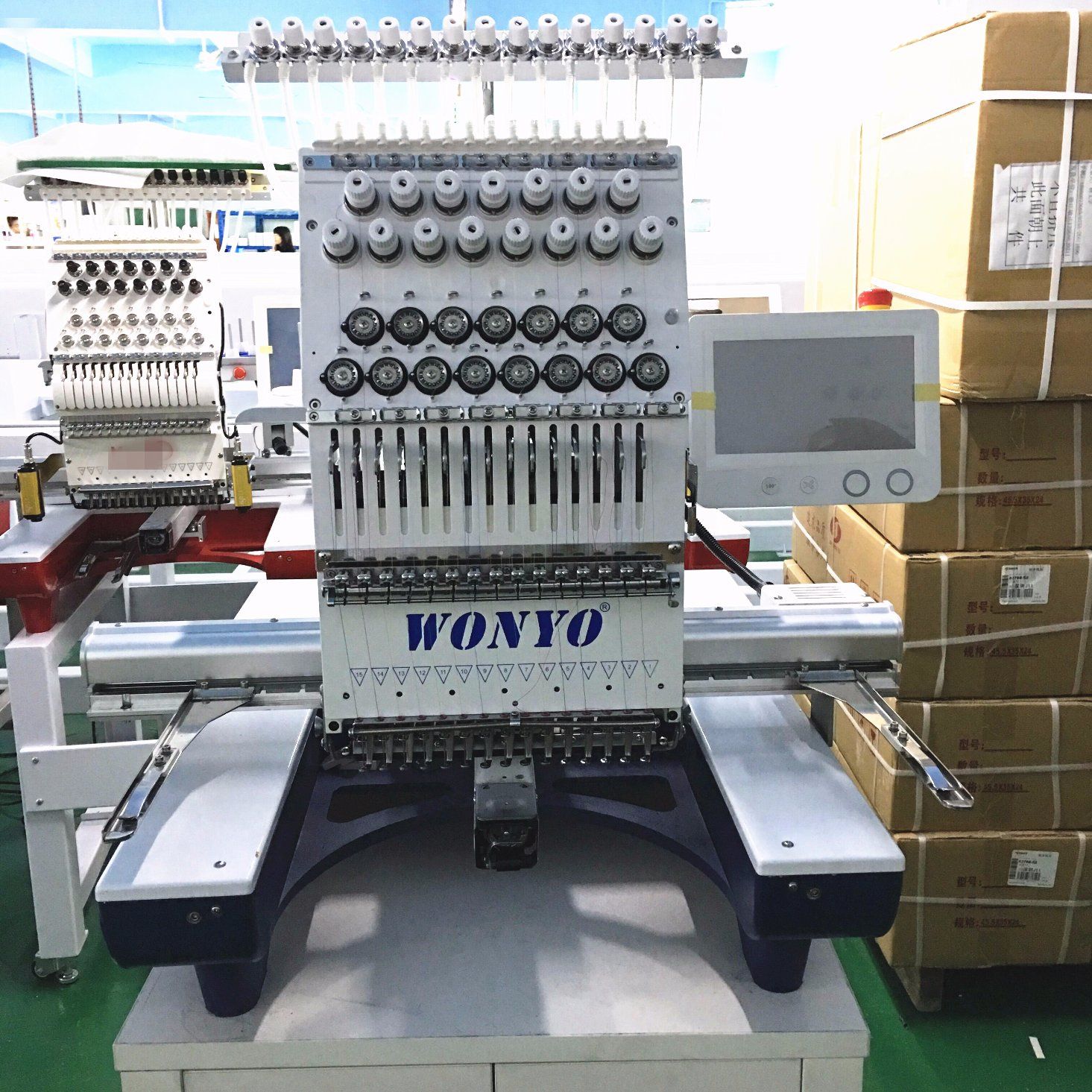

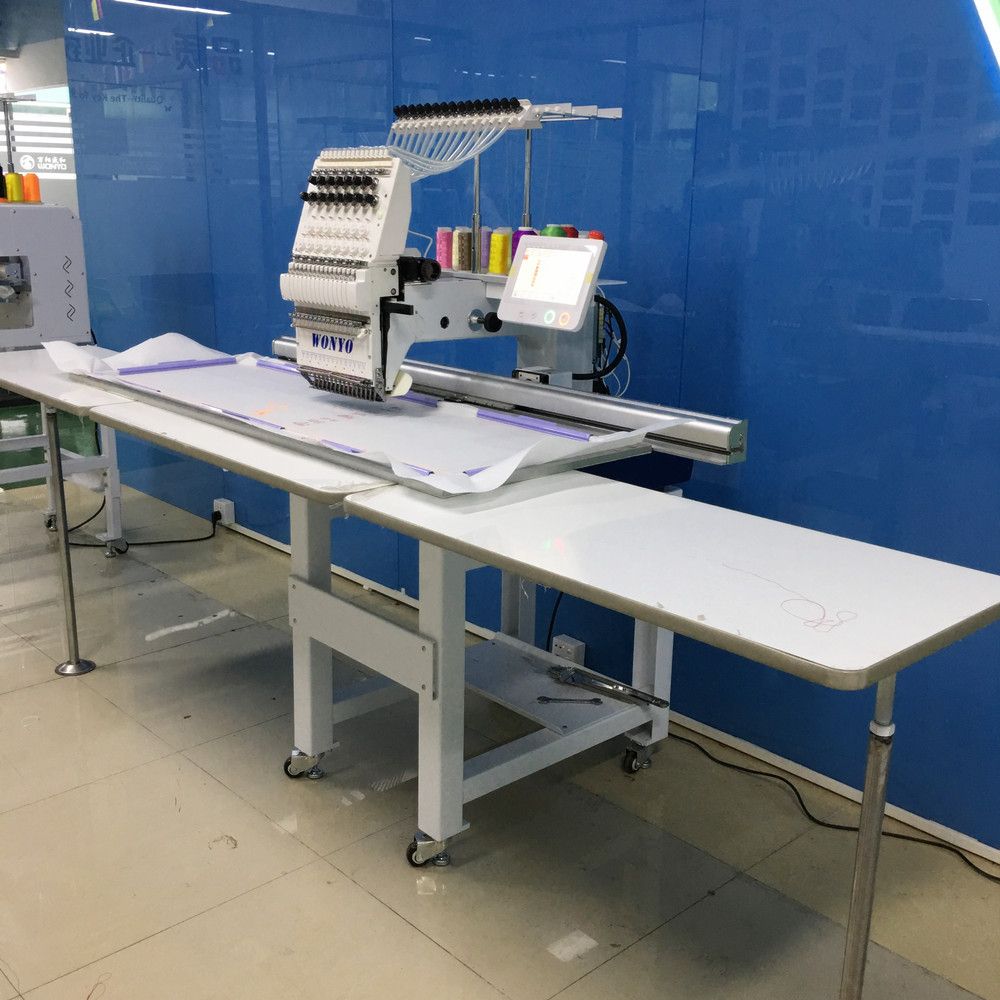

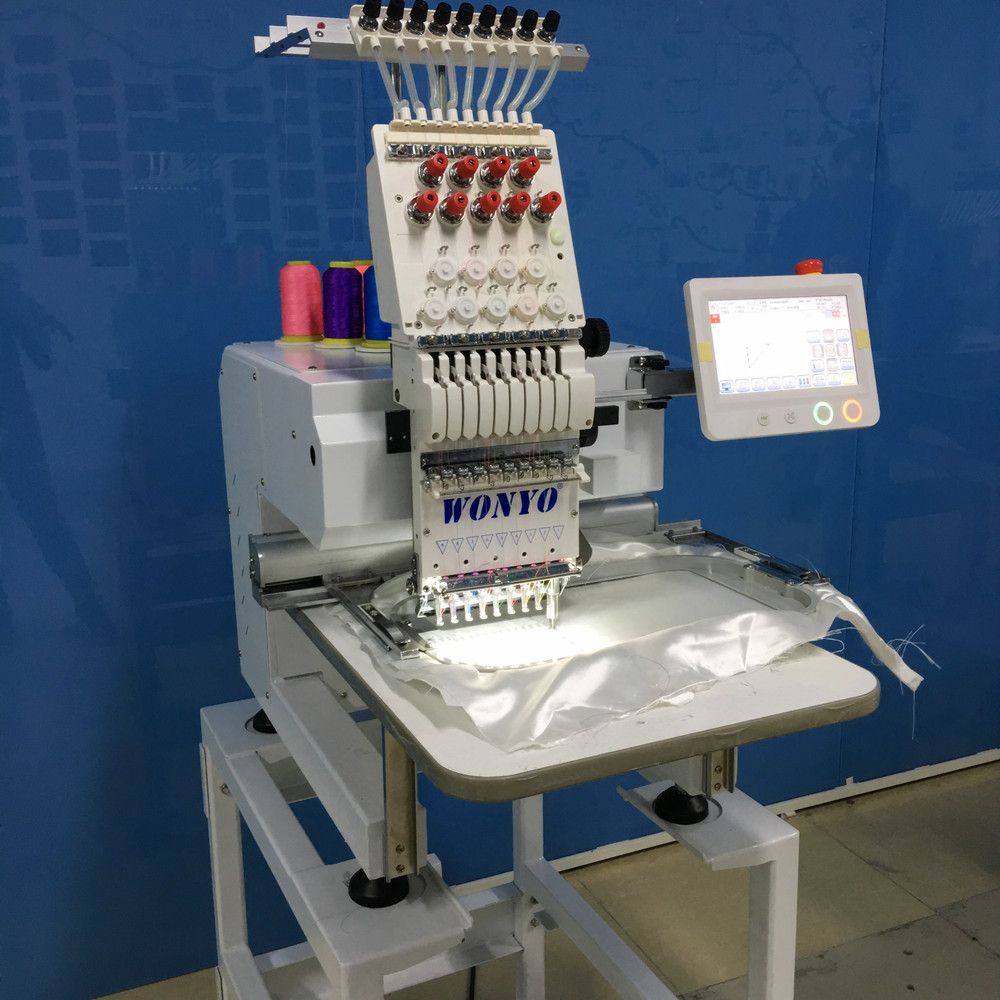

Single Head Computerized Hat Machine Embroidery Designs
| Price: |
US $ 3400-4400/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
wonyo single head embroidery machine |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
24 Months |
| Working Area: |
360*1200mm |
| Working Areas: |
360*510mm |
| Width: |
360*1200 |
| Computer: |
10 Inches Touch Screen |
| Motor: |
Servo Motor |
| Language: |
12 Languages |
| Frames: |
11PCS |
| Cap Frames: |
2PCS |
| Brand: |
Wonyo Embroidery Machine |
| Knitting Product Type: |
Hat |
| Knitting Style: |
Flat |
| Knitting Method: |
Single |
| Computerized: |
Computerized |
| Certification: |
SGS |
| Condition: |
New |
| Type: |
Embroidery Machine |
| Knitting Machine Cut: |
Wy1201/1501CS |
Product Description
Single Head Computerized Hat Machine Embroidery Designs
Contact person: Cindy Li Tel No. +86 18566298604
Single Head Commercial Computerized Embroidery Machine with 8" Touch Screen Computer (WY1201/1501CS) with 12/15 needles, which is suitable for cap embroidery, T-shirt embroidery, finished garments embroidery and flat embroidery.
I. Main features
A. Suitable for flat embroidery, cap embroidery and finished garments embroidery, like T-shirt
B. Automatic thread trimmer
C. Maximum speed 1200 SPM
D. 270 degree Wide cap frame unit
E. Color LCD display showing real time stitching
F. USB input port
G. Automatic color change
H. Thread break detection
I. Pre-sew design trace capable
J. Memory size 2, 000, 000 stitches
K. Emergency stop
L. Electricity: 110V/60Hz or 220V/50Hz available
M. Built-in bobbin winder
N. Keeping current data or work when emergency stop or power off
O. Mending function. (back and skip stitches under controller)
P. Switch of Cap/ flat embroidery mode eliminating hitting the frame.
Q. USB port with fast data transmission and good compatibility
X. Mainboard intergated into control panel protecting from dust or external force.
Y. Lay-out of keys on panel is user-friendly.
Z. Built-in Network
II. Compact control panel
A. Color LCD display showing real time stitching
B. Manual, Semi-auto, Auto Color Change
C. Function keys including Menu, Speed up and slow
D. Multi languages available like English, French, Spanish etc.
E. Frame-moving keys, Manual Trimming
F. DOT ket to return to 100 degree
G. Start, Stop, and emergency Stop
H. Embroidery Status (Page Up/Page Down), USB Input,
I. Parameter Settings, Clear, ESC, Enter, etc.
J. Numeric keys for selection of needles
III. Hoops/frames inclued
2 X Shirt Front Round Hoop 9 cm (3.5")
2 X Shirt Front Round Hoop 12 cm (4.7")
2 X Shirt Front Round Hoop 15 cm (5.9")
2 X Shirt Front Round Hoop 19 cm (7.8")
2 X Jacket Back Square Hoop 30 X 30 cm (12" X 12")
1 X Sash Frame 56 X 38 cm (22" X 15")
Compact control panel | 1 | Color LCD display showing real time stitching |
| 2 | Manual Color Change |
| 3 | Function keys including Menu, Speed up and slow |
| 4 | Multi languages available |
| 5 | DOT Key to return to 100 degrees, Parameter Settings, Clear, ESC, Enter, etc |
| 6 | On-board lettering 11. Numeric keys for selection of needles |
| 7 | Frame-moving keys |
| 8 | Manual Trimming |
| 9 | Start, Stop, and emergency Stop |
| 10 | Embroidery Status down (Page Up and Page Down), USB Input |
Hoops/frames inclued | 1 | 2 x Shirt Front Round Hoop 9 cm (3.5" ) |
| 2 | 2 x Shirt Front Round Hoop 23 cm (9" ) |
| 3 | 2 x Shirt Front Round Hoop 12 cm (4.7" ) |
| 4 | 2 x Jacket Back Square Hoop 30 x 30 cm (12" x 12" ) |
| 5 | 2 x Shirt Front Round Hoop 15 cm (5.9" ) |
| 6 | 1 x Sash Frame 56 x 38 cm (22" x 15" ) |

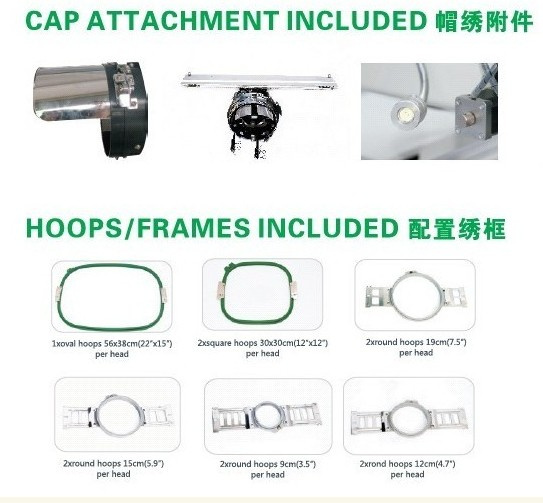

IV. Cap attachment, tool box, USB driver
