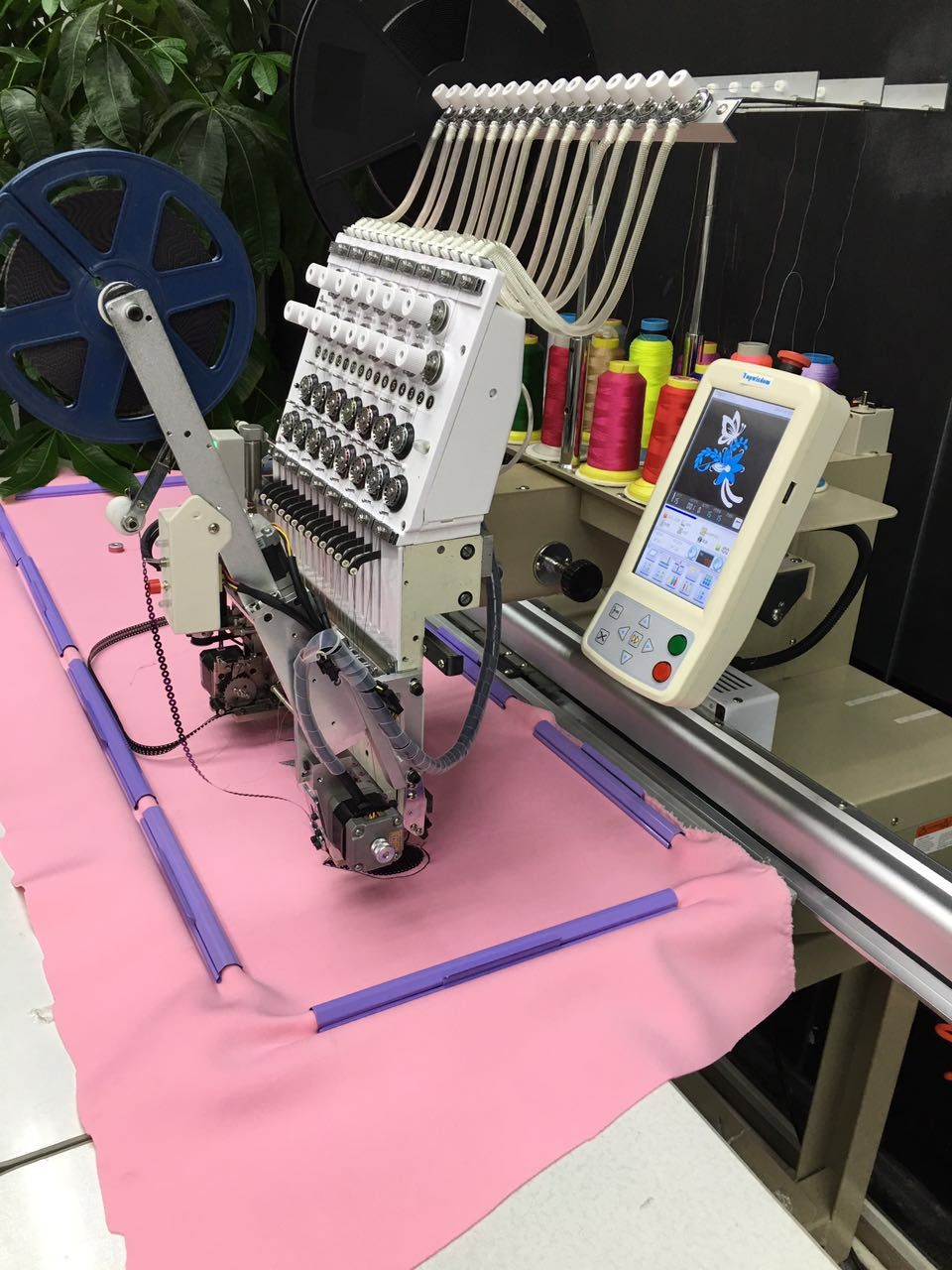

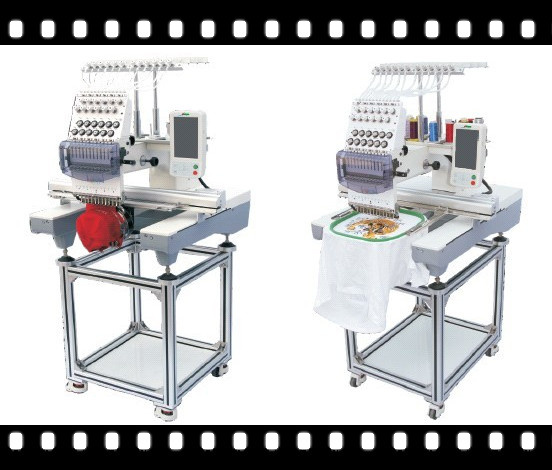

Single Head Dahao System Embroidery Machine with sequin functionSingle Head Commercial Computerized Embroidery Machine with 7" Touch Screen Computer (WY1201/1501CS) with 12/15 needles, which is suitable for cap embroidery, T-shirt embroidery, finished garments embroidery and flat embroidery.

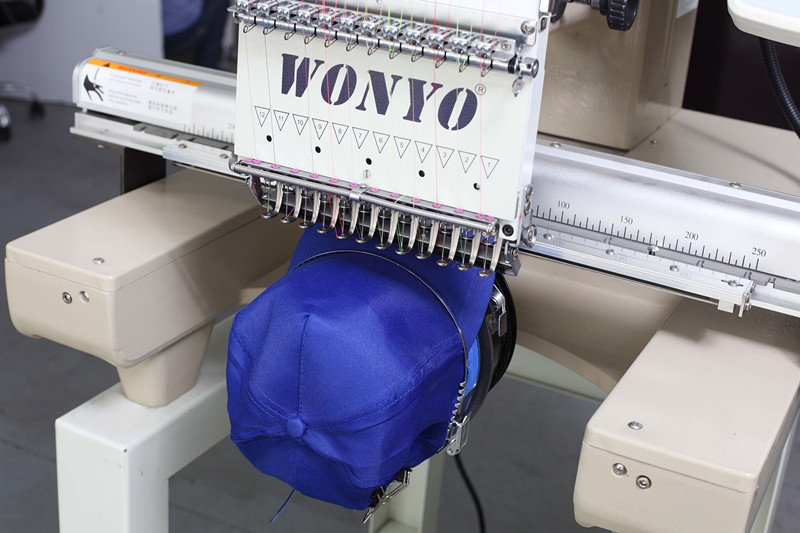

Main Features: 1) Suitable for flat embroidery, cap embroidery and finished garments embroidery
2)Automatic thread trimmer
3)Maximum speed 1200 RPM

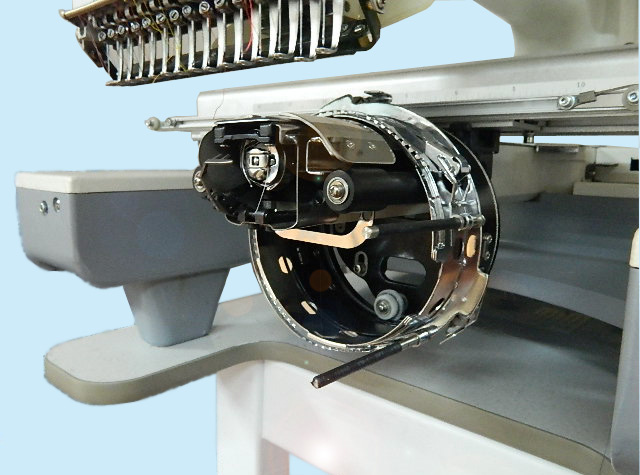

4)270 degree Wide cap frame unit
5)Color LCD display showing real time stitching
6)USB input port
7)Automatic color change
8)Thread break detection
9)Pre-sew design trace capable
10)Memory size 20, 000, 000 stitches
11)Emergency stop
12)Electricity: 110V/60Hz or 220V/50Hz available
13)Built-in bobbin winder
14)Keeping current data or work when emergency stop or power off
15)Mending function. (back and skip stitches under controller)
16)Switch of Cap/ flat embroidery mode eliminating hitting the frame.
17)USB port with fast data transmission and good compatibility
18)Mainboard intergated into control panel protecting from dust or external force.
19)Lay-out of keys on panel is user-friendly.
20)Built-in Network
Compact control panal
A. Color LCD display showing real time stitching
B. Manual, Semi-auto, Auto Color Change
C. Function keys including Menu, Speed up and slow
D. Multi languages available
E. Frame-moving keys, Manual Trimming
F. DOT ket to return to 100 degree
G. Start, Stop, and emergency Stop
H. Embroidery Status (Page Up/Page Down), USB Input,
I. Parameter Settings, Clear, ESC, Enter, etc.
J. Numeric keys for selection of needles

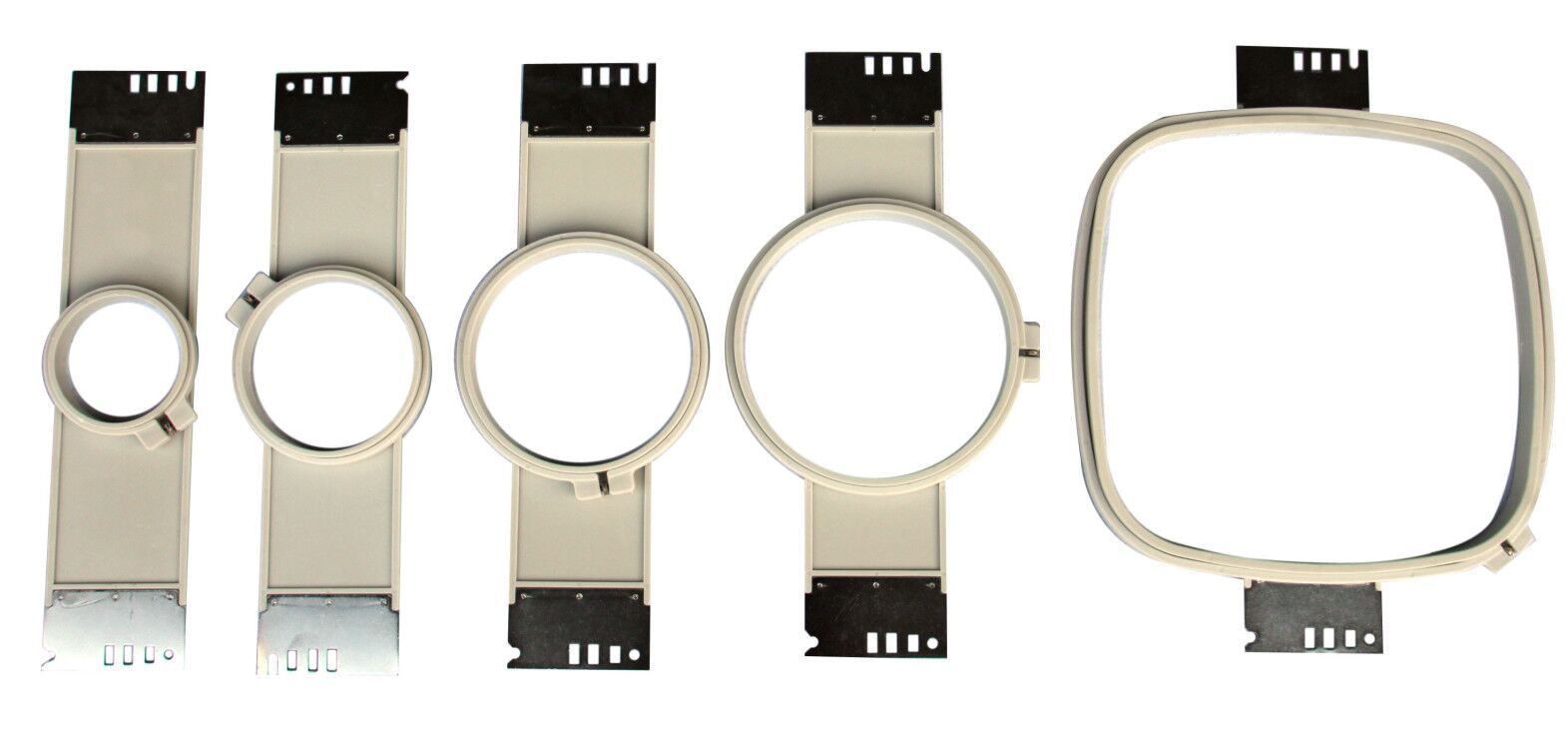

Hoops/frames inclued
2 x Shirt Front Round Hoop 9 cm (3.5")
2 x Shirt Front Round Hoop 12 cm (4.7")
2 x Shirt Front Round Hoop 15 cm (5.9")
2 x Shirt Front Round Hoop 19 cm (7.8")
2 x Jacket Back Square Hoop 30 x 30 cm (12" x 12")
1 x Sash Frame 56 x 38 cm (22" x 15")
Brand:Wonyo
Operation: Computerized
Head Number: Single Head
Needle Number: 12/15
Embroidery Area: 360*510mm
Worktable Size: 360*510mm
Head Interval: 0mm
Overall Dimensions: 840*830*930mm
Certification: CE, SGS
After-sales Service: Engineers available to service machinery overseas
application: flat, cap, T-shirt, finished garments,logo,3D
Package: Wooden Case
Motor: Servo and stepper motor
Warranty: 24 months
language:12 languages
Speed: 1200RPM
Computer: 7" LCD display and touch screen showing real time stitching
| Needles | Head | Emb. Area (mm) | Length(mm) | Width(mm) | Height(mm) | Weight(kg) |
| 12 or 15 | 1 | 360*510 | 800 | 800 | 1600 | 180 |
| 12 or 15 | 1 | 360*1200 | 1580 | 950 | 1050 | 260 |
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
