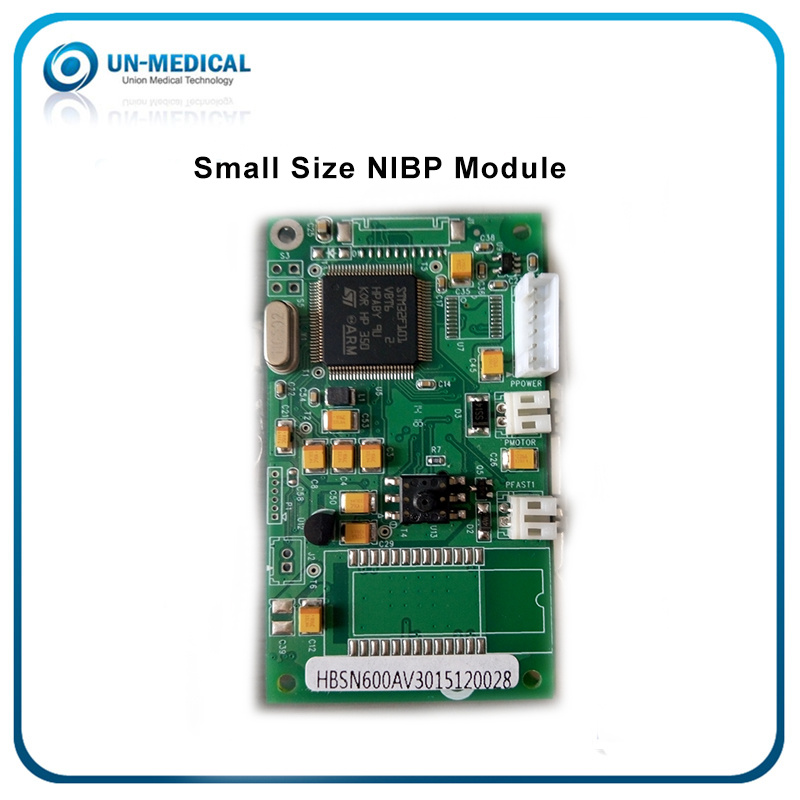

Small NIBP Module for Portable Blood Pressure Device
| Price: |
US $ 40-80/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
NIBP board for blood pressure monitor | Product name | NIBP Module |
| Model | UN-600F |
Characteristics:
1. Measurement accuracy reaches medical grade
2. Test speed is 30s
3. Weak signal test (CUFFLINK simulator test) is 20%
4. Blood pressure measuring range 40 ~ 255mmHg
5. Pulse rate 30BPM ~ 240BPM
6. Resistant of occasional interference movement, support serial, support hibernation feature
1. Module Functions
1.1. Patient Mode
Three Patient Mode,include Adult/PEd. Default Patient Mode is ADULT
1.2. Manual measurement mode
User could manually start one measurement according to their requirement
1.3. Automatic measurement mode
The module counts time automatically and starts next measurement automatically. However the first
measurement must be started manually.
1.4. Continuous measurement mode
The module starts measurement automatically. The module starts next measurement five seconds
after the end of previous one. The measurements last for five minutes and then the module will return
to the status before Continuous measurement.
1.5. Calibration mode
Continuously provide cuff pressure for calibration. Refer to Chapter 5 for detailed information
1.6. Leakage check
Check if the system has air leakage. The module returns measurement ending data packet after finishing
leakage check. By giving Demand Status command, the host could judge if the module has air leakage
according to ef in data packet of system status.
2.Performance specification
2.1 Measuring range
Adult:
SYS: 40 ~ 255mmHg
MEAN: 20 ~ 215mmHg
DIA: 10 ~ 195mmHg
PULSE RATE: 40 ~ 240bpm
PED:
SYS: 40 ~ 200mmHg
MEAN: 20 ~ 165mmHg
DIA: 10 ~ 150mmHg
PULSE RATE: 40 ~ 240bpm
2.2 Measurement precision
Blood pressure precision :
Average deviation: <=±5mmHg, standard deviation: <=8mmHg
Pulse rate precision
Max. deviation: <=2% (>=100 BPM) or 2 beats/min (<100 BPM)
2.3 Software protect pressure
Adult :300mmHg
Ped: 240mmHg
2.4 Pressure precision and resolution
Pressure precision
+/-3mmHg
Resolution
1mmHg
Shipping:
DHL, Fedex, TNT, UPS, EMS......
Which ever is convenient for you.
For total weight over 100kgs, shippment by air or by sea is suggested.
Payment:
TT, Paypal & Western union are all fine.
Pls feel free to contact us if you are interested!!! Will always try to reply you within 24 hours after receiving your enquiry.
| Prod Model: |
UN600F |
| Pressure Precision: |
+/-3mmhg |
| Resolution: |
1mmhg |
| Width: |
41mm |
| Length: |
74mm |
| Height: |
12mm |
| Air Pump: |
60mm(Length)*25mm(Diameter ) |
| Weight: |
120g |
| Supply Voltage: |
4.5V ~ 6 V DC |
| Classification: |
Physiological Functions of Diagnosis and Monitoring Equipment |
| Type: |
Patient/Fetal/Maternal Monitor |
| Certification: |
ISO13485 |
| Group: |
Adult, PED |
