| Prod Model: |
BW160-9 |
| Weight: |
50000kg |
| Capacity: |
80-160t/H--220-680t/H |
| Center Distance Of The Head AMD Tail Whe: |
9000mm |
| Tranfer Speed: |
0.01-0.07m/S |
| Width: |
1600mm |
| Movement Mode: |
Linear |
| Usage: |
Ore-dressing |
| Appearance: |
Open-Type |
| Type: |
Linear Vibraring Feeder |
| Capacity(',t/h): |
180t/H |
| Motor Power(',kw): |
22kw |
| Installation Slope: |
Depends on |
| Overall Dimension: |
11250*4153*2890 |

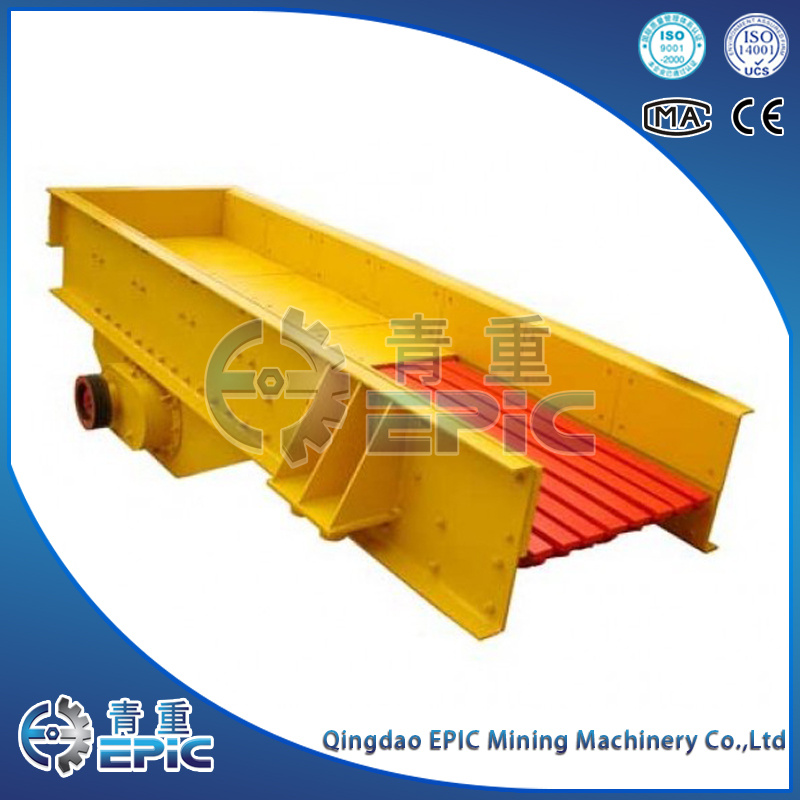

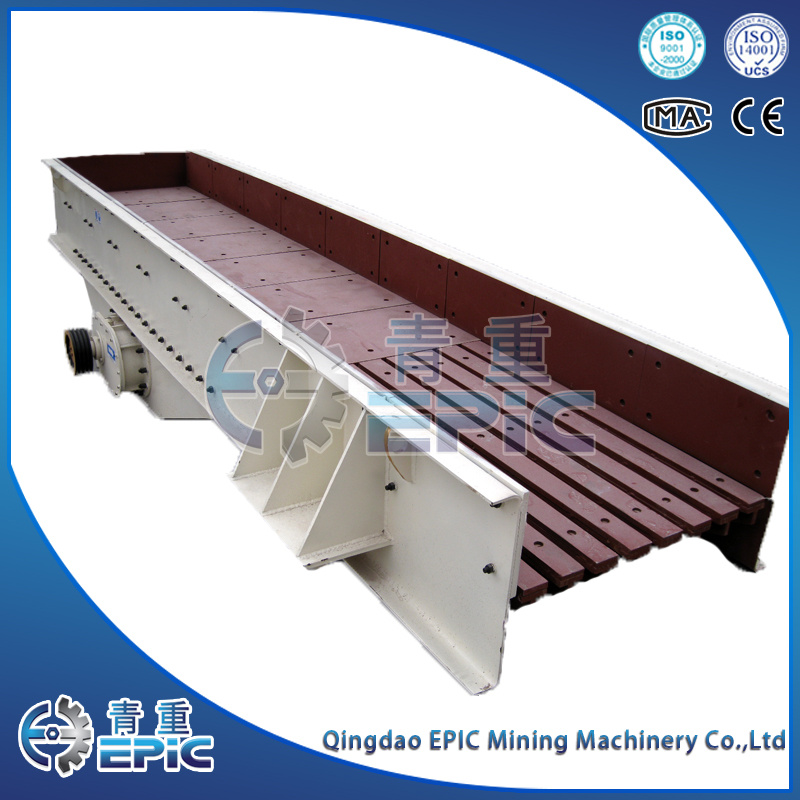

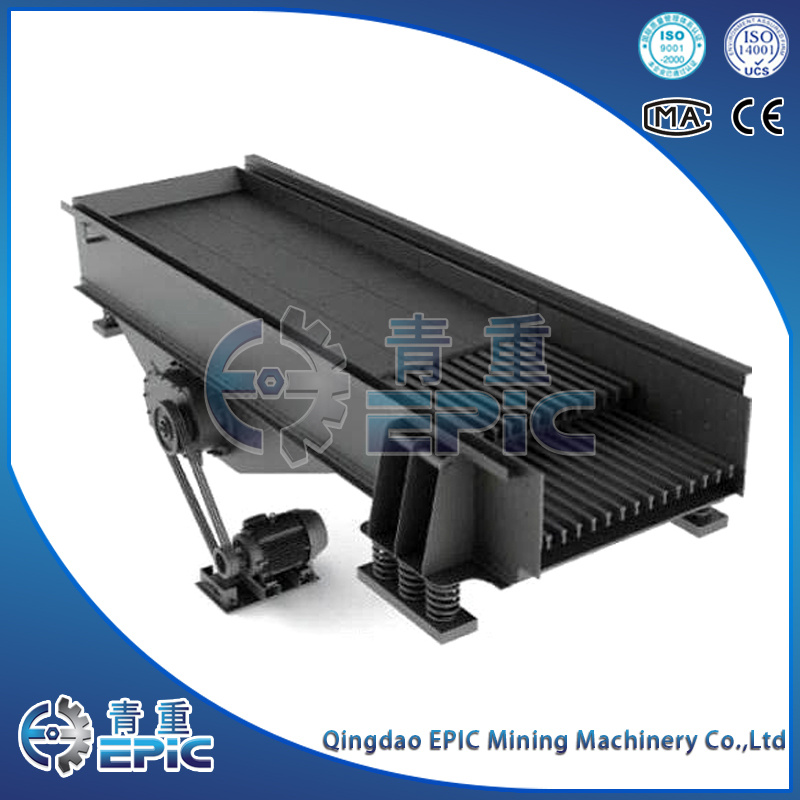

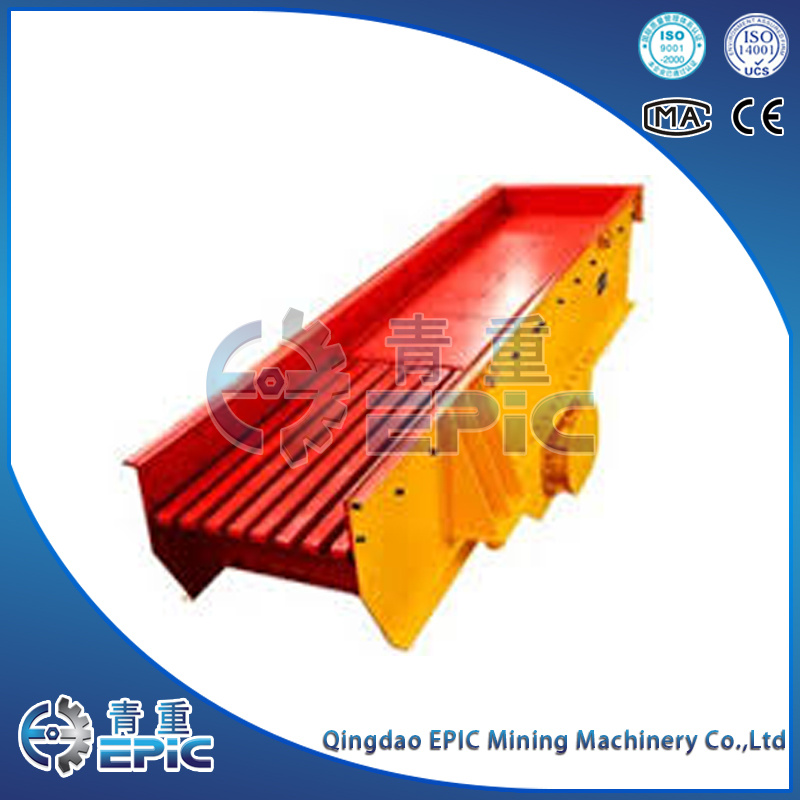

Product Description
Vibrating Feeder Features:
1. Stable vibrating frame
2. Feed the material containous, orderly
3. Reliable operation and running
Vibrating Feeder Working Principle
Vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gearsare jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to producea linear huge power which forces the feeder to vibrate. Through the vibration, the materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, and avoiding the furthercrushing, so screening purpose can be reached.
Application of Vibrating Feeder
Mining Equipment Vibrating Feeder is widely used in crushing and screening production lines in the following industries: Mineral, quarry, metallurgy, building materials, chemical industry, ore dressing, coal mine and etc.
| Model | mm
Input size | t/h
Capacity | r/min
Rotating of the eccentric shaft | kw
Power | mm
Cell dimensions | mm Dementions outline | kg
Weight |
| ZSW380×95 | 500 | 96-160 | 500-714 | 11 | 3800×960 | 3882×2177×2066 | 4100 |
| ZSW420×110 | 580 | 120-240 | 500-800 | 15 | 4200×1100 | 4282×2400×2150 | 4700 |
| ZSW490×96 | 500 | 120-240 | 500-800 | 15 | 4900×960 | 4957×2277×2150 | 5400 |
| ZSW490×110 | 630 | 120-280 | 500-800 | 15 | 4900×1100 | 4950×2425×2031 | 5400 |
| ZSW590×130 | 630 | 400 | 750 | 22 | 5900×1300 | 6000×2700×2150 | 6300 |
| ZSW600×130 | 750 | 400-560 | 500-800 | 22 | 6000×1300 | 6082×2580×2083 | 7800 |
FAQ
Q:Hi, are you mining machinery manufacturer?
A:Yes, we can also provide amples test, mine design, equipment manufacture, installation, after-sale service, etc.
Q:which country have your products been exported?
A:Many customers around the world, such as America, SouthEast Asian Countrries, Chile and so on.
Q:Can you do mineral processing test?
A:Yes, we supply this service as customer's requirement.
Q:Warranty?
A: We always do many kinds of testings before shipment, and also we still supply one year warranty.
