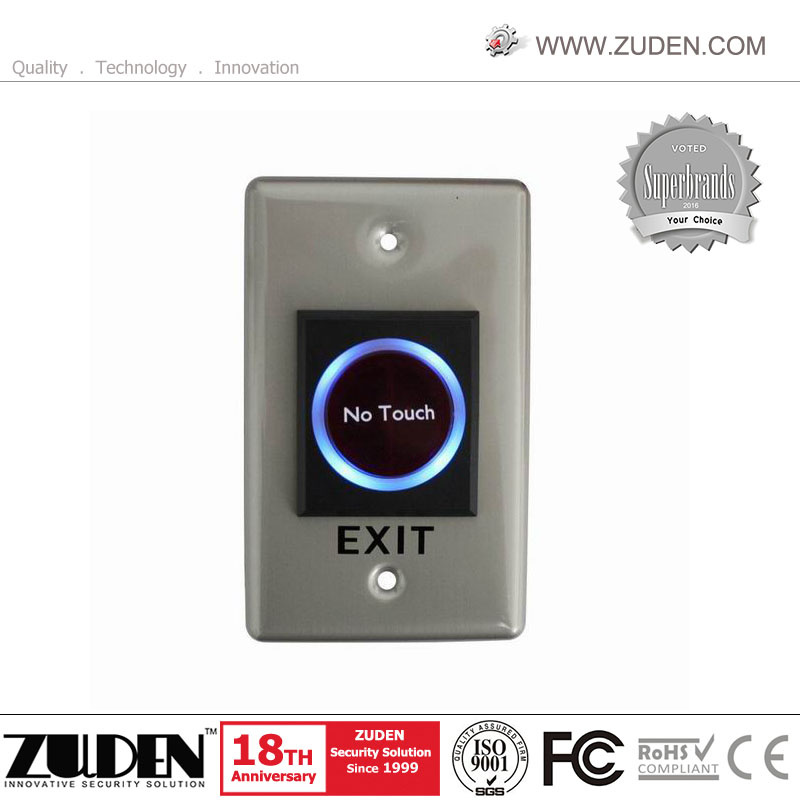

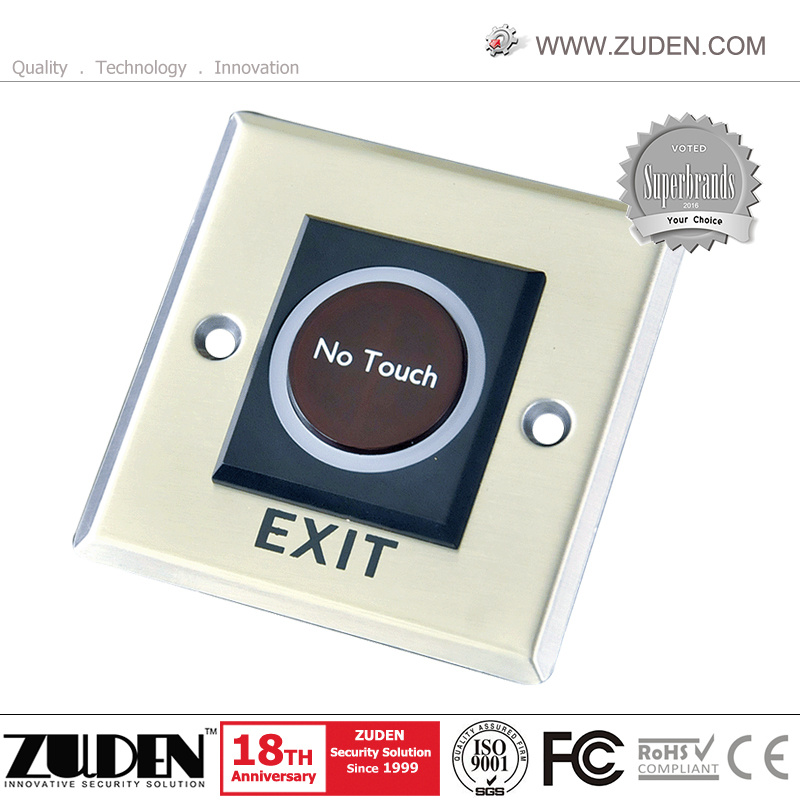

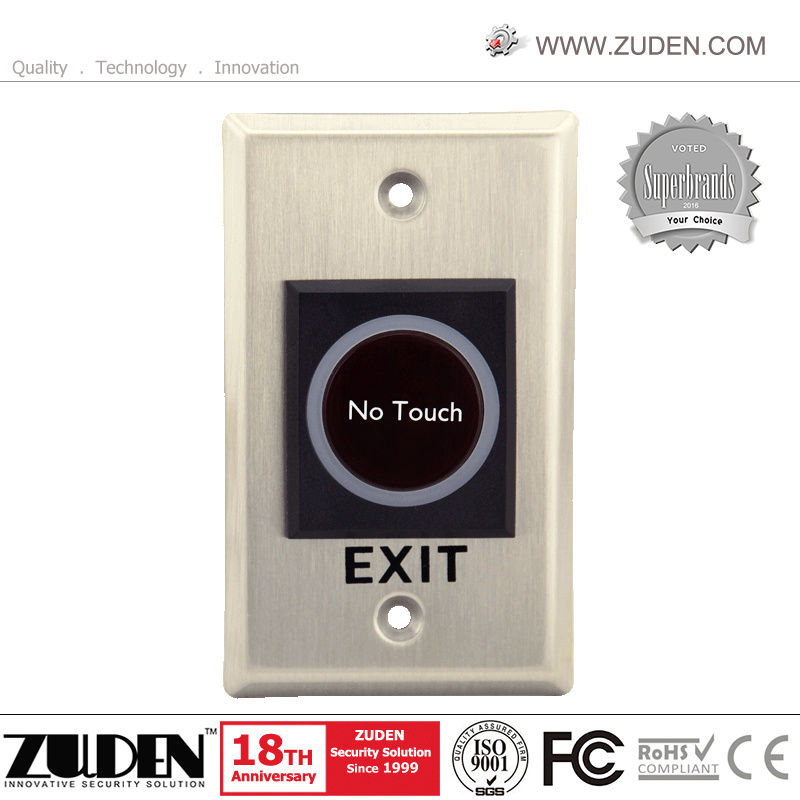

Stainless Infrared Push Exit Switch Button/ No Touch

Name: Stainless Infrared Push Exit Switch Button/ No Touch
Brand: FullPackage
SKU: 784174315
Availability: InStock
Rating: 4.4 (62 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	50/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Infrared Sensor No Touch Door Release Button: Infrared Sensor, No Touch exit Button, Stainless steel Panel with Elegant Style. Tested to 500000 Cycles.NO\NC\COM output contact, Suitable for all kinds of Locks.The Best Choice for Access Control.

- Infrared Sensor No touch, Optical / Infrared Technology
- Durable stainless steel plate
- Output Contact: NO/NC/COM
- Mechanical Life: 500000 tested
- Suitable for Gate/Door/Exit/Automation control

Specifications

Input Volt.: DC 12V; Contact Rating: 12-28V,3A
Output Contact: NO/NC/COM
No touch / Touch free Exit Sensor (Diffused Detection)
Material: 304 Stainless steel Plate
Detection range: 0.1 ~ 10 cm
Operating temp: 10~+55ºC(14-131F)
Operating Humidity: 0-95% (non- condensing)
Led Indicator
White LED indicator: Power OFF
Blue LED indicator: Power ON(standby)
Red LED indicator: Power ON(sensation)
Product size:
ZDBT-802: 86Lx86Wx29H(mm), Weight: 0.18kg
ZDBT-802B: 115Lx70Wx39H(mm), Weight: 0.18g
Packing size: 13*8.5*4.8CM, Weight: 0.18kg

Specifications

Prod Model:	ZDBT-802B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Volt.:	DC 12V
Output Contact:	No/Nc/COM
Cover:	304 Stainless Steel Plate
Detection Range:	0.1 ~ 10 Cm
Operating Temp:	10~+55oc(14-131f)
