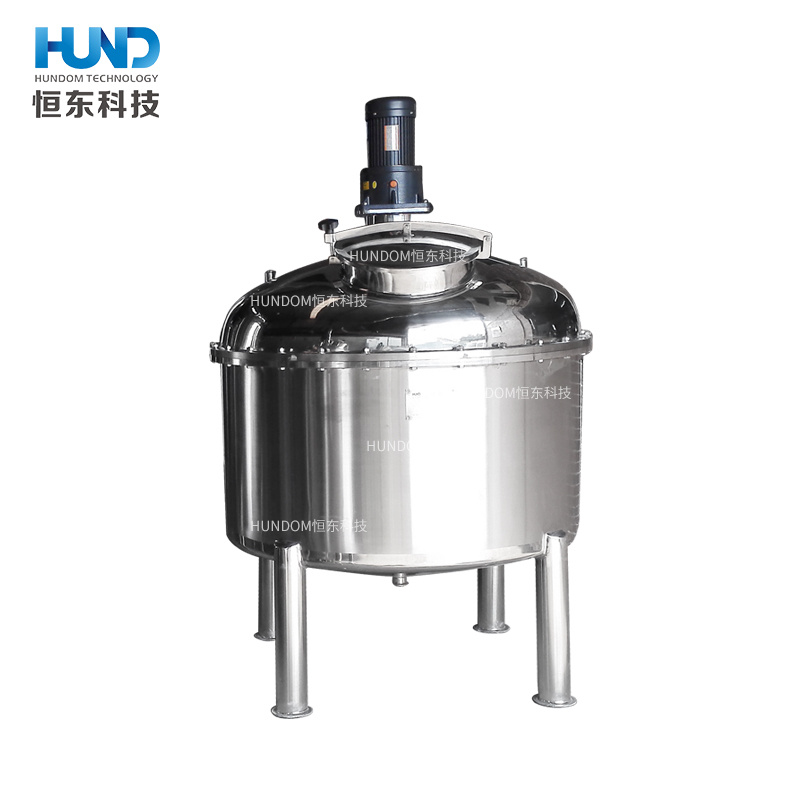

Tag:Stainless Steel Agitator Tank for Food and Beverage
Structure
Mixing tank is widely applied in the beverage, food, dairy, pharmaceutical, chemical and process industries used as blender tank, buffer tank and storage tank, which cleanable to sanitary standards.
1. Material:SUS304 and SUS 316
2. Capacity:50L-10000L
3. Widlely used in food, beverage,dairy,pharmacy Industries
4. Single layer/Double layers/Three layers
5. Mirror Polished inside and outside
6.Three feet.
Feature
1. Suit for the process about formulating, dissolving, heating, cooling, warm-keeping, cultivating, disinfecting and storage. It is available online CIP cleaning ( only suitable for enclosed structure)
2. Designed in accordance with sanitary requirements, so the structural design is very user-friendly, easy to operate, healthy to store.
3. The inner surface is mirror-polished (roughness Ra≤0.4µm); the welding of all kinds of nozzles, endoscopic, manholes and the pot adopt stretch flanging process arc transition, easy to clean with no dead ends, ensure the reliability and stability in the production process.
4.T he main blending adopts stepless speed variation device, which can reduce the formation of bubbles when the temperature is low and the viscosity is high.
5.The gear pump circulating discharging device can accelerate the forming of products and realize rapid discharging.
Technical Parameters
| Model | HD-100 | HD-200 | HD-300 | HD-500 | HD-1000 | HD-2000 | HD-3000 |
| Volume(L) | 100 | 200 | 300 | 500 | 1000 | 2000 | 3000 |
| Inner Dia(mm) | 550 | 650 | 750 | 900 | 1000 | 1300 | 1500 |
| Interior height(mm) | 500 | 650 | 750 | 850 | 1000 | 1200 | 1220 |
| Thickness(mm) | 2 | 2 | 2 | 2 | 3 | 3 | 3 |

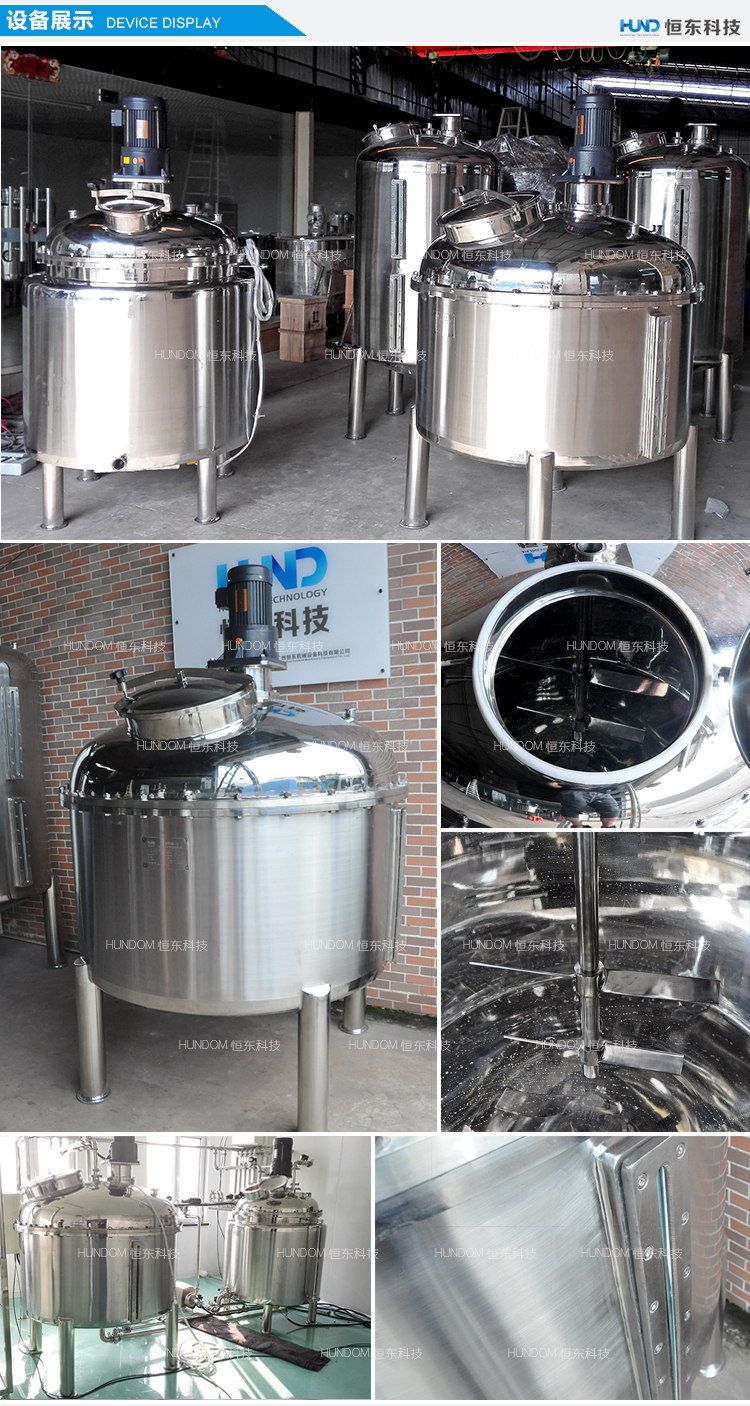

Product Show
About Hundom
Guangzhou Hundom Machinery Equipment Co., Ltd.has been manufacturing colloid mill, jacketed kettle, rotor pump, mixing tank and other machinery equipment for 14 years , putting quality as our first consideration. We own a team with rich experience in the field, if you have any question, contact us for the professional answer.
Guangzhou Hundom Machinery Technology Co.,Ltd.
Add:No. 115, No. 7, Haina Industrial Park, Shibi Street, Panyu District, Guangzhou City, Guangdong Province, China
Sales:Lovely Shum
Tel:+86-020-89081205
Mobile :+86-138-2213-4643
Welcome to visit our factory !
| Prod Model: | HD |
|---|---|
| Material: | SS304/SS316(L) |
| Voltage: | 220V-480V, Customized |
| Power: | 0.75-75kw |
| Heating Power: | 12kw |
| Speed: | 35r/Min |
| Spout Size: | 45mm |

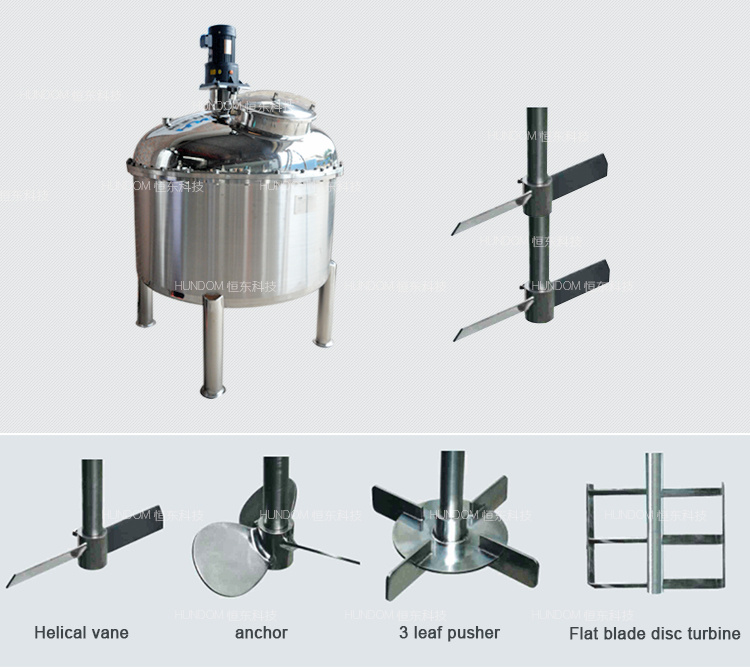

| Agitator Type: | Anchor, Frame, Oar, Turbo |
| Dimension(L*W*H): | Vary, Customized |
| After-Sales Service Provided: | No Overseas Service Provided |
| Usage: | Food, Chemical, Beverage, Pharmacy, Dairy, etc |
| Mixer Type: | Agitator |
| Working: | High Speed Mixer |
| Application: | Liquid |
| Additional Capabilities: | Milling |
