Window Screen, Mosquito Netting, Insect Screen
1.Materials: low carbon steel wire, stainless steel wire, Al-Mg Alloy wire, galvanized wire, PVC wire, aluminum wire.
2.Uses: used for industrial purposes, window doors and poultry's guards, sieves, filters and other purposes.
Aluminum alloy window screen
Material: Aluminum magnesium alloy single wire
Mesh Size: 14*14mesh,16*16mesh,16*14mesh, 17*15mesh, 18*14mesh,18*16mesh, 18*18mesh , 19*17mesh ,20*20mesh
Wire Diameter: 0.15 mm - 0.3 mm
Width/Roll: 0.5m - 2.5m
Length/roll:15m-300m, as you need
characteristics:
antirat, high temperature resistant, acid and alkali resistance, corrosion resistance, good toughness,
high tensile strength, rustless, various colors fadeless.
application:
widely used in home decoration, install in doors and windows and corridors.

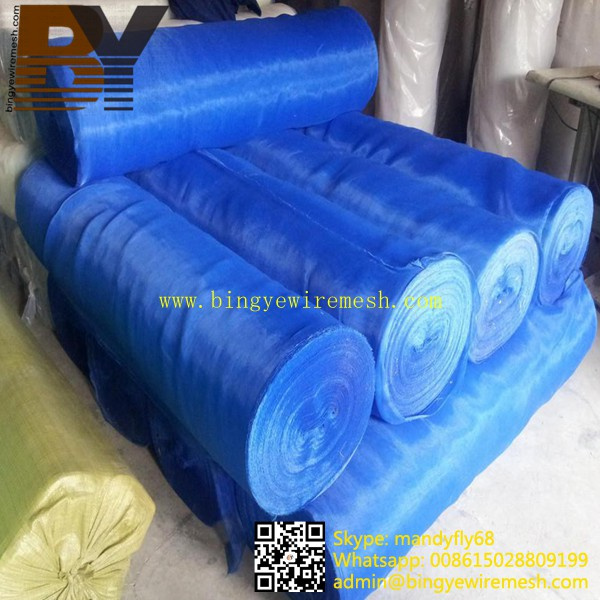

Fiberlgass Insect Screen
Fiberglass Screen is made of fiberglass under the process of plastic-coating, plain weaving and high temperature-fixing. Fiberglass screen is well ventilate, well transparent, anticorrosive, resistance to burn, easy washing, strong tensile force, keeping shape, long service life and feels fine when touch it...It is widly used inventilation and insect proof for the commerce office building, residence, construction, ranch orchard and so on.
Products Information
1. Size: 18*16mesh, 18*14mesh, 16*16mesh, 16*14mesh and so on. 1
2. Width: 61cm, 71cm, 80cm, 100cm, 110cm, 122cm, 142cm, 140cm, 160cm, 152cm, 162cm, 183-280cm111
3. We can make the size, color and mesh of window screen according to the customers requirement. 11
4. Main color: Grey, Black, Green, Yellow.
| Width (cm) | Mesh | Fracture Strength (N/25mm) | Weaving | Length (m) |
| | Warp | Weft | Warp | Weft | | |
| | 18± 0.5 | 16± 0.5 | ≥ 260 | ≥ 220 | Plain Weaving | 30.48± 0.2 |
Standard Width
± 1.0 | 18± 0.5 | 14± 0.5 | ≥ 260 | ≥ 220 | Plain Weaving | 30.48± 0.2 |
| | 18± 0.5 | 16± 0.5 | ≥ 260 | ≥ 220 | Plain Weaving | 30.48± 0.2 |
| | 18± 0.5 | 14± 0.5 | ≥ 260 | ≥ 220 | Plain Weaving | 30.48± 0.2 |
| Specification List of Window Screen Netting |
| Variety | Specification | Technical Notes |
| Mesh/Inch | Wire Gauge | Roll Size |
| Gal.Iron Enamelled Window Screening | 10 x 10 | BWG31
BWG32
BWG33
BWG34 | | 3"x100" | | 4"x100" | | 1x25M | | 1.2x30M | | 1.5x25M |
| Process: Electric galvanized after weaving
Color: White or Light-blue |
| 14 x 14 |
| 16 x 16 |
| 18 x 18 |
| 18 x 14 |
| 22 x 22 |
| 24 x 24 |
| Spray Window Screening | 10 x 10 | BWG31
BWG32
BWG33
BWG34 | 3"x100"
4"x100"
1x25M
1.2x25M
1.5x25M | White, Black, Blue, Green, Red |
| 14 x 14 |
| 16 x 16 |
| 18 x 18 |
| 18 x 14 |
| 22 x 22 |
| 24 x 24 |
| Aluminum Wire Window Screening | 10 x 10 | BWG31
BWG32
BWG33
BWG34 | 3"x100"
4"x100"
1x25M
1.2x25M
1.5x25M | Material: Al-mg.alloy or Enamelled Aluminium Window Screening |
| 14 x 14 |
| 16 x 16 |
| 18 x 18 |
| 18 x 14 |
| 22 x 22 |
| 24 x 24 |
| Fiberglass Window Screening | 10 x 10 | BWG31
BWG32
BWG33
BWG34 | 3"x100"
4"x100"
1x25M
1.2x25M
1.5x25M | Green Or Dark Green |
| 14 x 14 |
| 16 x 16 |
| 18 x 18 |
| 18 x 14 |
| 22 x 22 |
| 24 x 24 |
| Plastic Wire Window Screening | 12x 12 | BWG31
BWG32 | 3"x100"
4"x100"
1x25M
1.2x25M | Twisted weaving:12 14 16mesh;
Plain weaving:18 22 24mesh;
Colors available:white,blue,green,etc. |
| 14 x 14 |
| 16 x 16 |
| 18 x 18 |
| 22 x 22 |
| 24 x 24 |
| Stainless Steel Wire Screening | 14 x 14 SWG38
16 x 16 SWG37
18 x 18 SWG36
18 x 14 SWG35
20 x 20 SWG34 | 3"x100"
4"x100"
1x25M
1.2x25M | Materials: Stainless steel 304 316 316L |
| PVC Coated Wire Screening | 12x 12 | BWG31
BWG32 | 3"x100"
4"x100"
1x25M
1.2x25M | Suitable For Petroleum, Pipeline, Package. All Kinds of color |
| 14 x 14 |
16 x 16
18 x 18 |
Stainless Steel Security Screen
304 stainless steel security screen also named Bulletproof Screen, it is made by high tension 304 stainles steel wire. Used in producing security screen that guards your hours against theft and bullet. This mesh was submitted to Australian Engineering Laboratories for testing. It has superior impact resistance performance.
There is little difference in corrosion resistance between 304 and 316 grade stainless steel. 316 marine grade stainless steel have higher resistance to corrosion but 304 have higher strength than 316 stainless steel.
304 grade stainless steel mesh made from 0.8 mm thick wire, AISI304 stainless steel wire, tolerance(+/-0.01mm), tensile strength is more than 780Mpa (780N), 11 mesh count(11 holes per inch). The holes are square and the wires are very strong (not sliding), flat surface after weaved into mesh.
| Mesh | Wire Diameter |
| 10, 11, 12, 14 | 0.5mm-0.9mm |
BingYe Wire Mesh Products Co., Ltd is located in Yantuan Industrial Zone Anping County, Hebei, China. Our factory was founded in 2005 year, is famous enterprise specialized in producing wire mesh.
BingYe offers the following products with complete specifications and good quality:
Stainless Steel Wire Mesh,
Perforated Metal Sheet,
Expanded Metal Mesh,
Decorative Mesh,
Metal Curtain,
Welded Wire Mesh,
Wire Mesh Fence
Gabion Box,
Chain Link Fence,
Hexagonal Wire Netting,
Window Screen,
Barbecue Grill Netting,
Razor Barbed Wire,
Square Wire Mesh,
Fencing Accessories and so on.
Our products are widely used in petroleum, chemical, construction, textile, medicine, aviation, aerospace and other industries.
We can offer quality products at good price and timely delivery. Welcome to contact us.
Our company always adhere to quality first, reputation first, customer as the business philosophy, according to customer
Demand for production. Product material specifications have reached international standard.
Our wire mesh have been export to Australia, Europe, America, Asia and many other countries and regions.
In order to expanded and develop our enterprise, we will offer you first quality goods and the best service for a prosperous future.
