| Prod Model: |
anjia-713 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
SUS304 |
| Hole Shape: |
Round |
| Application: |
Screen |
| Type: |
Stainless Steel Plain Wire Mesh |
| Material Type: |
Stainless Steel Wire |
| Weave Technique: |
Plain Weave |
| Wire Mesh Width: |
1m |
| Technique: |
Woven |
| Nickels: |
8% |
| Certification: |
SGS |
Product Description

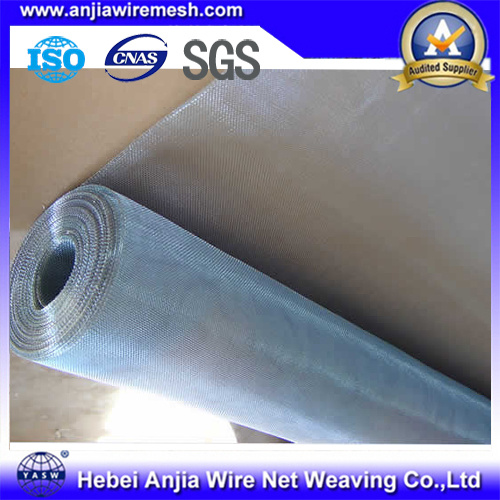

Stainless steel wire mesh window screen mesh
Material: SUS 304/316/202/ Aluminium
Weave pattern: plain weave
Advantages:
1.Use for organizations, higher safety series, it can bulletproof .
2.Use for office buildings, villas, residential, it can guard against theft.
3.Use for wild, suburbs ,it can anti-mosquitoes
4.Use for wet or dry city, it can corrosion resistance and exposure
Weaving Patterns:
Plain Weave
Twill Weave
Dutch Plain Weave
Dutch Twill Weave
Some Special Patterns
Weaving patterns applied for wire mesh or wire cloth can be plain weave, twill weave, Dutch plain weave or Dutch twill weave.
Plain Weave Wire Mesh and Twill Weave Wire Mesh form a square opening with equal mesh count horizontally or vertically. Hence woven wire mesh plain weave or twill weave is also called square opening wire mesh, or single layer wire mesh.
Dutch Plain Woven Wire Cloth has a coarser mesh and wire in the warp direction and a finer mesh and wire in the weft direction. Dutch Plain Woven Wire Cloth makes an ideal filter cloth with a very compact, firm mesh with great strength.
Dutch Twill Woven Wire Cloth offers higher strength than regular Dutch woven wire cloth. It packs even more wires in a given area than Dutch plain woven wire cloth. Generally, Dutch Twill Woven Wire Cloth offers finer mesh counts and lower flow than other Dutch Woven Wire Cloth.
| Mesh/Inch | Wire Diameter | Aperture | Open Area | Weight(LB) /100 Square Foot | | Inch | MM | Inch | MM | | 1x1 | .080 | 2.03 | .920 | 23.37 | 84.6 | 41.1 | | 2X2 | .063 | 1.60 | .437 | 11.10 | 76.4 | 51.2 | | 3X3 | .054 | 1.37 | .279 | 7.09 | 70.1 | 56.7 | | 4X4 | .063 | 1.60 | .187 | 4.75 | 56.0 | 104.8 | | 4X4 | .047 | 1.19 | .203 | 5.16 | 65.9 | 57.6 | | 5X5 | .041 | 1.04 | .159 | 4.04 | 63.2 | 54.9 | | 6X6 | .035 | .89 | .132 | 3.35 | 62.7 | 48.1 | | 8X8 | .028 | .71 | .097 | 2.46 | 60.2 | 41.1 | | 10X10 | .025 | .64 | .075 | 1.91 | 56.3 | 41.2 | | 10X10 | .020 | .51 | .080 | 2.03 | 64.0 | 26.1 | | 12X12 | .023 | .584 | .060 | 1.52 | 51.8 | 42.2 | | 12X12 | .020 | .508 | .063 | 1.60 | 57.2 | 31.6 | | 14X14 | .023 | .584 | .048 | 1.22 | 45.2 | 49.8 | | 14X14 | .020 | .508 | .051 | 1.30 | 51.0 | 37.2 | | 16X16 | .018 | .457 | .0445 | 1.13 | 50.7 | 34.5 | | 18X18 | .017 | .432 | .0386 | .98 | 48.3 | 34.8 | | 20X20 | .020 | .508 | .0300 | .76 | 36.0 | 55.2 | | 20X20 | .016 | .406 | .0340 | .86 | 46.2 | 34.4 | | 24X24 | .014 | .356 | .0277 | .70 | 44.2 | 31.8 | | 30X30 | .013 | .330 | .0203 | .52 | 37.1 | 34.8 | | 30X30 | .012 | .305 | .0213 | .54 | 40.8 | 29.4 | | 30X30 | .009 | .229 | .0243 | .62 | 53.1 | 16.1 | | 35X35 | .011 | .279 | .0176 | .45 | 37.9 | 29.0 | | 40X40 | .010 | .254 | .0150 | .38 | 36.0 | 27.6 | | 50X50 | .009 | .229 | .0110 | .28 | 30.3 | 28.4 | | 50X50 | .008 | .203 | .0120 | .31 | 36.0 | 22.1 | | 60X60 | .0075 | .191 | .0092 | .23 | 30.5 | 23.7 | | 60X60 | .007 | .178 | .0097 | .25 | 33.9 | 20.4 | | 70X70 | .0065 | .165 | .0078 | .20 | 29.8 | 20.8 | | 80X80 | .0065 | .165 | .0060 | .15 | 23.0 | 23.2 | | 80X80 | .0055 | .140 | .0070 | .18 | 31.4 | 16.9 | | 90X90 | .005 | .127 | .0061 | .16 | 30.1 | 15.8 | | 100X100 | .0045 | .114 | .0055 | .14 | 30.3 | 14.2 | | 100X100 | .004 | .102 | .0060 | .15 | 36.0 | 11.0 | | 100X100 | .0035 | .089 | .0065 | .17 | 42.3 | 8.3 | | 110X110 | .0040 | .1016 | .0051 | .1295 | 30.7 | 12.4 | | 120X120 | .0037 | .0940 | .0064 | .1168 | 30.7 | 11.6 | | 150X150 | .0026 | .0660 | .0041 | .1041 | 37.4 | 7.1 | | 160X160 | .0025 | .0635 | .0038 | .0965 | 36.4 | 5.94 | | 180X180 | .0023 | .0584 | .0033 | .0838 | 34.7 | 6.7 | | 200X200 | .0021 | .0533 | .0029 | .0737 | 33.6 | 6.2 | | 250X250 | .0016 | .0406 | .0024 | .0610 | 36.0 | 4.4 | | 270X270 | .0016 | .0406 | .0021 | .0533 | 32.2 | 4.7 | | 300X300 | .0051 | .0381 | .0018 | .0457 | 29.7 | 3.04 | | 325X325 | .0014 | .0356 | .0017 | .0432 | 30.0 | 4.40 | | 400X400 | .0010 | .0254 | .0015 | .370 | 36.0 | 3.3 | | 500X500 | .0010 | .0254 | .0010 | .0254 | 25.0 | 3.8 | | 635X635 | .0008 | .0203 | .0008 | .0203 | 25.0 | 2.63 |
|
| |
| Chemical composition of stainless steel wire: | | Grade | Chemical Composition(%) | | | C | Si | Mn | P | S | Ni | Cr | Mo | | 304 | =0.08 | =1.00 | =2.00 | =0.045 | =0.030 | 8.00~10.50 | 18.00~20.00 | - | | 304H | >0.08 | =1.00 | =2.00 | =0.045 | =0.030 | 8.00~10.50 | 18.00~20.00 | - | | 304L | =0.030 | =1.00 | =2.00 | =0.045 | =0.030 | 9.00~13.50 | 18.00~20.00 | - | | 316 | =0.045 | =1.00 | =2.00 | =0.045 | =0.030 | 10.00~14.00 | 10.00~18.00 | 2.00~3.00 | | 316L | =0.030 | =1.00 | =2.00 | =0.045 | =0.030 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 | | 430 | =0.12 | =0.75 | =1.00 | =0.040 | =0.030 | =0.60 | 16.00~18.00 | - | | 430A | =0.06 | =0.50 | =0.50 | =0.030 | =0.50 | =0.25 | 14.00~17.00 | - |
|
| |
| Sizes of Stainless Steel Wire: | | Wire Diameter(mm) | Tolerance(mm) | Max. Deviation Tolerance(mm) | | 0.020-0.049 | +0.002
-0.001 | 0.001 | | 0.050-0.074 | 0.002
| 0.002 | | 0.075-0.089 | 0.002 | 0.002 | | 0.090-0.109 | +0.003
-0.002 | 0.002 | | 0.110-0.169 | 0.003 | 0.003 | | 0.170-0.184 | 0.004 | 0.004 | | 0.185-0.199 | 0.004 | 0.004 | | 0.200-0.299 | 0.005 | 0.005 | | 0.300-0.310 | 0.006 | 0.006 | | 0.320-0.499 | 0.006 | 0.006 |
|
